Matrix H7XI-01 User Manual

82

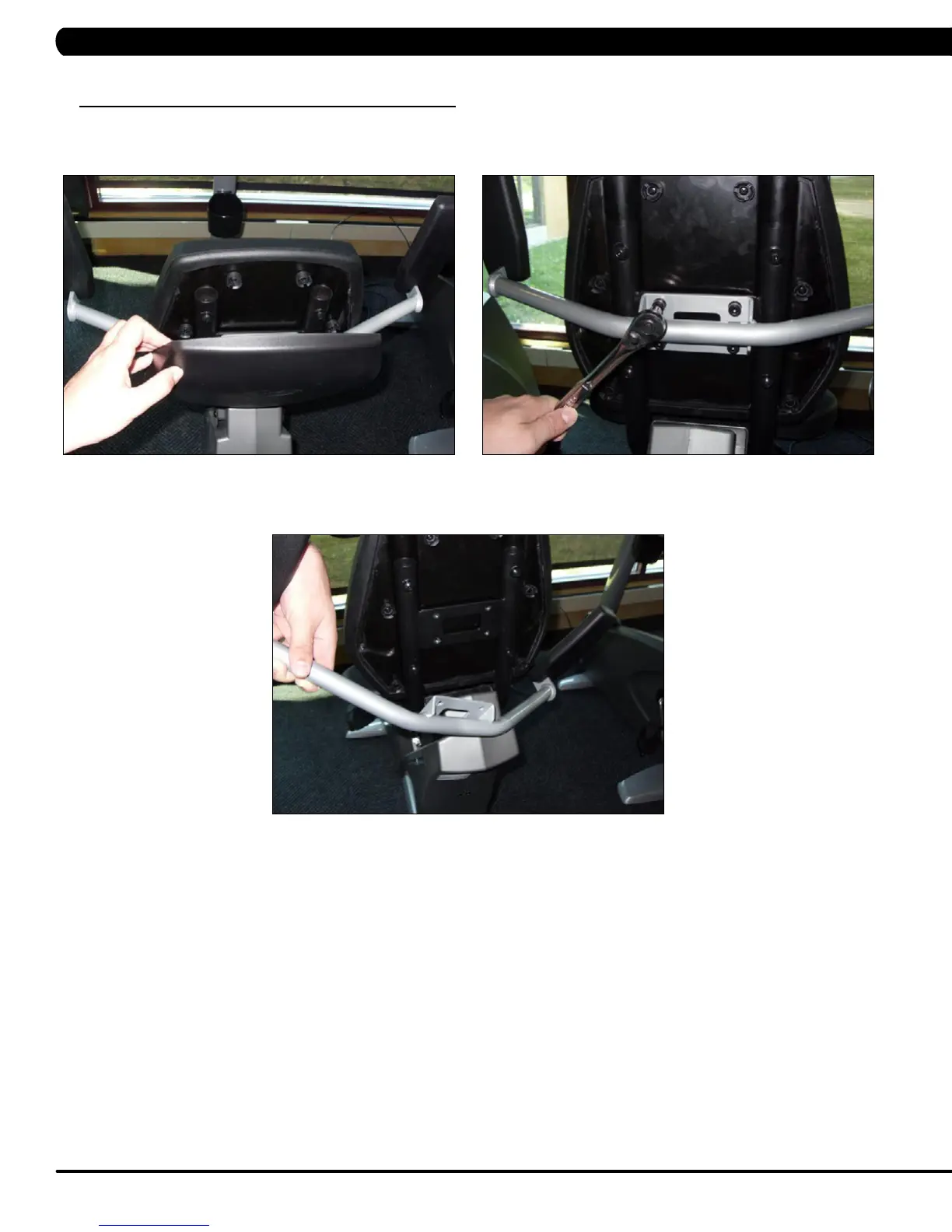

9.9 STATIONARY HANDLEBAR REPLACEMENT
1) Using the tips of your fingers, remove the back cover of the back pad. The back cover is held on by plastic snap clips, and if pressure is
applied, the cover will pop off (Figure A).
2) Remove the 4 bolts holding the stationary handlebar assembly to the seat frame (Figure B).
3) Remove the stationary handlebar (Figure C).
4) Reverse Steps 1-3 to install a new stationary handlebar.
FIGURE A
FIGURE B
FIGURE C
CHAPTER 9: PART REPLACEMENT GUIDE
