9.14 BATTERY REPLACEMENT
1) Remove the left side rear shroud as outlined in Section 9.11.

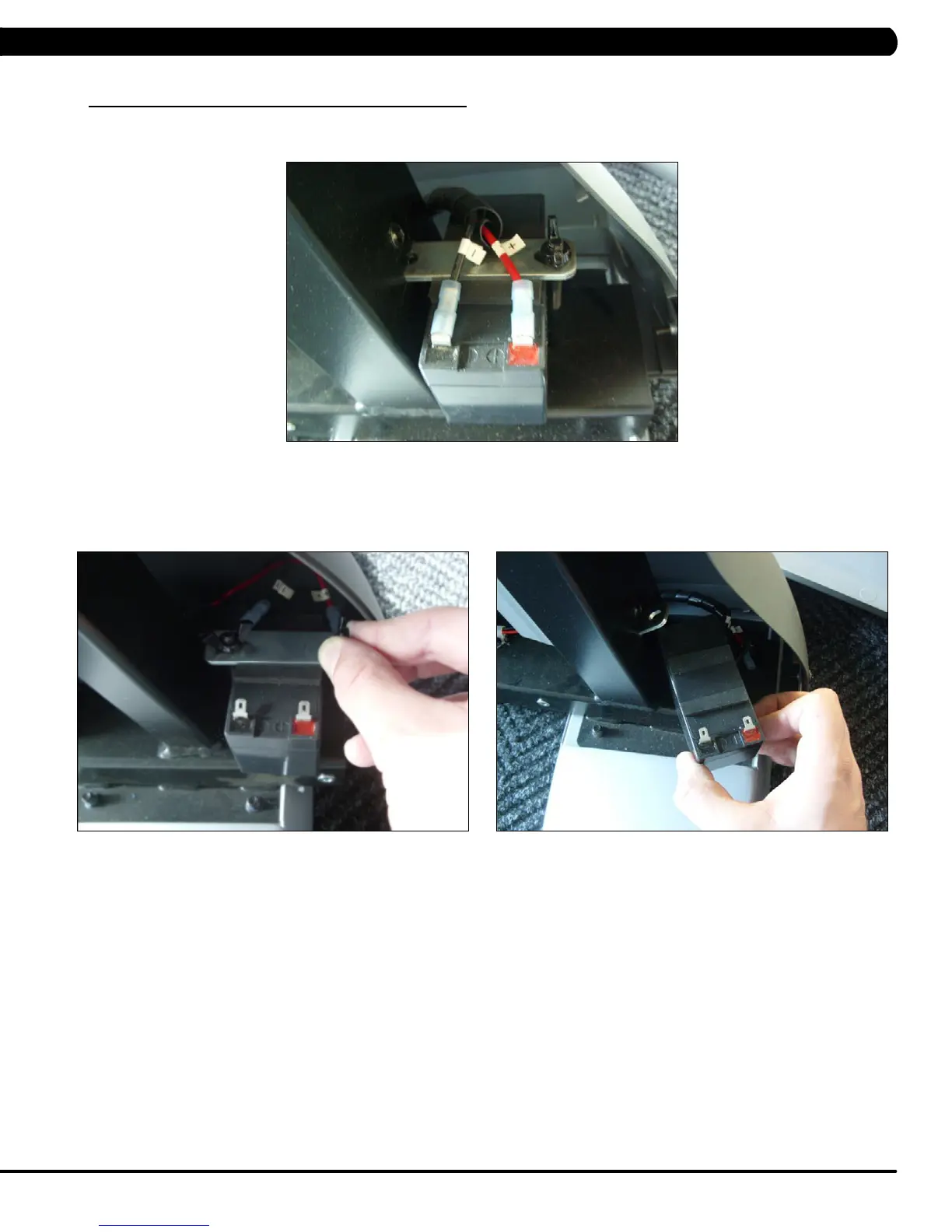

2) Disconnect the 2 wires from the battery (Figure A).
3) Remove the 2 wing nuts on the battery bracket (Figure B).
4) Swivel the battery bracket out of the way and remove the battery (Figure C).
5) Reverse Steps 1-4 to install a new battery.
FIGURE CFIGURE B
FIGURE A
