Matrix H7XI-01 User Manual

95
9.21 FRONT STABILIZER REPLACEMENT

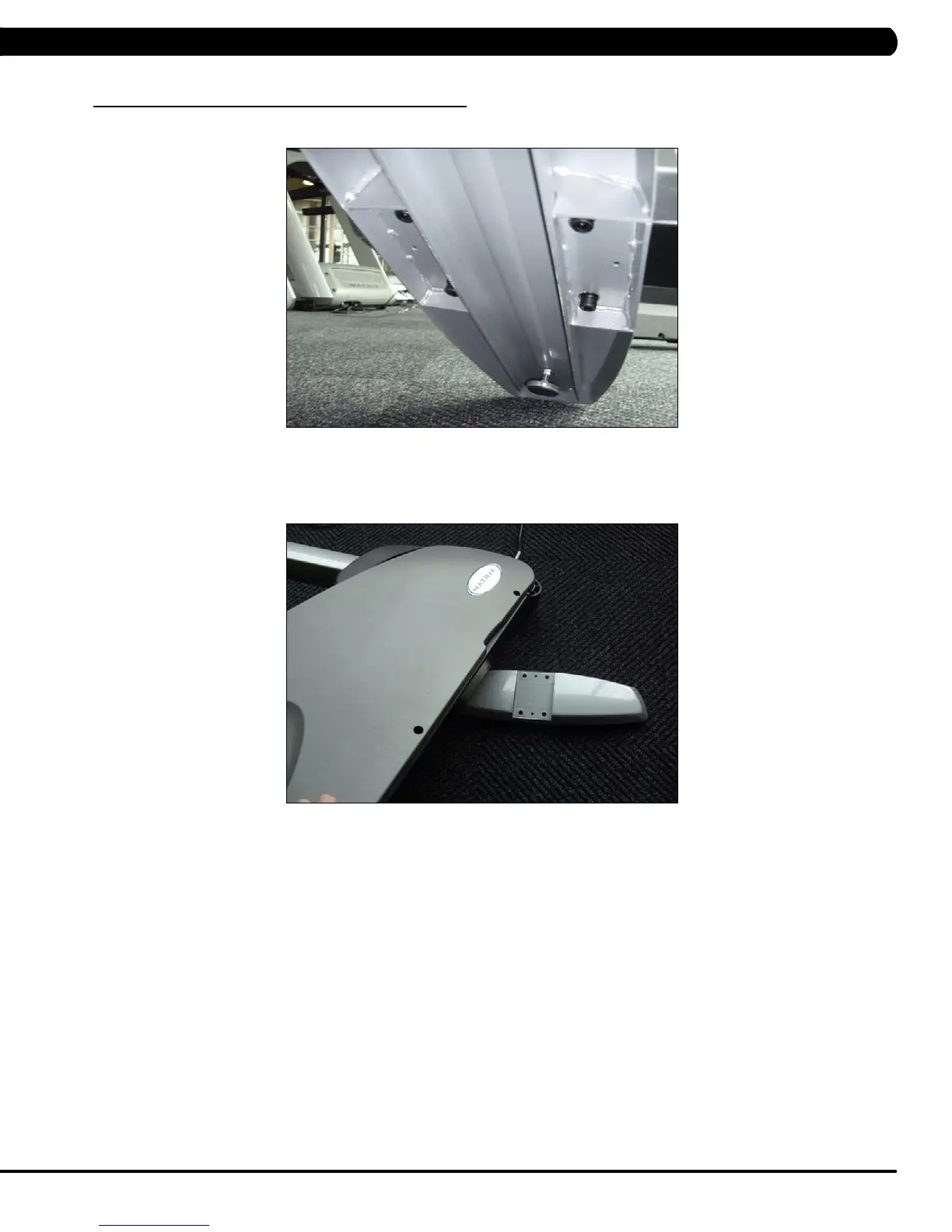

1) Lean the bike to one side and remove the 4 screws holding the front stabilizer to the frame (Figure A).
2) Remove the front stabilizer (Figure B).
3) Reverse Steps 1-2 to install a new front stabilizer.
FIGURE A
FIGURE B
CHAPTER 9: PART REPLACEMENT GUIDE
