92

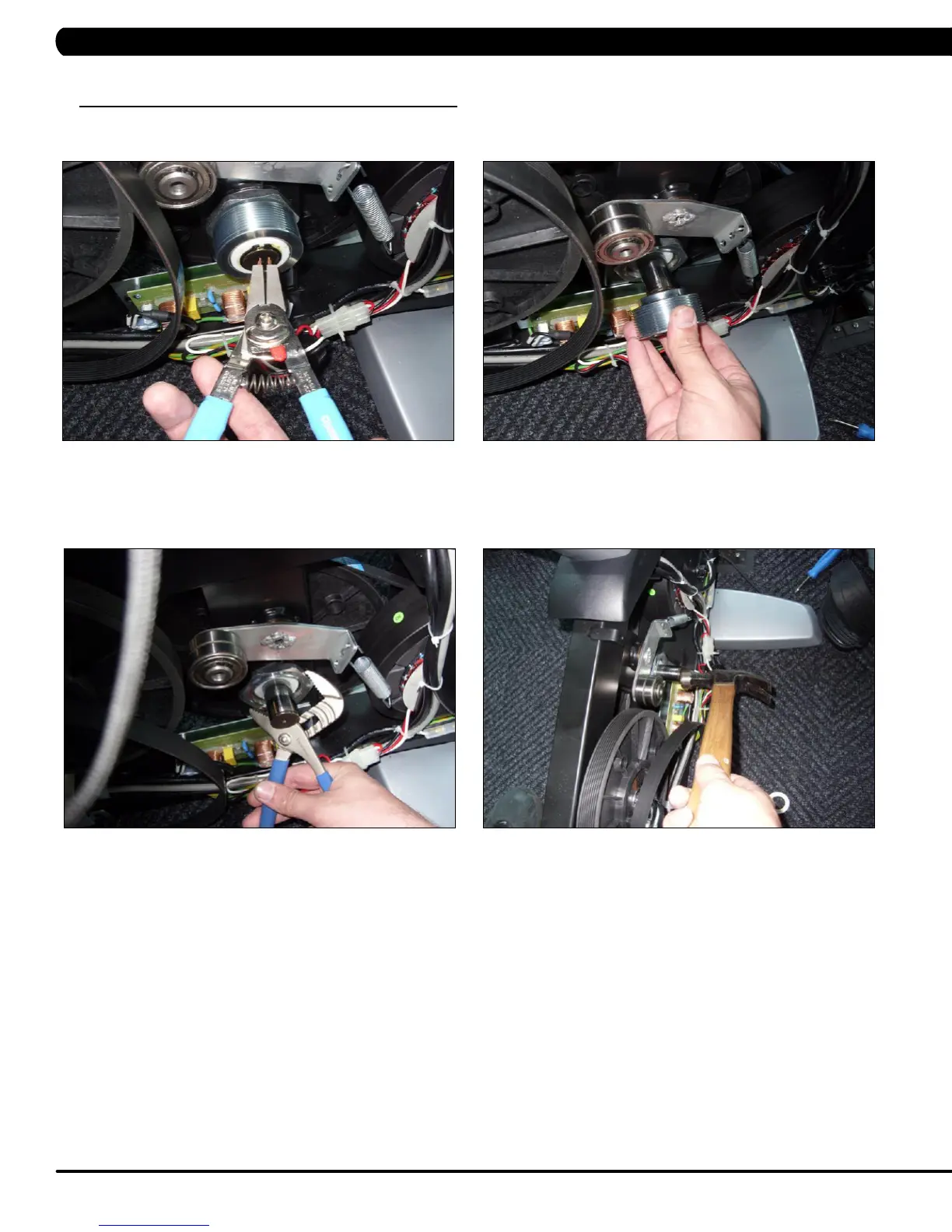

9.18 PULLEY AXLE SET REPLACEMENT - CONTINUED
FIGURE E
FIGURE D
FIGURE F FIGURE G
5) Remove the C-clip holding the bearing in place on the right side of the frame (Figure D).
6) Remove the bearing (Figure E).
7) Remove the large nut holding in the pulley axle assembly with a large channel lock pliers or a pipe wrench (Figure F).
8) Once the large nut is removed, the pulley axle set can be hammered out of the frame (Figure G), it should be removed from the user's left
side.
9) Reverse Steps 1-8 to install a new pulley axle set. NOTE: Be sure to re-tension the generator belt to 85 lbs.
10) Test the bike for function as outlined in Section 9.22.
CHAPTER 9: PART REPLACEMENT GUIDE
