Matrix MX-T3x Service Manual

46
7.6 Front roller removal
1. Remove shrouds as outlined in section 8.1
2. Using a 5mm hex-tip tools , remove the tension set.
(Figure A and B)
3. Remove the front roller mounting screws using
8mm hex-tip tools (Figure C and D)
4. Remove the drive belt from the front roller and
remove the roller from the running belt
(Figure E)

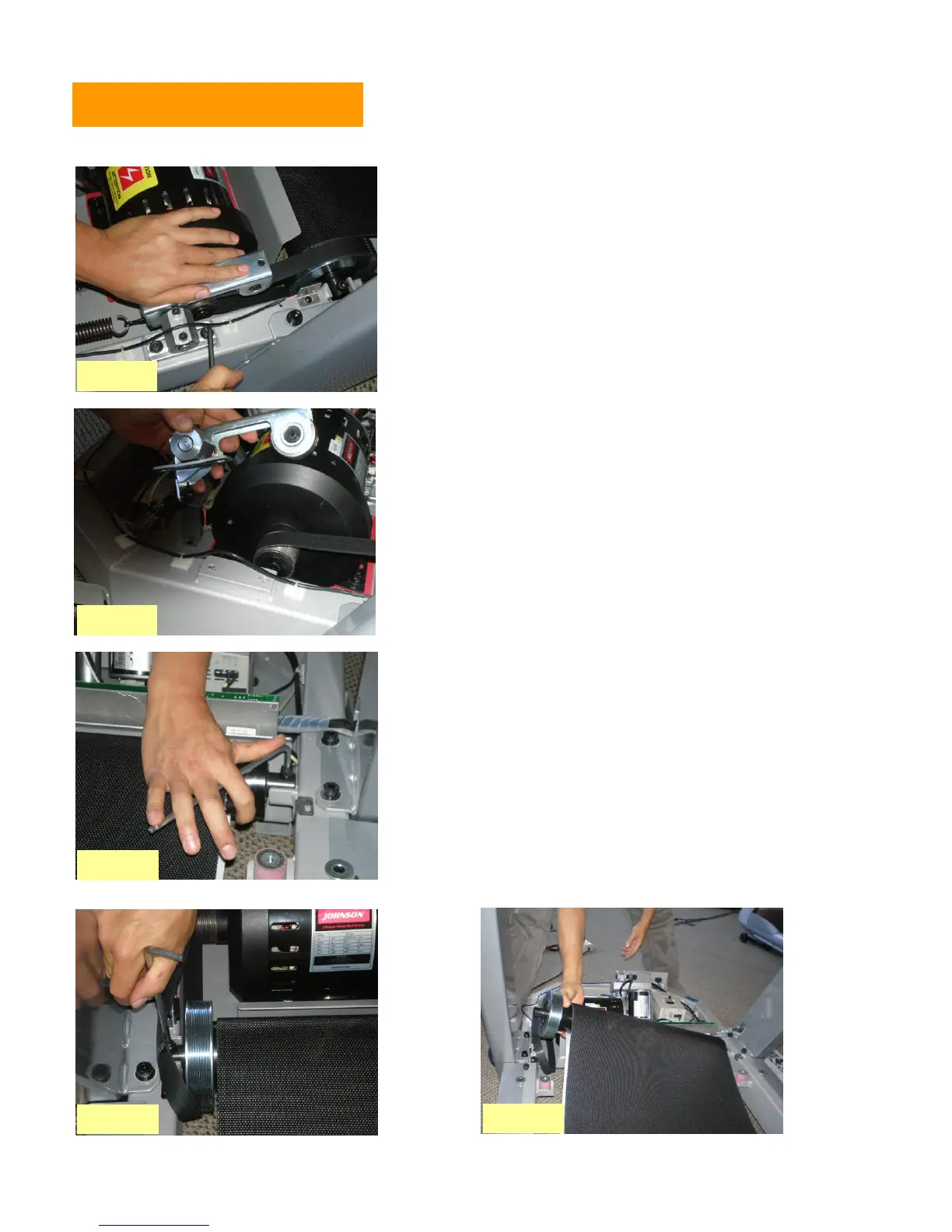

Figure A
Figure B
Figure C
Figure D
Figure E
