7.10 Motor removal
1. Remove the front shroud as outlined in
section 8.1
2. Release drive belt tensioner as described in
section 8.5
3. Cut any wire ties (Figure A)
3. Disconnect the motor power cable from the
inverter (Figure B)
4. Using the 8mm Allen wrench, remove 4 motor
mounting screws (Figure C)
5. Lift the motor away from the treadmill
(Figure D)
6. When reinstalling the motor, make sure the
red vibration pad is in place.

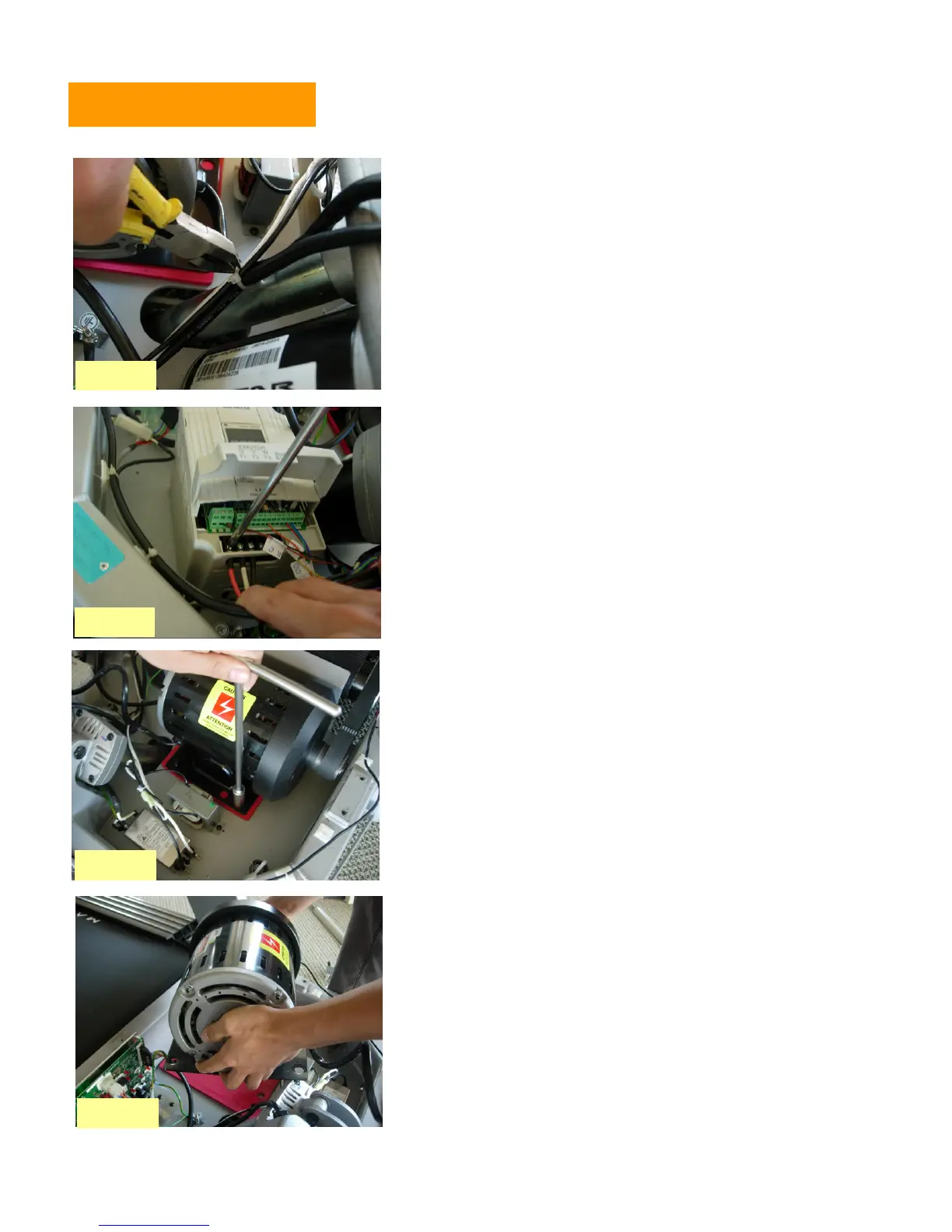

Figure A
