7.8 Incline power board removal (MCB)
1. Remove shroud as outlined in section 8.1
2. Disconnect connect wires from the MCB
seven connections total (Figure A), not include
the two inverter power wire.
3. Remove two MCB mounting screws using
screwdriver (Figure B)
4. Disconnect the inverter power wire from MCB
two connections (Figure C)

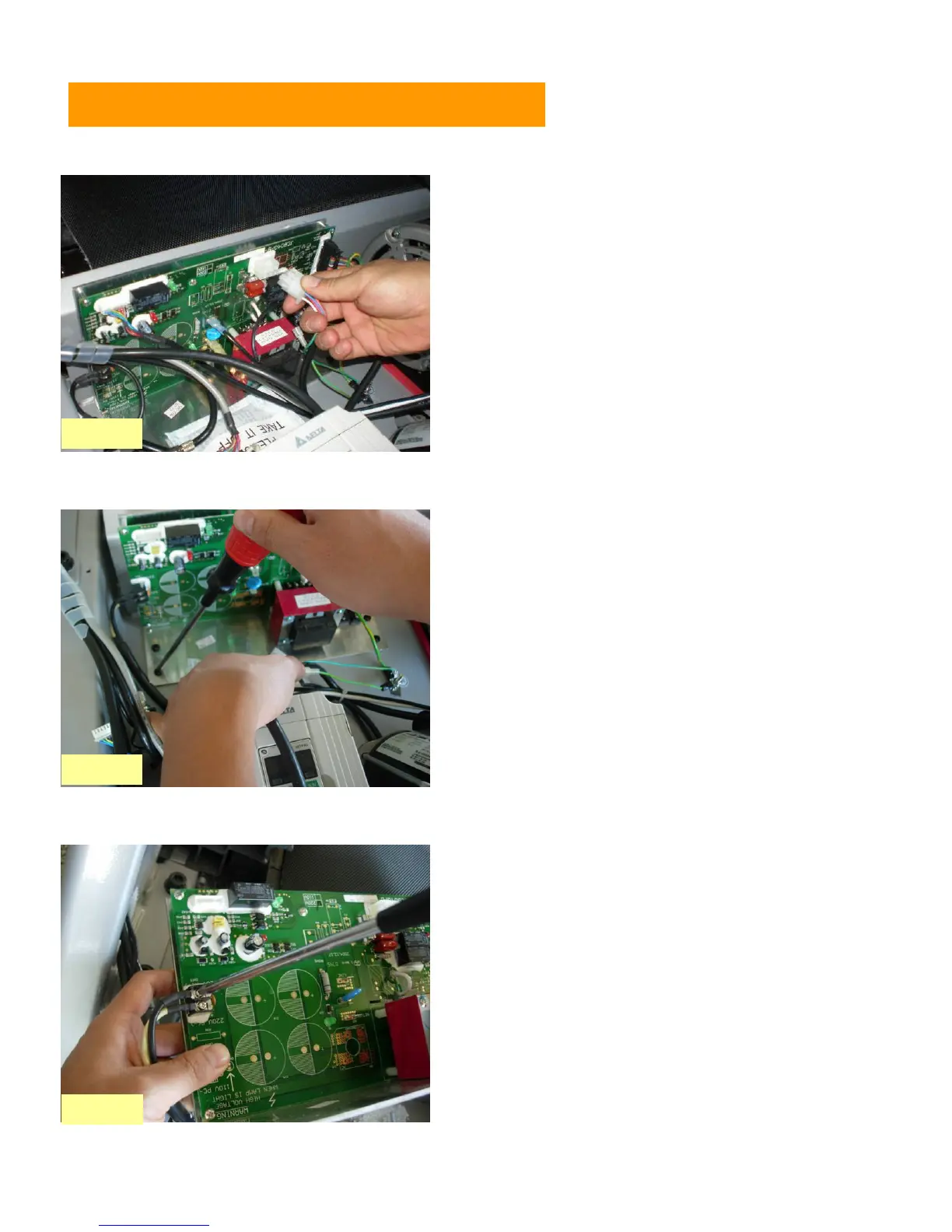

Figure A
Figure B
Figure C
