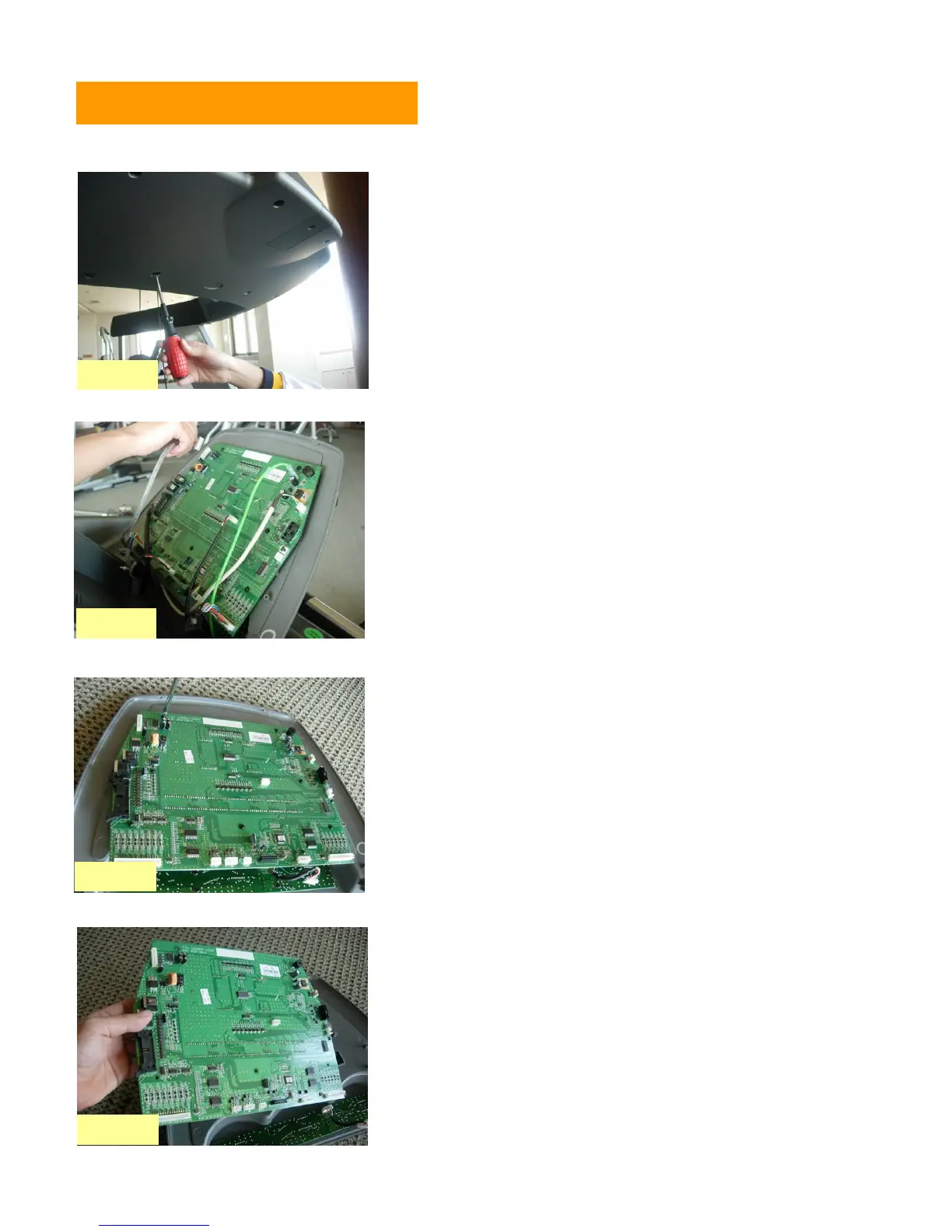

7.13 PCB replacement
1. Remove the two screws from underneath the console.
(Figure A)
2. Disconnect the wires from the PCB (Figure B)
3. Remove the seven screw from PCB (Figure C and D)
Figure A
Figure B
Figure C
Figure D
