Matrix r7xi-02 User Manual

122
10.3 ASSEMBLY INSTRUCTIONS - CONTINUED
CHAPTER 10: BIKE SPECIFICATIONS AND ASSEMBLY GUIDE

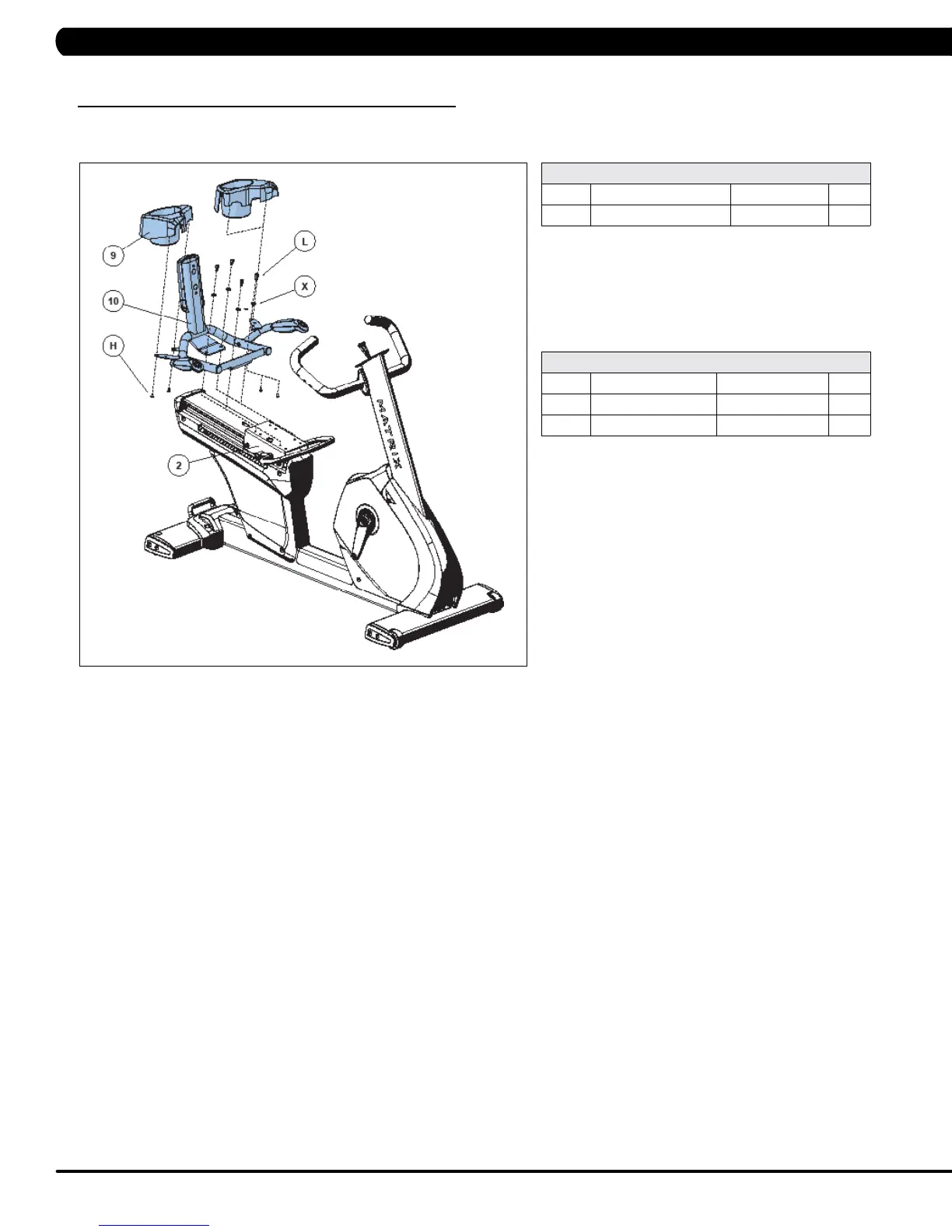

STEP 4
A Open PINK HARDWARE BAG.
B Attach the WATER BOTTLE HOLDERS (9)
to the SEAT FRAME (10) using 4 BOLTS
(H).
BLUE HARDWARE BAG
PART TYPE DESCRIPTION QTY
I SOCKET HEAD BOLT M8X15L 4
J SPRING WASHER  4
PINK HARDWARE BAG
PART TYPE DESCRIPTION QTY
H PHILLIPS HEAD BOLT M5X12L 4
C Open BLUE HARDWARE BAG.
D Attach the SEAT FRAME (10) to the MAIN
FRAME (2) using 4 BOLTS (I) and 4
SPRING WASHERS (J).
