10.7 NETPULSE & AM SETTING UP SOP
EXAMPLE 1 - CEILING INSTALLATION
EXAMPLE 2 - WALL INSTALLATION
With this type of coverage pattern it is very important to mount the AP so that the base of the coverage cone covers the desired wireless clients.
This can be accomplished by mounting the AP to the ceiling above the clients with the face of the AP (the side with the LED lights) pointed down
with the LED lights) pointed at the clients. Do not mount the AP level with the clients and the face pointed up at the ceiling as this will not achieve
the desired coverage pattern. See diagrams below. Examples 1 and 2 show proper mounting placements. Example 3 illustrates a situation to
avoid.

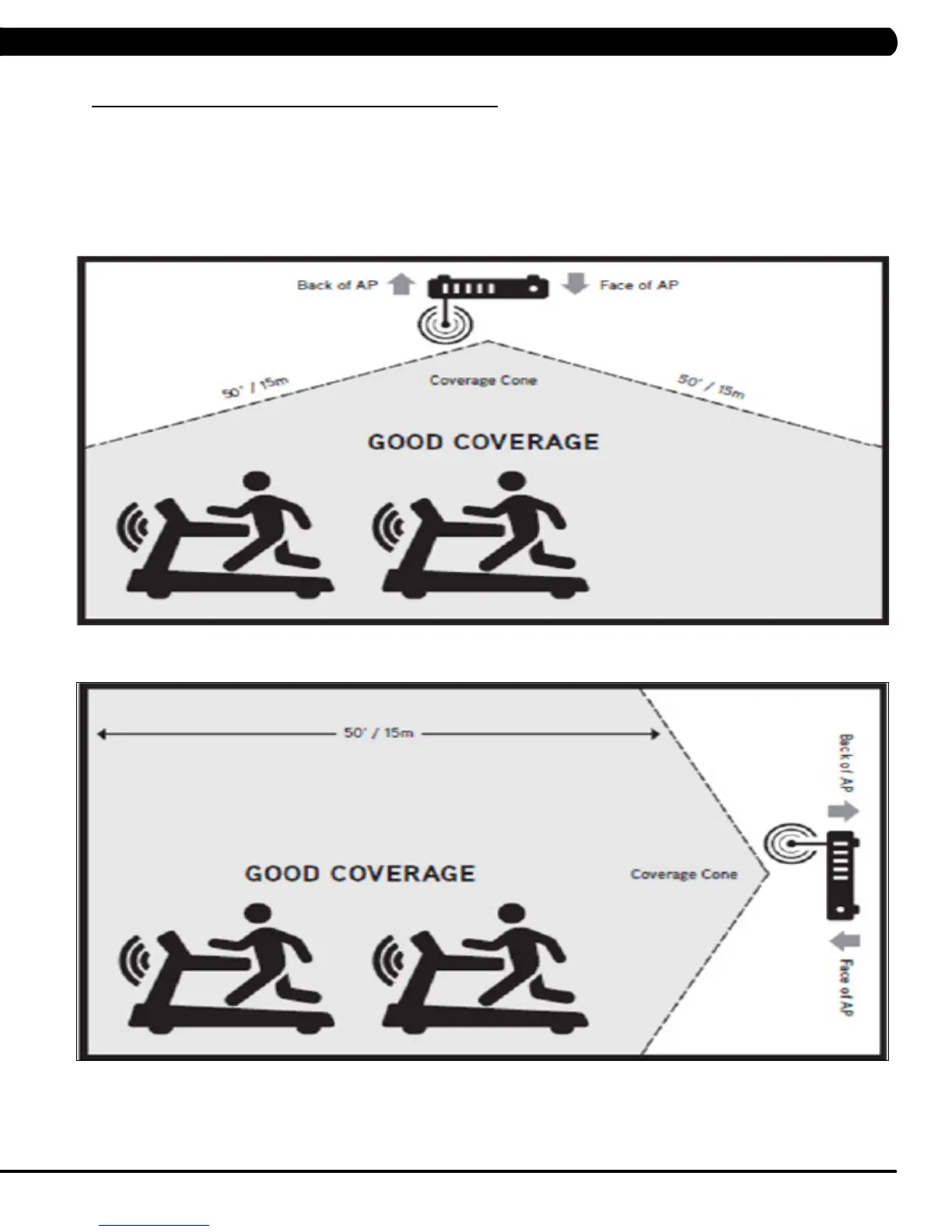

Examples of GOOD AP coverage
