Matrix SATATYA Devices Manual 105

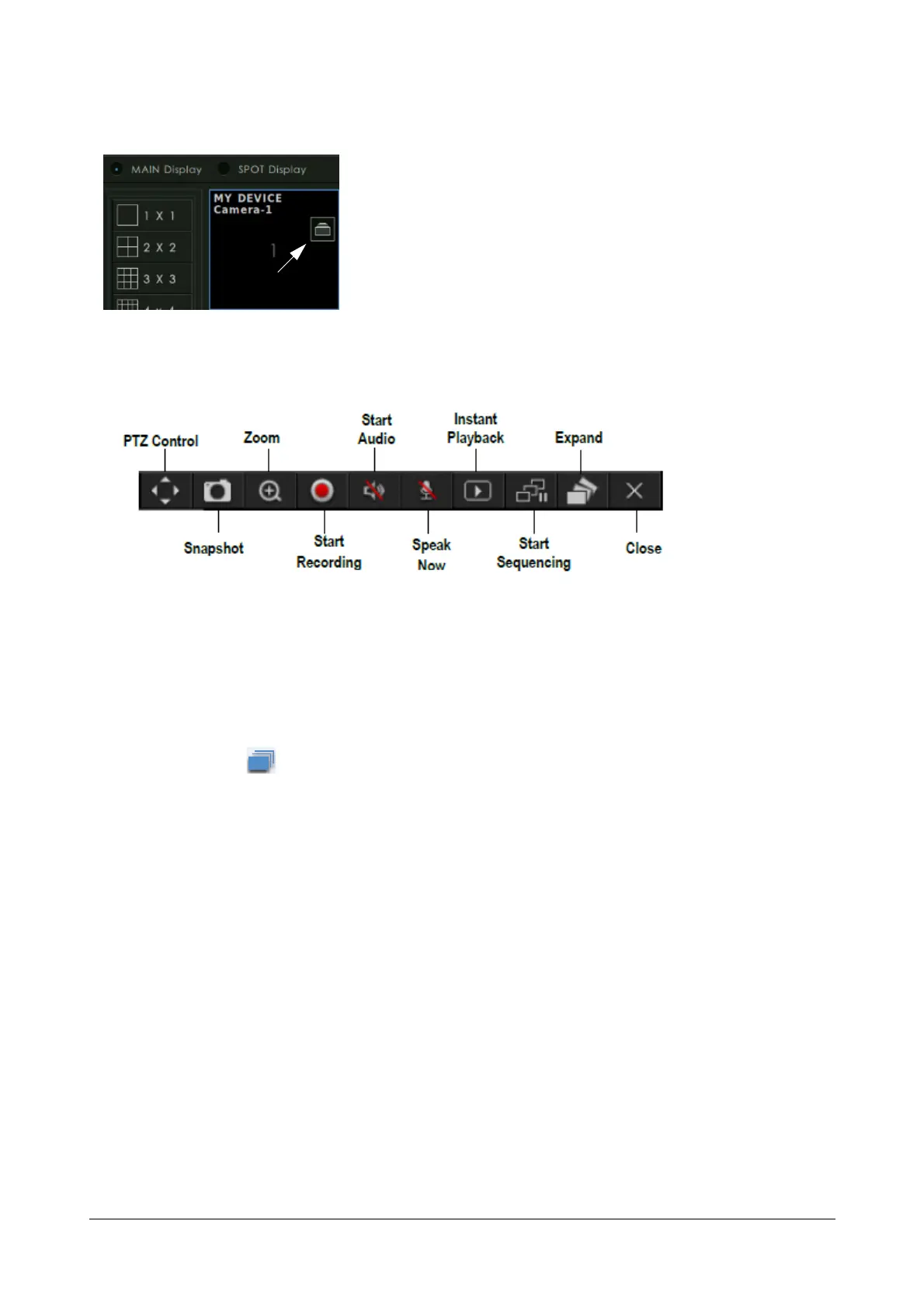

Click on Save button to commit the changes. After the cameras are assigned to the window sequencing the
configure symbol changes as shown below.
Now click on Apply. The camera sequencing will start on the monitor in the configured window (here window1)
provided the sequencing checkbox is enabled. Also you can start the sequence from the live toolbar by clicking
Start Sequencing.
Assume that some camera audio is ON; now when window sequencing is configured at any window, then in
window sequencing audio will not be turned ON. Now if in window sequencing that particular camera is in view and
if user stops sequencing, then the camera audio will not get resumed again. The user has to manually start the
audio in this case.
From the live toolbar click Expand to view the assigned cameras on different windows. To view cameras in a single
window click Collapse button from the toolbar.
