320 Matrix SATATYA Devices Manual

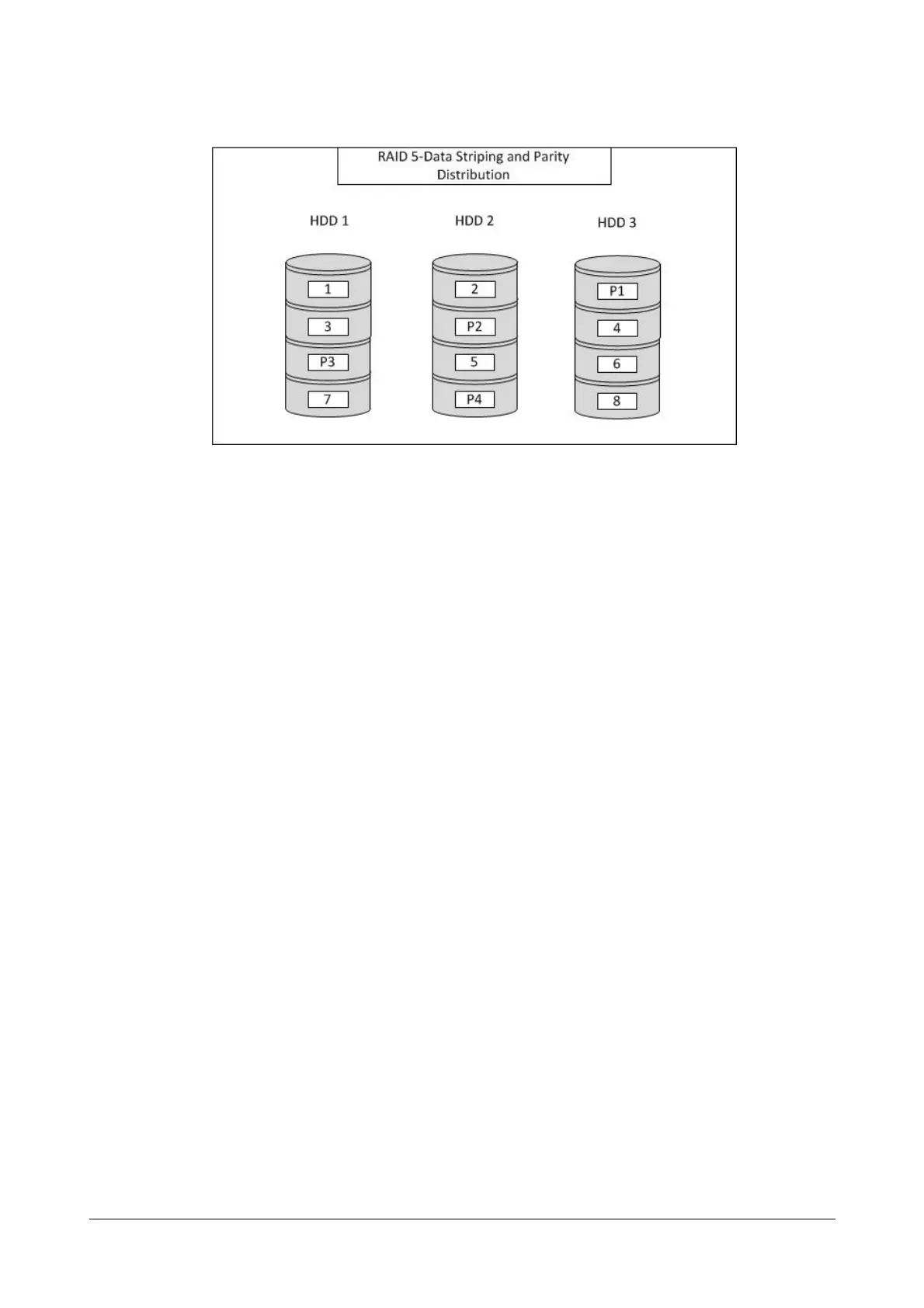

Total Logical Volume Calculation
If Volume of HDD1= V1, HDD2= V2 and HDD3= V3,
then Logical Volume= (Number of HDDs -1) X Minimum Disk Size.
Suppose HDD1= 2TB, HDD2= 1TB and HDD3= 1TB, then Logical Volume= (3-1)X1= 2TB
RAID 10
Minimum 4 HDDs are required. It is the combination of RAID 1 and RAID 0.
Out of the four disks, the first two disks HDD1 and HDD2 will contain mirrored data. The second two disks, HDD3
and HDD4 will also contain mirrored data.
The combination of (HDD1 and HDD2) and (HDD3 and HDD4) will contain striped data as shown in the screen
below.
