Matrix VS-S42 User Manual

10

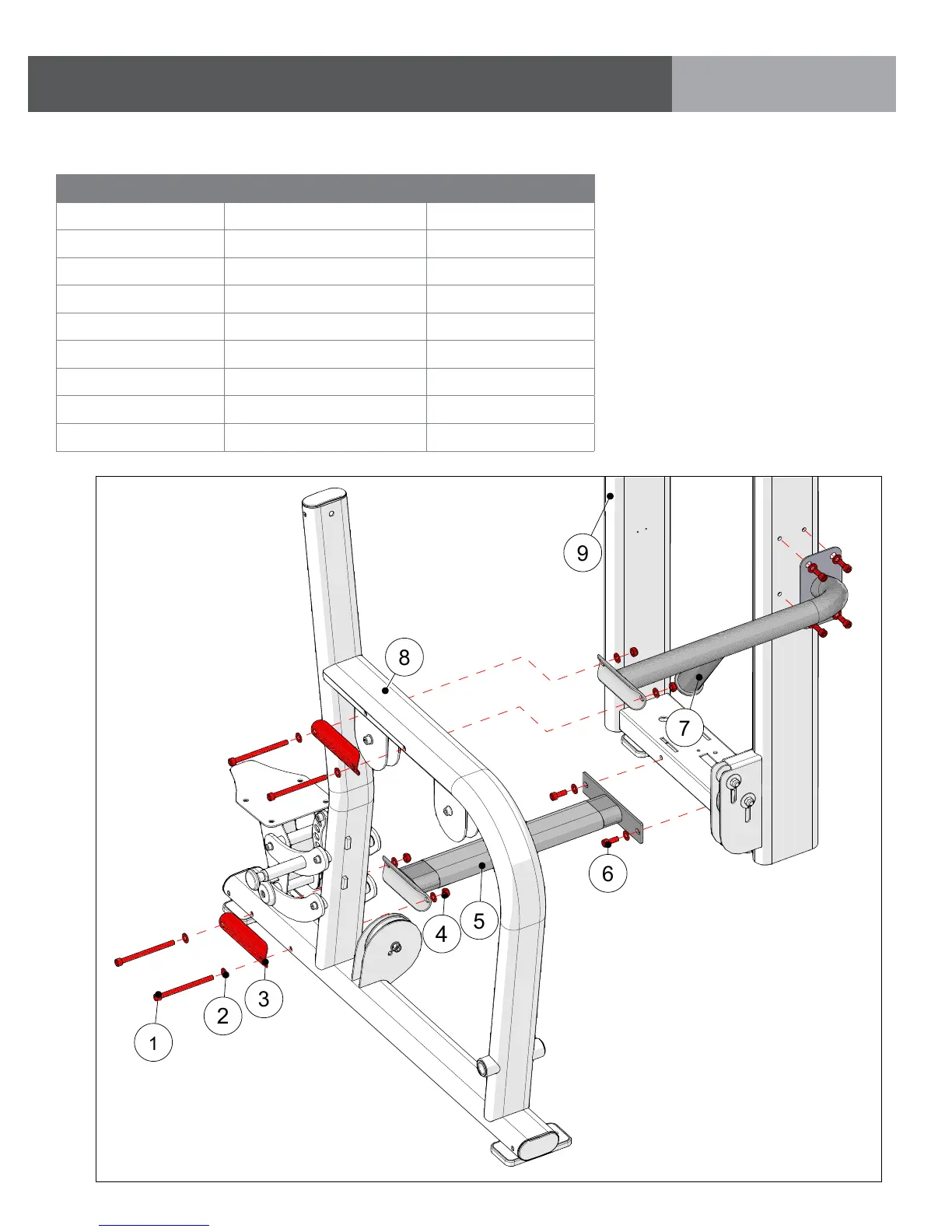

PART 1: STACK & USER FRAME ASSEMBLY
STEP 1 | WEIGHT STACK TO USER FRAME INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
1 M10 X 125L SHC 4
2 M10 Flat Washer 14
3 Wide Cupped Flange 2
4 M10 Nylock Nut 4
5 Lower Connecting Tube 1
6 M10 X 20L SHC 6
7 Upper Connecting Tube 1
8 User Frame 1
9 Weight Stack Frame 1
After weight plates have
been assembled, torque
M10 frame hardware to: 77
N-m/57 ft-lbs.
ASSEMBLY
9
6
5
4
3
2
1
7
8
