ASSEMBLY

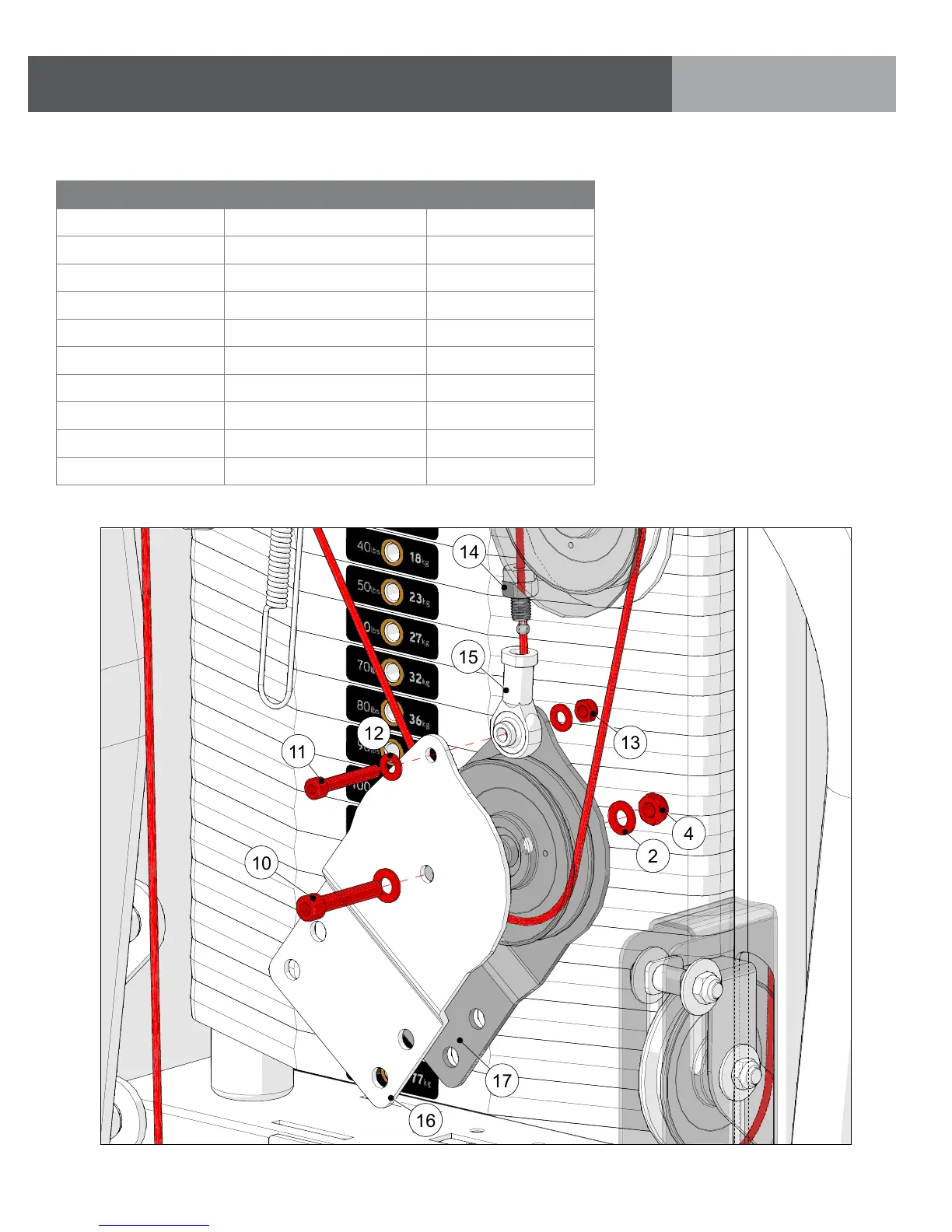

STEP 2 | CABLE ASSEMBLY INSTRUCTIONS & NOTES
PART 2: CABLE ASSEMBLY
ID DESCRIPTION QUANTITY
2 M10 Flat Washer 2
4 M10 Nylock Nut 1
10 M10 X 50L SHC 1
11 M8 X 50L SHC 1
12 M8 Flat Washer 2
13 M8 Nylock Nut 1
14 Cable 1
15 Tie Rod End 1
16 Left side Mounting Plate 1
17 Right side Mounting Plate 1
Torque M10 hardware to:
77N-m/57 ft-lbs.
Torque M8 hardware to:
39N-m/29 ft-lbs.
16
4
2
17
13
15
12
14
10
11
