11

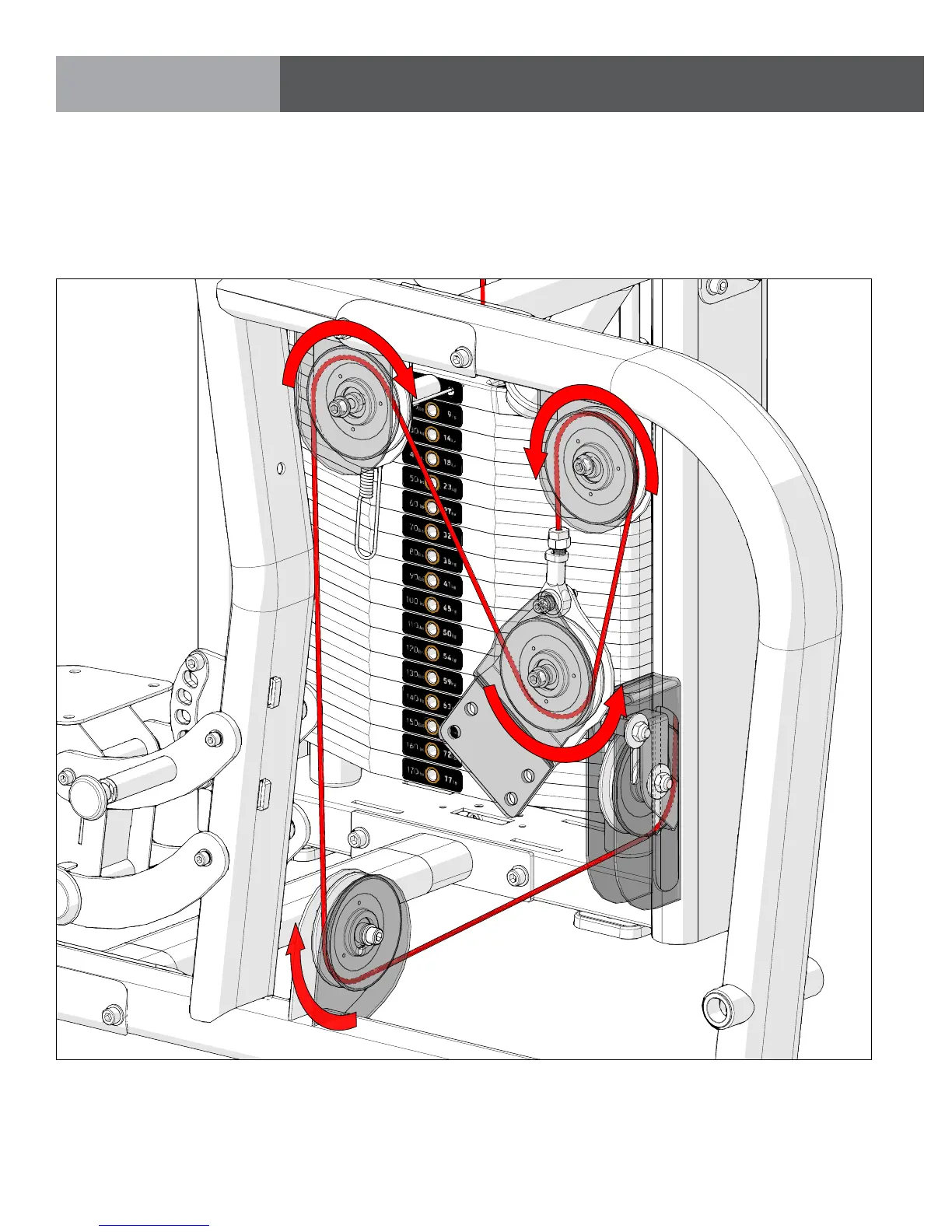

Cable must be routed as shown below.
ASSEMBLY
STEP 1 | CABLE ROUTING & ASSEMBLY INSTRUCTIONS & NOTES
PART 2: CABLE ASSEMBLY
