ASSEMBLY

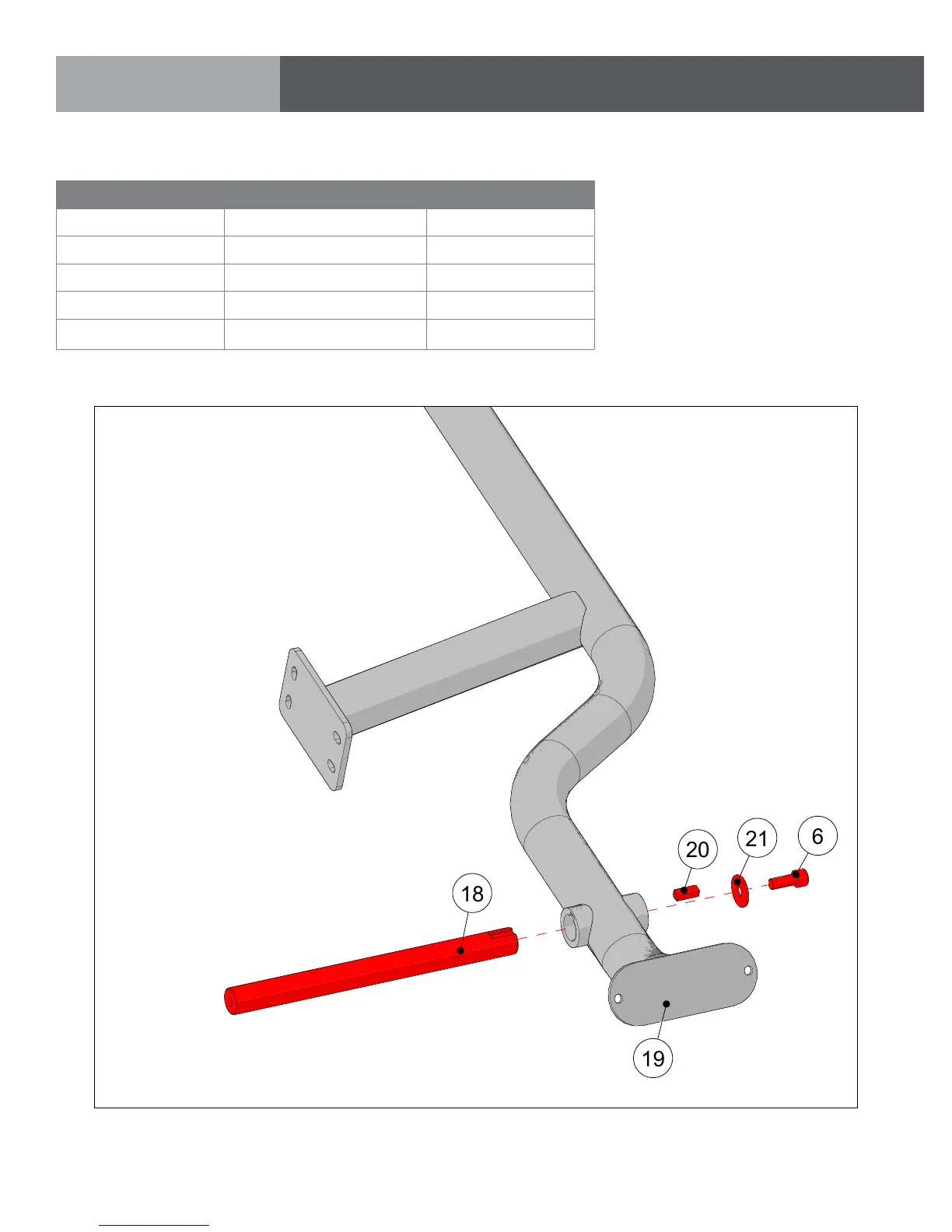

STEP 1 | RIGHT ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANTITY
6 M10 X 20L SHC 1
18 Axle 1
19 Right Arm Assembly 1
20 Key (7 X 8 mm) 1
21
M10 Flat Washer (Ø35 mm)
1
Torque hardware to: 77 N-m/57 ft-lbs.
