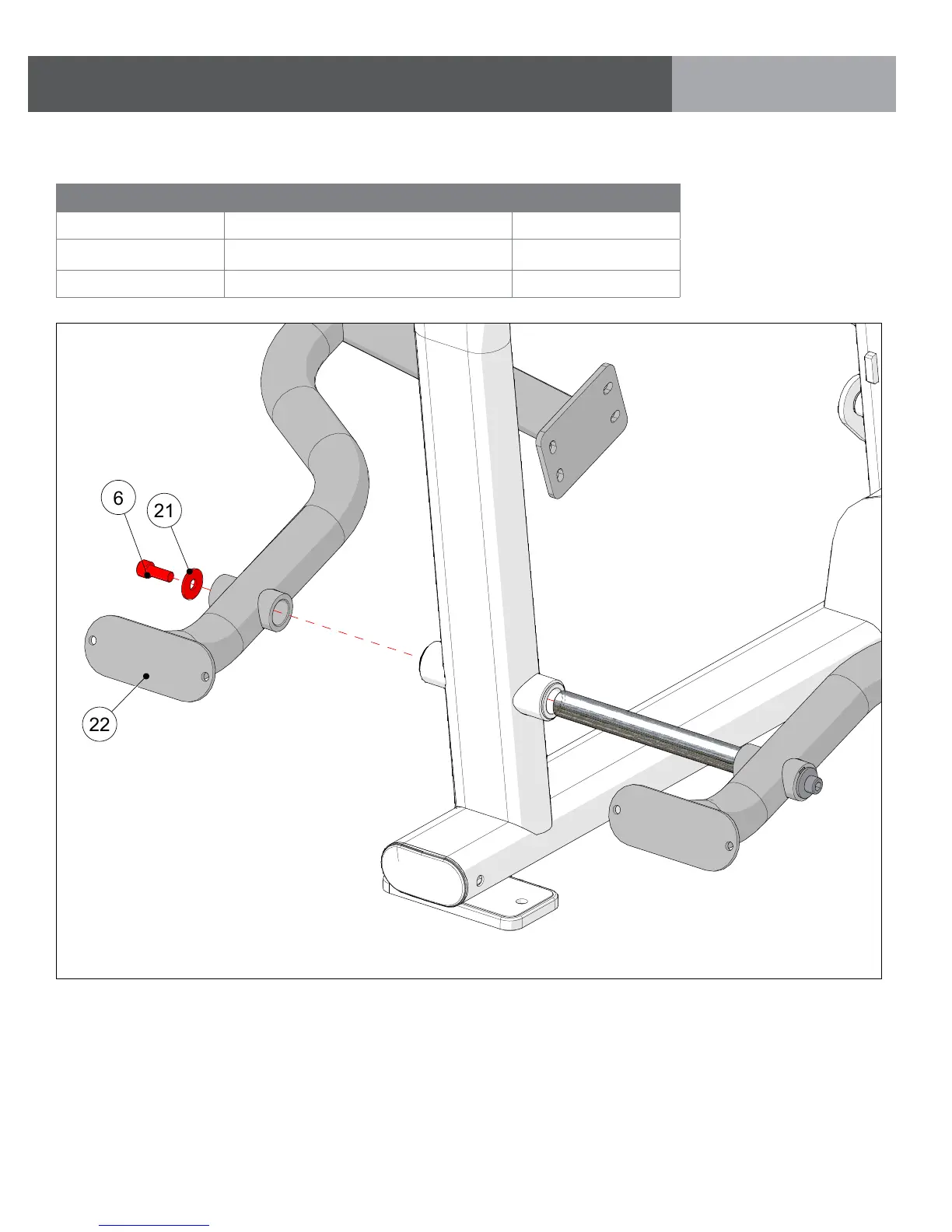

PART 3: ARM ASSEMBLY
STEP 2 | LEFT ARM ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
6 M10 X 20L SHC 1
21
M10 Flat Washer (Ø35 mm)
1
22 Left Arm Assembly 1
ASSEMBLY
Torque hardware to: 77 N-m/57 ft-lbs.
6
21
22
