Matrix VS-S42 User Manual

15
ASSEMBLY

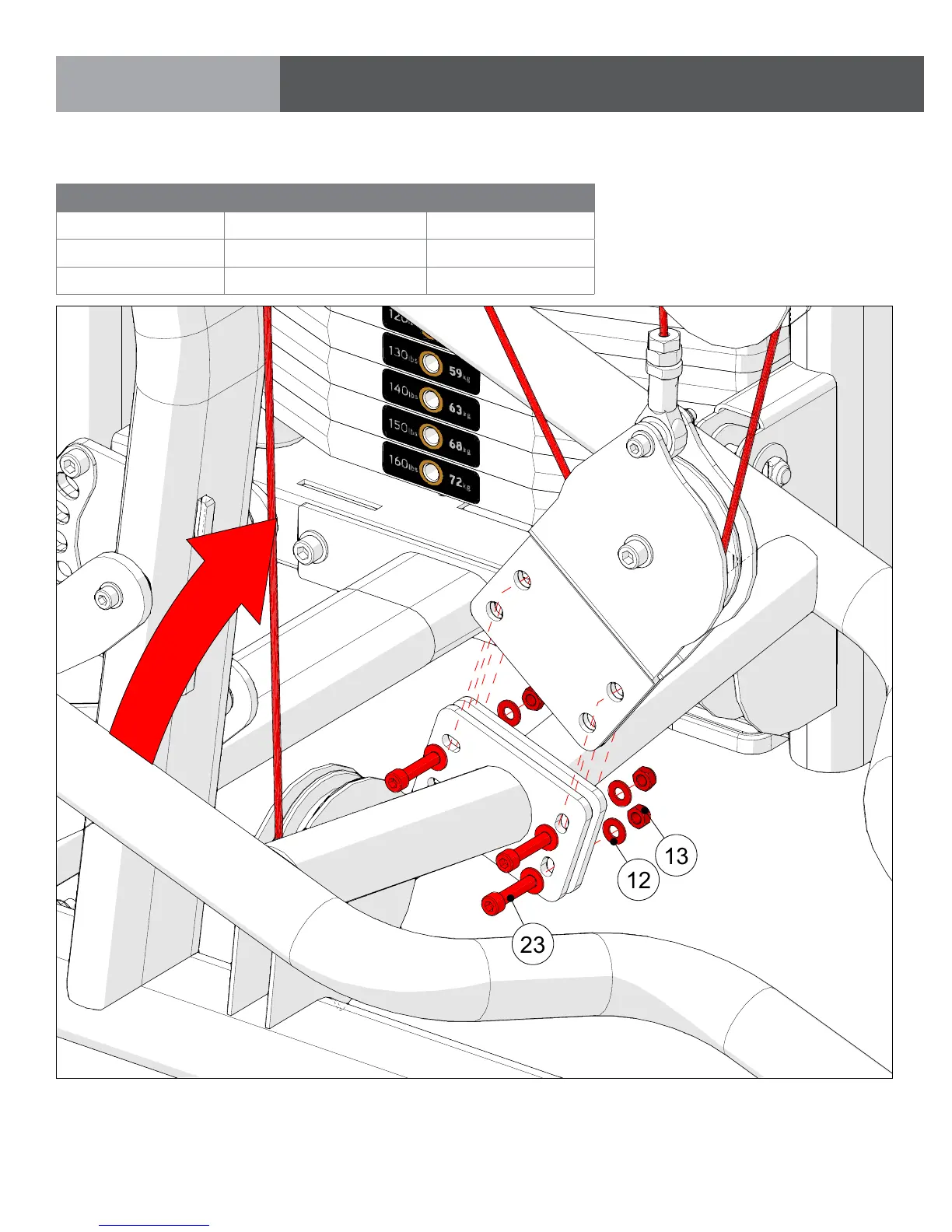

STEP 3 | ARM ASSEMBLY INSTRUCTIONS & NOTES
PART 3: ARM ASSEMBLY
ID DESCRIPTION QUANTITY
12 M8 Flat Washer 8
13 M8 Nylock Nut 4
23 M8 X 35L SHC 4
Raise left arm first to start assembling hardware. Raise right arm to complete assembly. Torque M8 hardware to:
39 N-m/29 ft.-lbs.
