PART 4: COUNTER WEIGHT ASSEMBLY
STEP 1 | COUNTER WEIGHT ASSEMBLY INSTRUCTIONS & NOTES
ID DESCRIPTION QUANTITY
12 M8 Flat Washer 4
24 M8 X 20L SHC 4
25 Counter Weight 2
ASSEMBLY

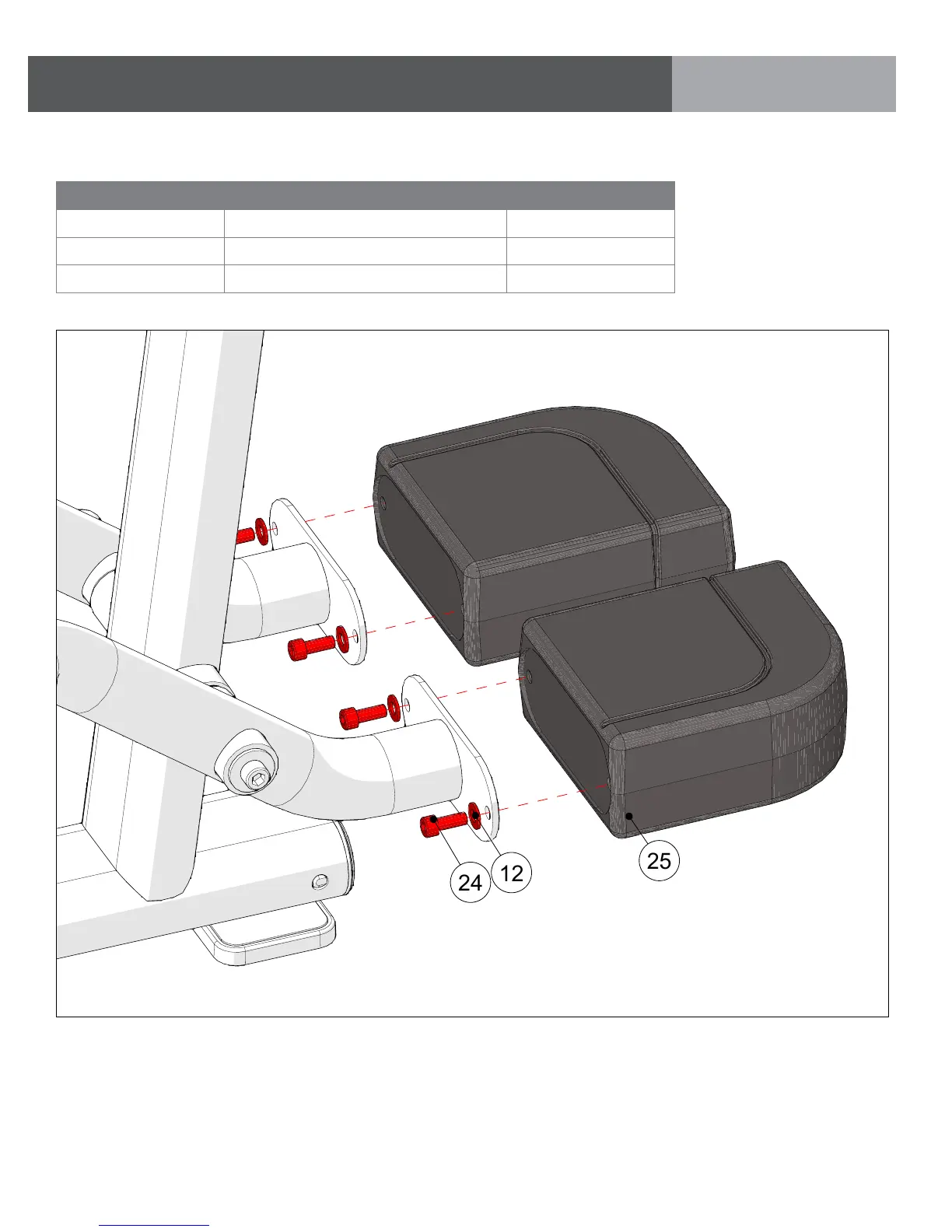

Install the user frame hardware as shown.
Torque Hardware to: 39 N-m/29 ft/lbs.
25
12
24
