Chapter 2
18
Onboard PCI Sound
 There is a onboard PCI Sound for the 3D multimedia
 systems.
Sound and Game (on the external connectors)
The board provides Line-In/Rear(see following The 4
Speakers System section), MIC(Microphone),Line-Out
(Speaker) signals for audio I/O, and Game port(which is
also used as the Joystick/MIDI port) signals.

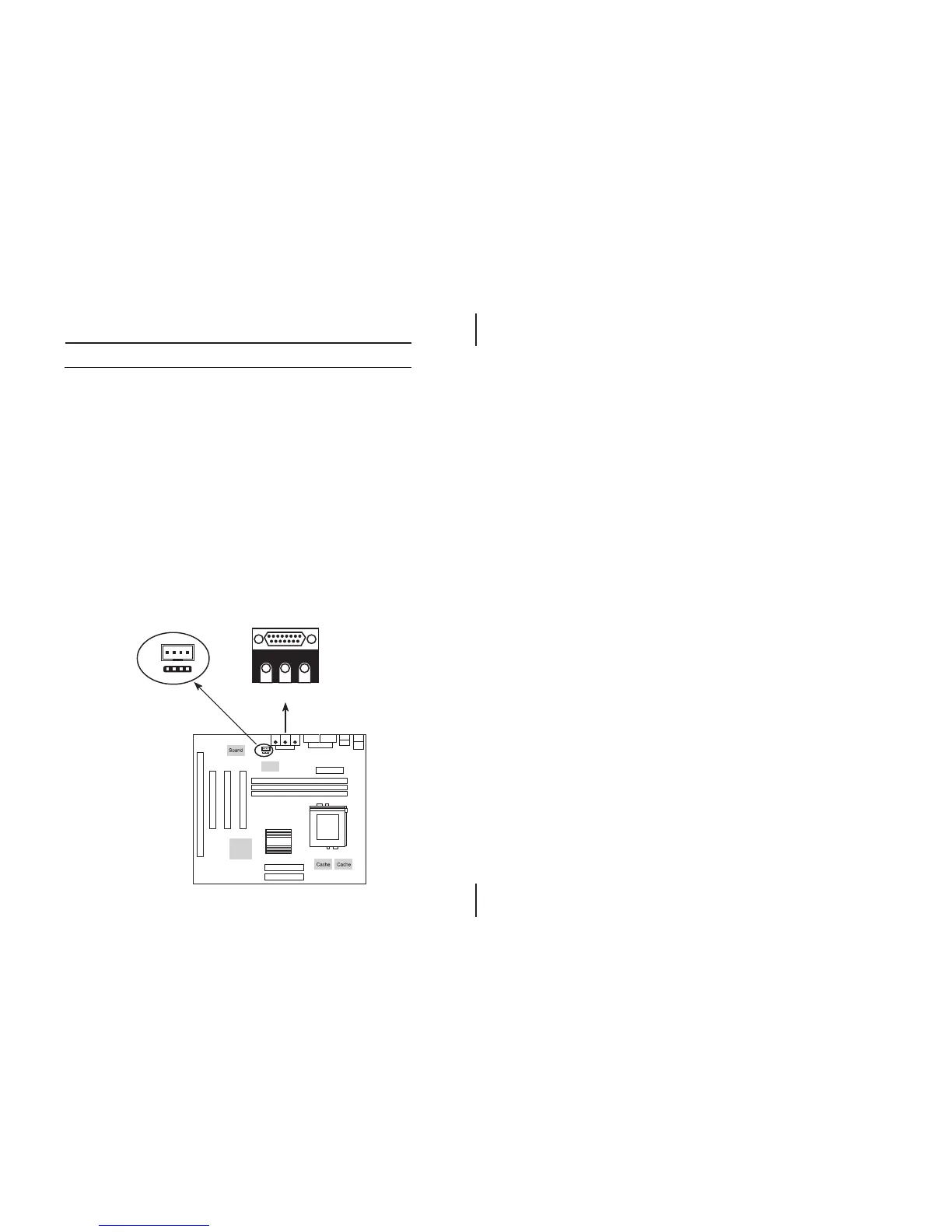

J7/J8 – Analog Audio from CD-ROM
Connectors
Connect from “AUDIO” output of the CD-ROM driver to
these connectors. For Panasonic or compatible type ofCD-
ROM, connect to J7 (pin signals assignment is G-L-G-R),
and for Sony or compatible type of CD-ROM,connect to
J8 (pin signals assignment is L-G-G-R).
J8
1
J7
Chipset
Chipset
I/O
J8
1
J7
Side View
Game port
Sound port
Line in MIC Line out
/Rear (Speaker)
