Matsui MGD-15J - Connecting for Jet Selector

Chapter 11 Options
- 76 -
[WO-8525]

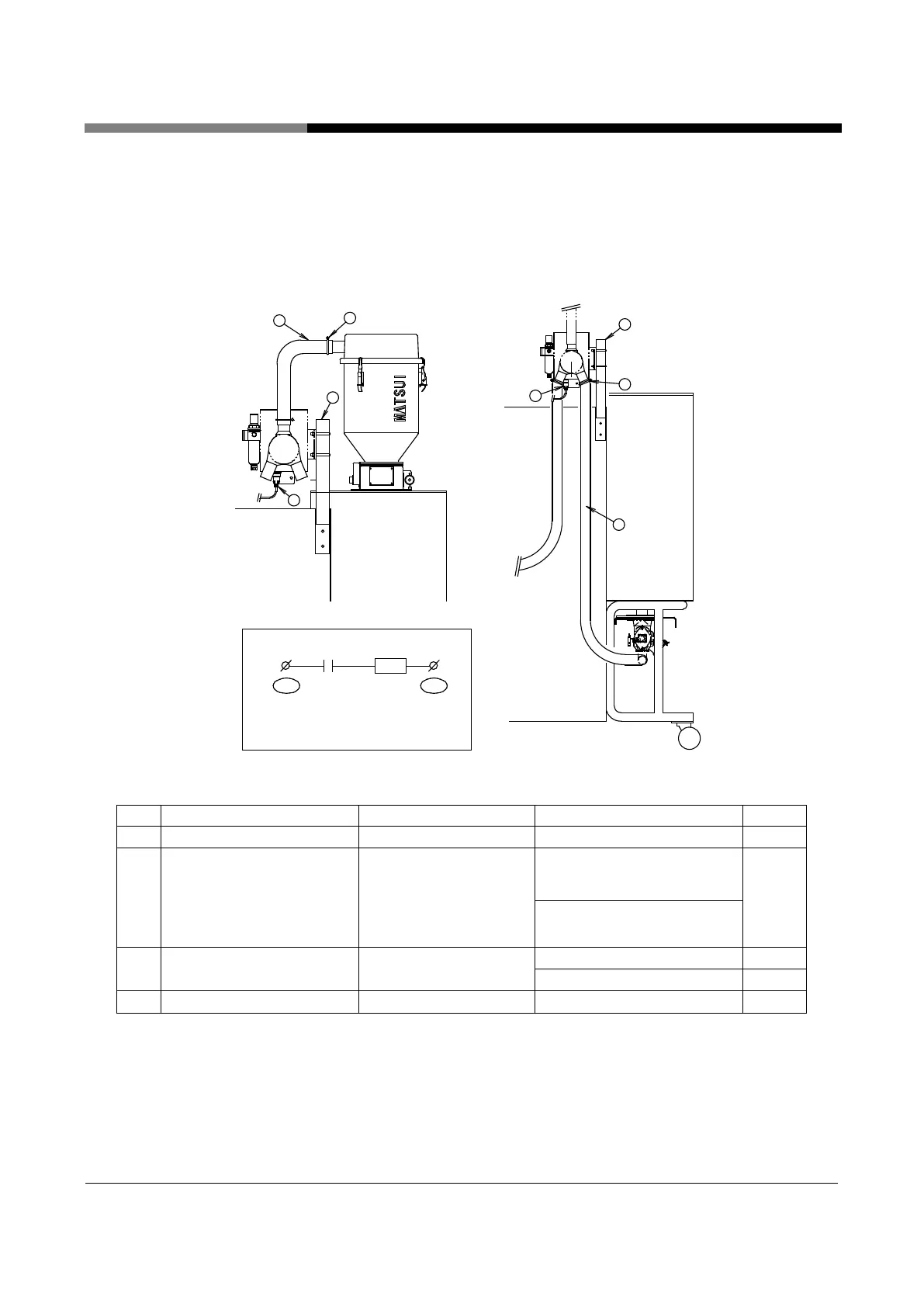

8. Connection for Jet selector
Combine Jet selector (available separately) and mixes principal material and crushed material
simply.
No.
Name
Maker
Model
Q’ty
１
Ball of installing JSV
Matsui
For installing JSV
１
２
PVC hose Tigers Polymer
W－３８×１～２m
(MGD-15～150)
１
W－５０×１～２m
(MGD-200～300)
３
Hose band Commercial
ＡＫ－１０４５
２
ＡＫ－１０５８ ２
４
Metal plug
Nanaboshi Kagaku
ＮＪＣ－２０２ １
4
1
3
4
2
62
JSV
S10
MS-1
62A
(56A)
2
3
1
Dry hopper
Dry hopper
Jet selector
Jet selector
MGD main unit
(rear)
In ( ) is in case of
installation in secondary
convey side.
material hopper
To crushed
MGD main unit
(rear)
[Primary convey side installation] [Secondary convey side installation]
To secondary convey collector
