Max P Series User Manual

P-Series User Manual Rev2022 7
Applies only to transmitters with 5-pin, M12 style connectors. For hazardous location transmitters with 1/2 inch conduit
connections, please refer to the EXInstall sheet.
A current sinking device uses the transmitter’s transistor output to act as a
switch. Positive DC voltage must be applied to the transmitter's output pin (#2).
When the pulse output is triggered, this voltage is grounded to zero volts by the
transmitter. Warning: Use a 5k ohm resistor to limit current if your system does
not have other means to limit current into the transmitter.
PLC
Digital
Input
V+
V+
Out
0V
Transmitter
Turck Pin #2 on
Industrial housings
Terminal 3 on ATEX
rated housings
Current Sinking Wiring (PN ending S/-)

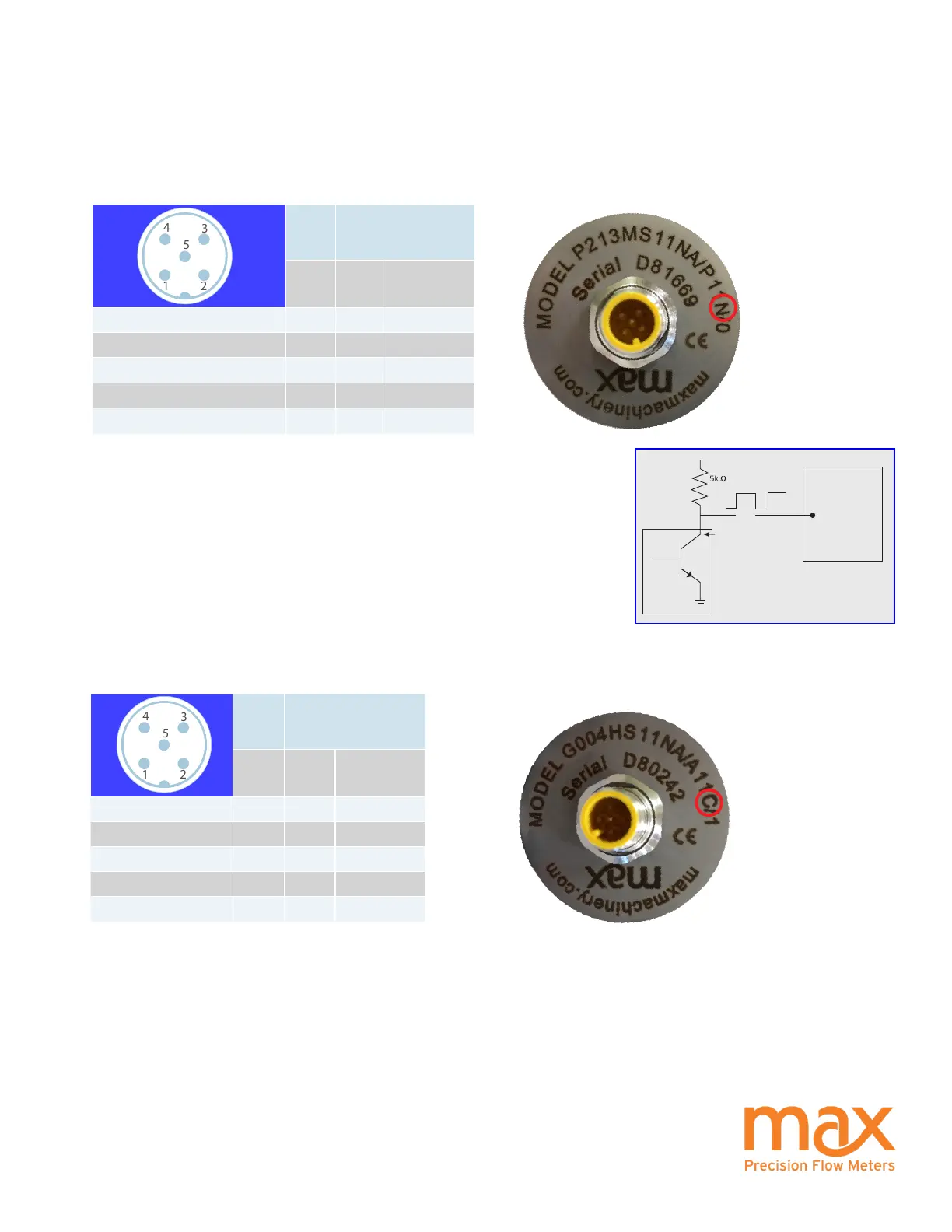

Electrical Installation Instructions - 5-pin Turck Connectors
Turck®
Connector
PCA
Label
Pin #
Mating Cable
Wire Color
Power * V+ 1 Brown
Common Com 4 Black
Signal Output (+) Sig 5 Grey
Signal Output (—)** Ret 2 White
Case Ground Case 3 Blue
21
4
5
3
Analog Current or Voltage Output Transmitters (PN ending A/-, B/-, C/-, or D/-)
* Analog transmitters with part numbers ending in A/- or C/- are 24Vdc power.
Part numbers ending in B/- or D/- are 12Vdc power.
** To minimize signal noise, analog output transmitters are fully isolated. If
your PLC does not ground the negative signal input, there is a risk of a ground
shift that could drive the signal out of the range of detection. To prevent this
from occuring, install a 10k pull down resistor between Common and Signal
Output (-).
Turck®
Connector
PCA
Label
Pin #
Mating Cable
Wire Color
Power (+5 to 26 Vdc) V+ 1 Brown
Common Com 4 Black
Pulse Output Ph A 2 White
Output Phase B (Quad only) Ph B 5 Grey
Case Ground Case 3 Blue
21
4
5
3
Frequency Output Transmitters (PN ending N/-)
