Specications

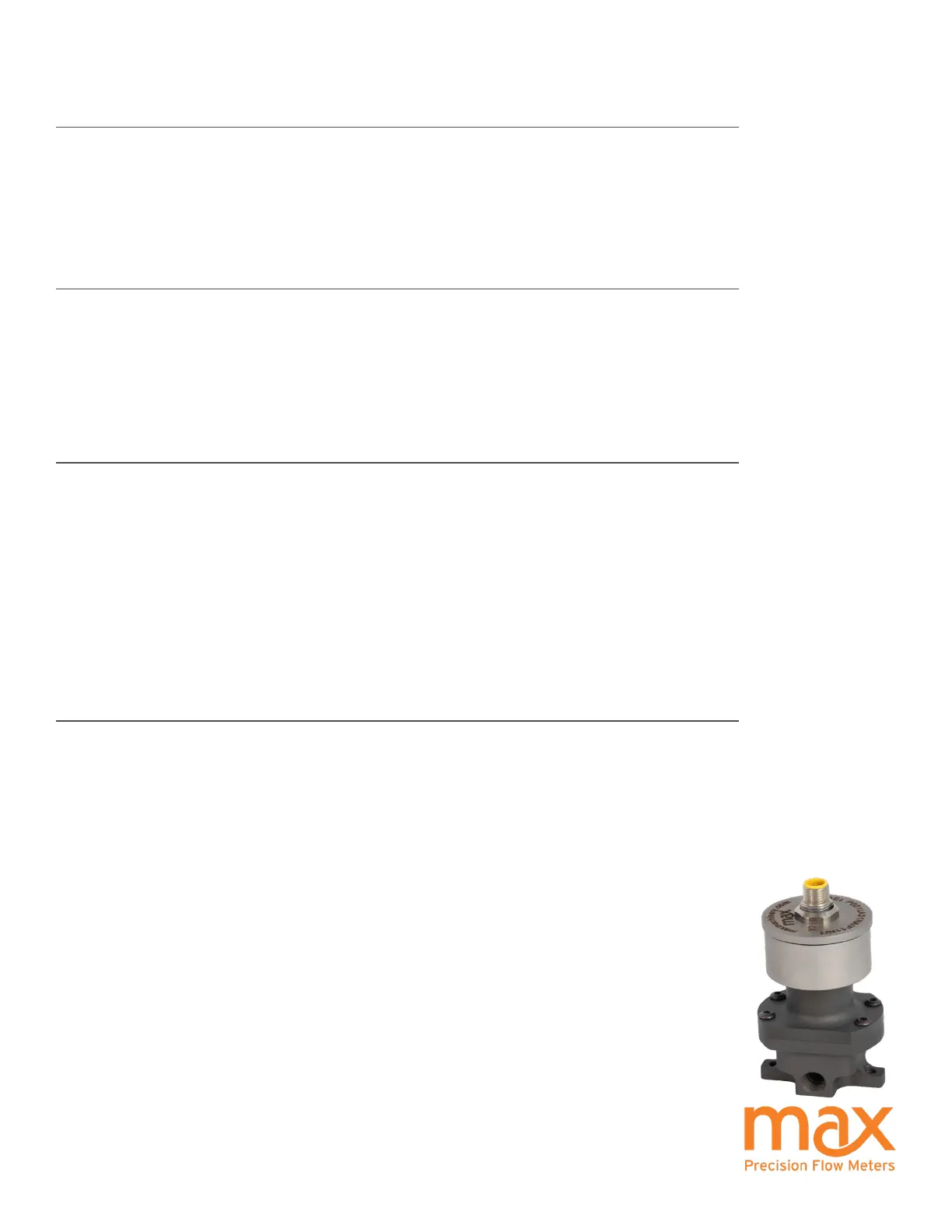

P001LA SPECIFICATIONS
Flow Range 0.005 to 200 cc/min
Accuracy (3 cP) ± 0.2% of reading over a 200:1 range
Maximum Operating Pressure 250 psi (17 bar)
Weight 0.4 kg
Recommended Filtration 5 micron
Port Size(s) 1/4 inch or 6 mm tube tting
Fluids Most non-aqueous, hydrocarbon based uids
MATERIALS OF CONSTRUCTION
External Aluminum, Hard Anodized, type 6061
Wetted Hard Anodized Aluminum, type 6061; Stainless steel, type 316,
440C, 17-4; Silicon Nitride; Nickel Based Carbide
O-Rings Standard: Viton®
Optional: Peruoroelastmer
FREQUENCY TRANSMITTER
Output Signal Standard: 5 Vdc, single phase
Optional: Quadrature 5 Vdc, two phase
Current sinking, 20 mA max., single phase
K-Factor Single Phase: 12,000 pulses/cc
Two Phase: 24,000 pulses/cc, 4x decoded
(6,000 pulses/cc/phase, 1x decoded)
Power Supply Requirements 5-26 Vdc @ 30ma
Ambient Operational Range -40°C to 80°C
Metered Liquid Temp Range -40°C to 90°C
(based on 20° ambient)
ANALOG TRANSMITTER
Output Signal Any range of ± 10V or ± 20mA linearized and damped
with anti-dither protection
Power Supply Requirements 12Vdc @ 90 mA, 24Vdc @ 45 mA
Ambient Operational Range -40°C to 80°C
Metered Liquid Temp Range -40°C to 90°C
(based on 20° ambient)
