Maxcess Fife-200 - Installing the Web Guide

3–2
INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Installing the web guide
Mount the guide(s) in the web path on a rigid support frame using four M8 bolts through the
9 mm [0.35 in] diameter holes in the guide support frame.
Inside type (actuator is between mounting surface and guide)

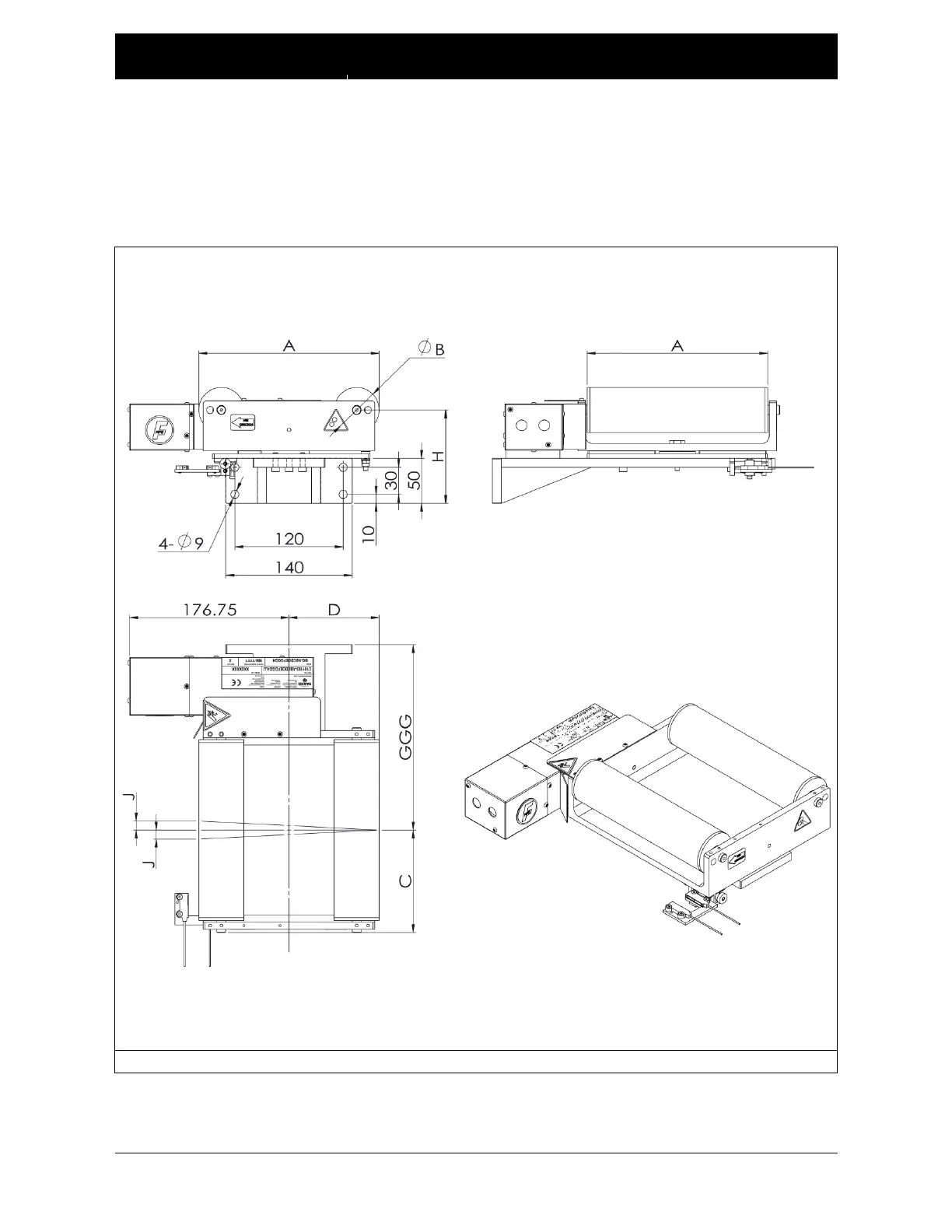

Figure 1. Guide installation drawing, actuator mounting inside type
