INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
SE-47 sensor position
adjustment
Adjust the position of the SE-47 sensor heads, by loosening
set screw (B) and turning the adjustment knob (A).
Once the sensor heads are in the desired location, tighten the
set screw to prevent the sensor heads from moving.
A
Position adjustment knob
B
Set screw

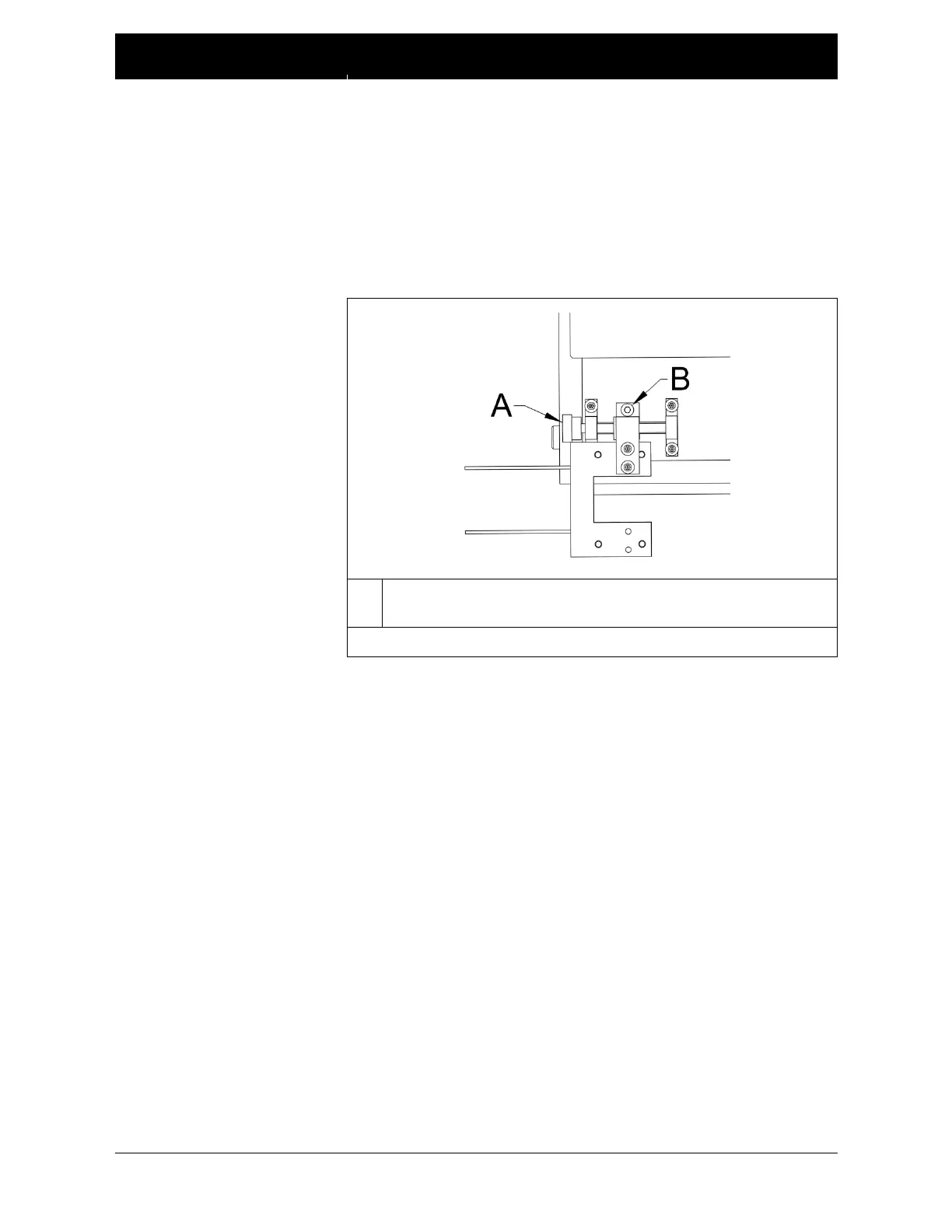

Figure 6. SE-47 sensor position adjustment
Other Fife sensor
installation
This section only applies when using other standard Fife
sensors, including the SE-11, SE-22, SE-44R, SE-31, and SE-
26A.
Mount the sensors in the web path on a customer-supplied
support frame.
