INSTALLATION
www.maxcessintl.com
Fife-200 Web Guiding System
MI 1-918 1 C
Installing cables
(continued)
1. Remove the eight screws that secure the controller end
plates.
2. Remove the controller cover by pulling up on one side.

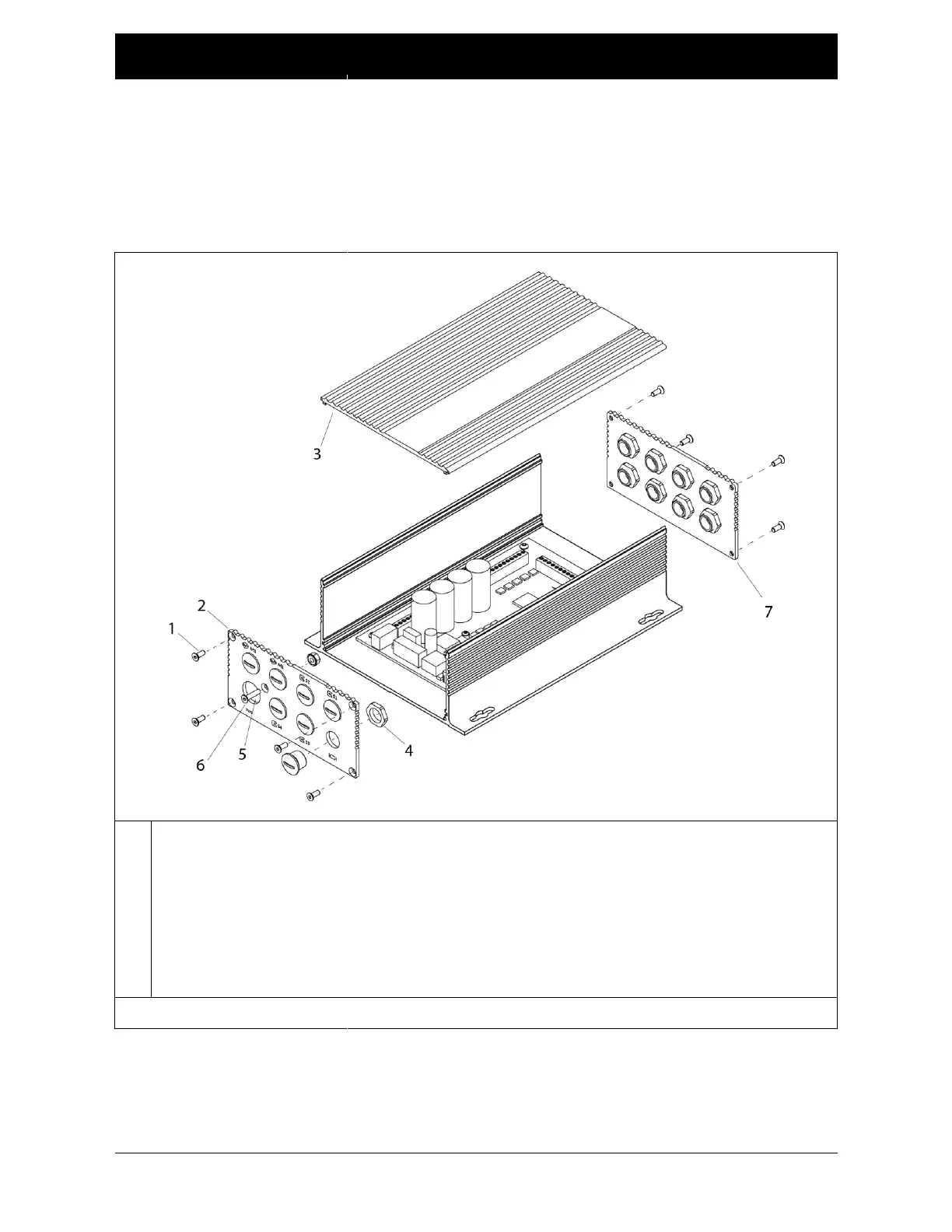

1
M3 flat head screw (8 ea)
2
End plate, power entry
3
Controller cover
4
Lock nut for sensor cable bushing
5
Power supply cable opening
6
Flat head screw and nut for ground wire connection
7
End plate, parallel I/O entry
Figure 11. Controller cable installation components.
continued
