14
Using Composite Input
Display Connections

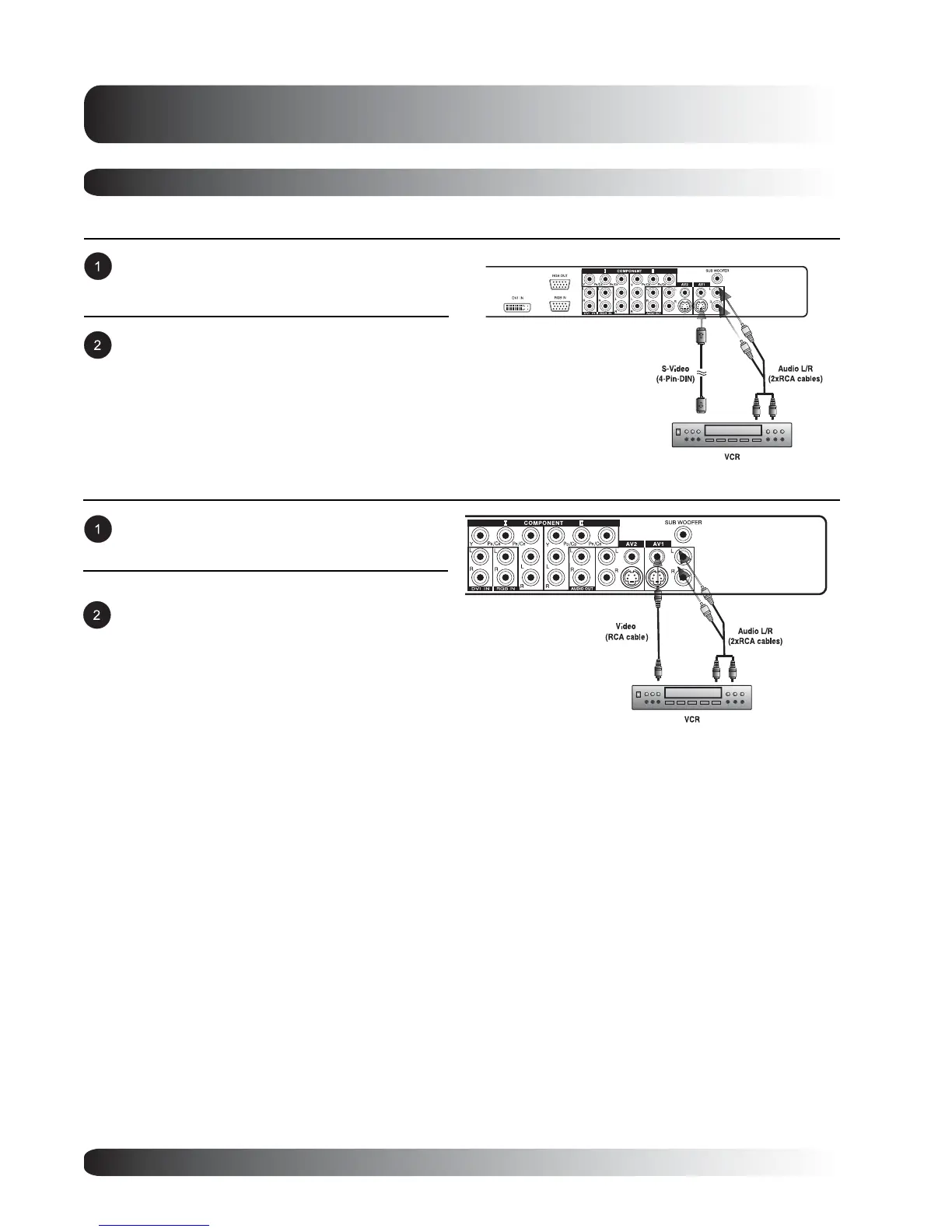

Connecting a VCR
Using S-Video Input
Connect the red (R) and white (L) audio jacks
from the VCR to the (R) and (L) audio-in jacks
located next to the S-Video connector.
Note:
There are two sets of S-Video inputs
provided.
Connect the S-Video (4-pin DIN) connector from
the VCR to the S-Video input on the back of
monitor.
Connect the yellow (video) out connector from
the VCR to the yellow video input on the back of
monitor.
Connect the red (R) and white (L) audio-out
jacks from the VCR to the R and L audio-in
jacks located next to the yellow Video
connector.
Note:
There are two sets of composite inputs
provided.
