Display Connections
Connecting a DVD
Using Component Video Input

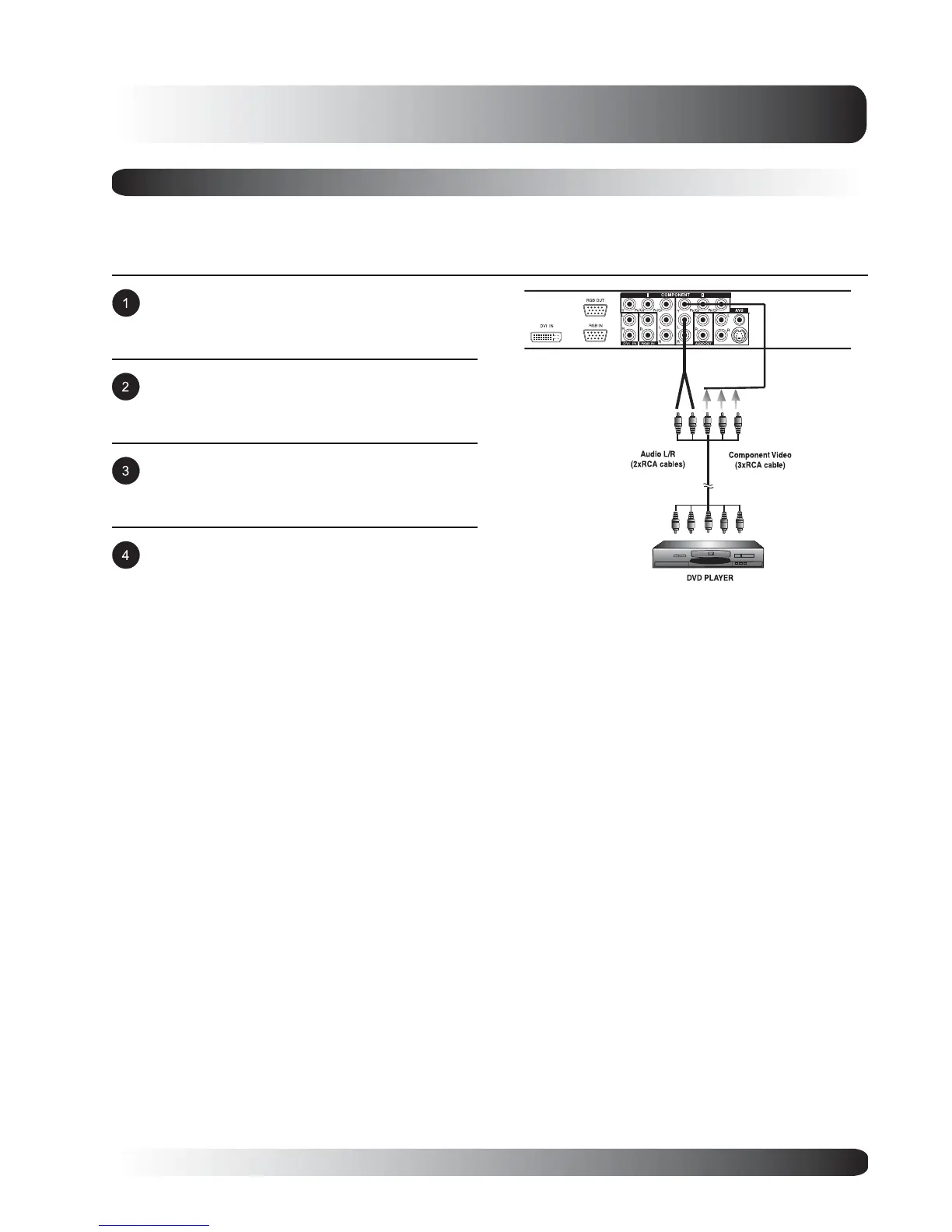

There are two sets of component video inputs provided. You can use either set of component inputs to connect
your DVD.
Connect the green-colored (labeled as Y) jack
from the DVD to the green-colored jack of the
monitor.
Connect the red-colored (labed as PR or CR)
jack from the DVD to the red-colored PR/CR jack
of the monitor.
Connect the blue-colored (labed as PB or CB)
jack from the DVD to the blue-colored PB/CB jack
of the monitor.
Connect the red (R) and white (L) audio jacks
from the DVD to the R and L audio-in jacks
located next to the PR/CR connector.
