Display Connections
External Audio Connections
Connecting to an External Amplifiers
Note:
The AUDIO OUT RCA jacks can be set to
either Fixed or Variable audio output levels.
This monitor can be connected to an external
amplifier using the AUDIO OUT jacks located
on the back of the monitor.
Connect the red (R) and white (L) AUDIO OUT
jacks from right side of the connector panel to
the external amplifier.

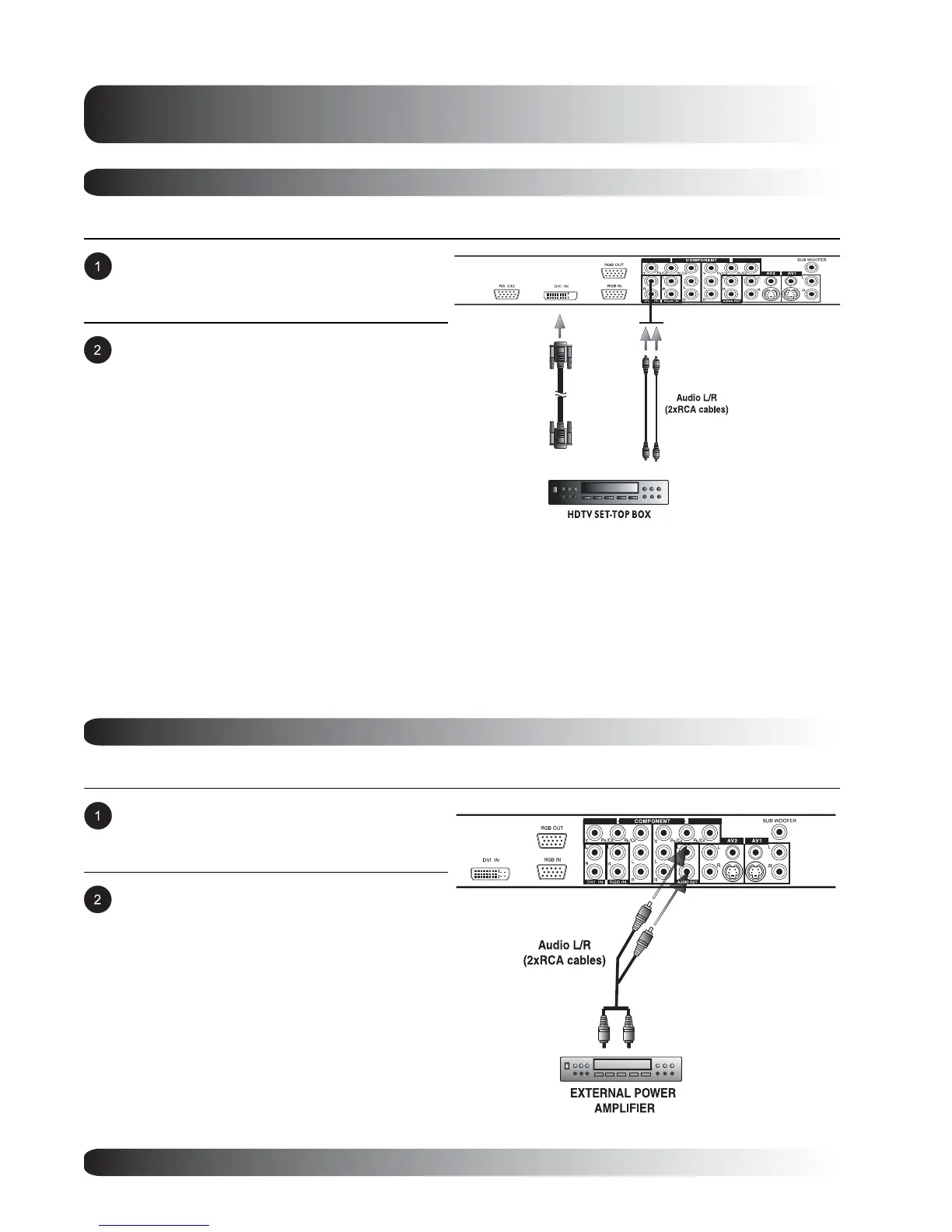

Using DVI Input
-
DVI+HDCP
xDVI-D cable)
Connect the red (R) and white (L) audio-out
jacks from the HDTV set top box to the R and L
audio-in jacks located next to the DVI-D
connector.
Notes:
Some HDTV Set top boxes may not have a DVI output. Use Component Video input or RGB input
method if this is the case.
Upon connecting your HDTV set top box to the DVI input of the monitor, it may be necessary to adjust
various picture settings on the monitor to correctly match the output of the HDTV set top box. This is
caused by the different video timings set by various HDTV set top box manufacturers.
Connect the DVI-D connector from the back of
the HDTV set top box to the DVI-IN Connector
located on the back of the monitor.
