06

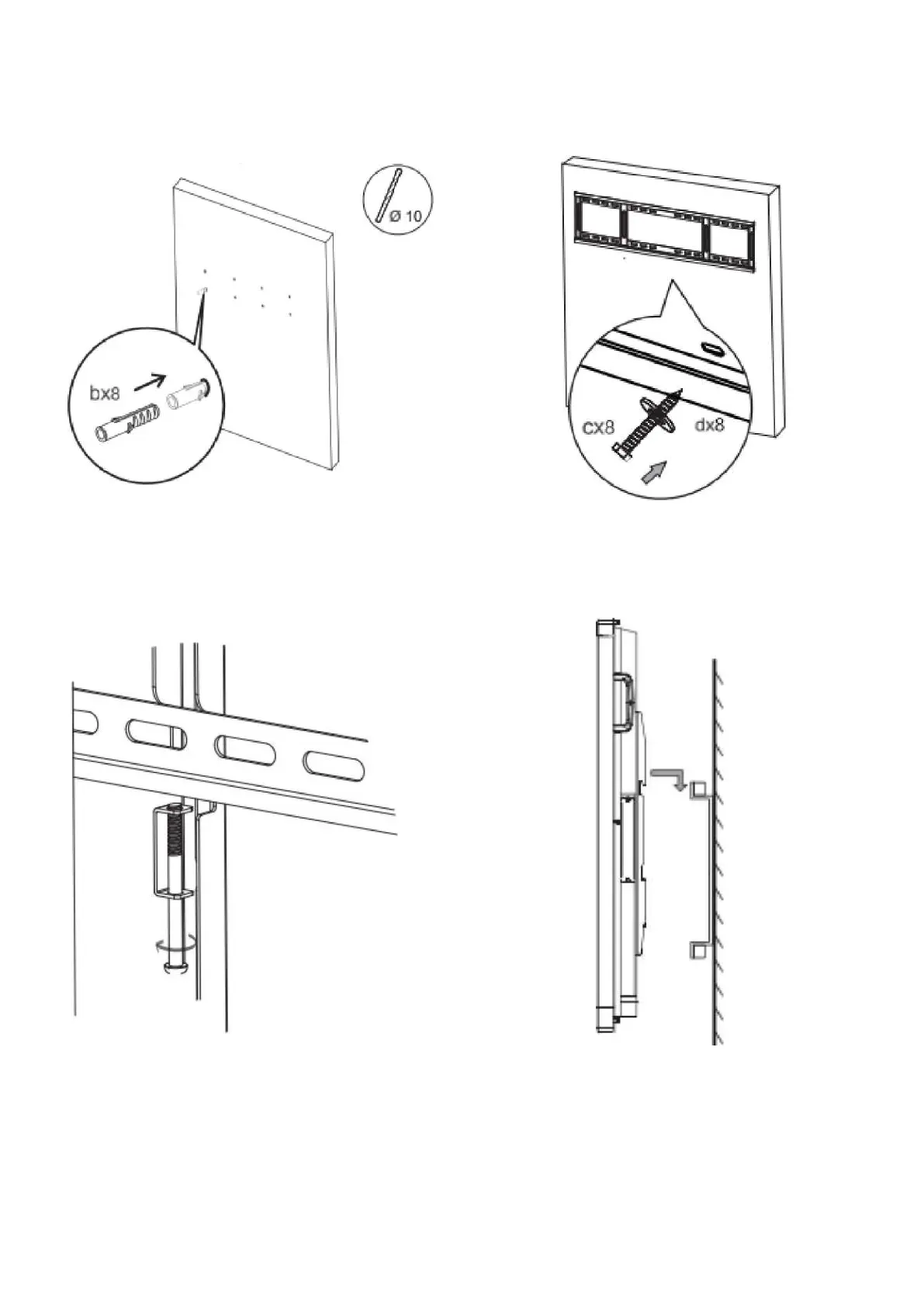

3. Take 8 pcs expansion rubber plug B and
screw them into the wall. It is recommended to
use a 10mm impact drill bit.
5. Reverse-tighten the safety screw to make the
top of the screw reach the second screw hole.
Note: This step is especially important for
installation on the mobile stand. Tightening the
safety screw will make the device more stable.
Note: Please keep the panel in the center of
the bracket.
6. Hang the panel vertically on the bracket and
finish installation.
4. Fix the wall bracket onto the 8pcs expansion
plug B, using a combination of 8pcs screw C
and gasket D.
