There is a wiring fault of the vehicle or the adapter.
There is a circuit fault in the adapter.
Incorrect vehicle identification was entered.
Getting Started
Prior to first use of the Diagnostics application, make sure a communication
link is established between the test vehicle and the Display Tablet via the
MaxiVCI Mini.
Vehicle Menu Layout
When the Display Tablet device is properly connected to the vehicle, the
platform is ready to start vehicle diagnosis. Tap on the Diagnostics
application button on the MaxiCheck MX808TS Job Menu, the Vehicle
Menu then displays.
1. Top Toolbar Buttons
2. Manufacturer Buttons
Top Toolbar Buttons
The operations of the toolbar buttons at the top of the screen are listed and
described in the table below:

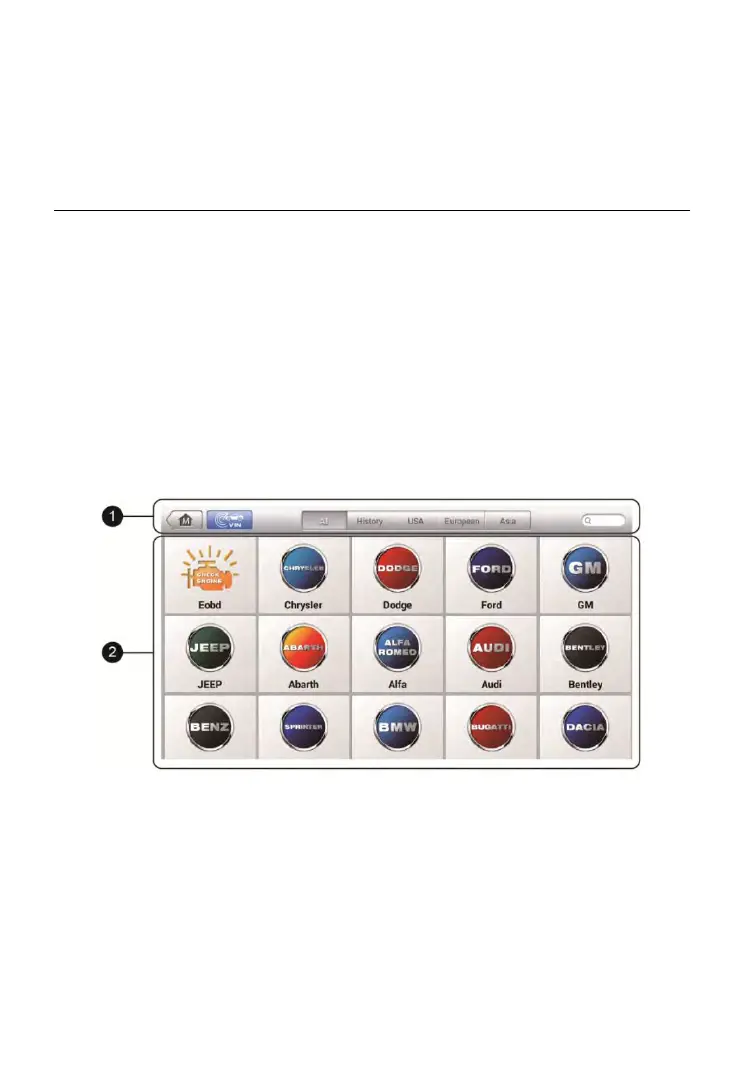

Figure 4-1 Sample Vehicle Menu
