82
TPMS Diagnosis
The Diagnosis function is used to check the health of the TPMS ECU. This
function requires connection with the test vehicle. Refer to Establishing
Vehicle Communication on page 17 for details.
Diagnosis Operations
Tap Diagnosis, the Display Tablet will automatically communicate with the
vehicle.

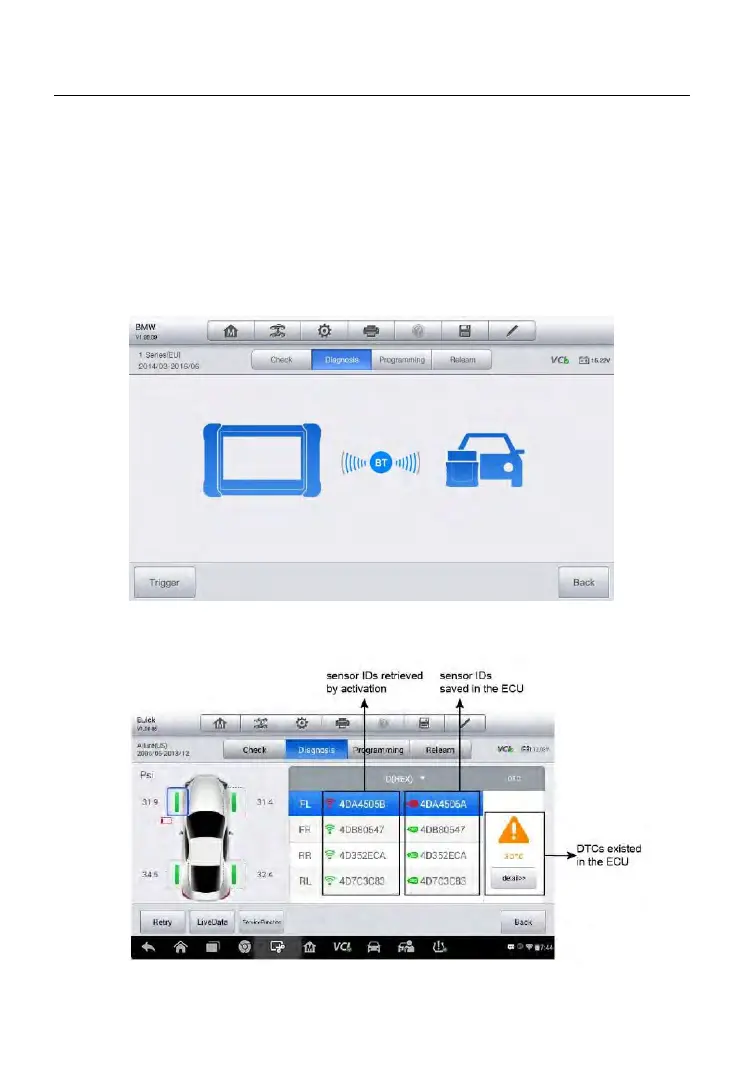

Figure 6-9 Sample Diagnosis Communication Screen
Figure 6-10 Sample Diagnosis Screen 1
To Next Page
