84

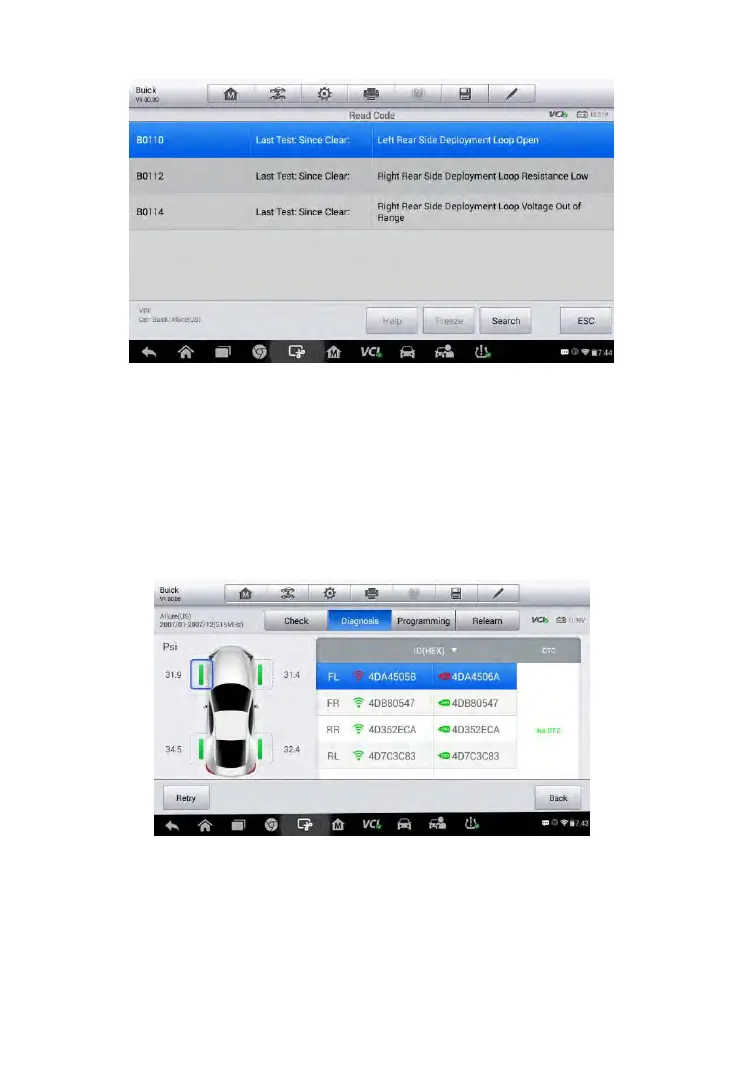

Figure 6-12 Sample DTCs Screen
In this screen, the detailed fault definition will be displayed. Select one of the
DTC and tap Search, the tablet will automatically connect the Internet and
more details will be displayed on the tablet.
If there is no DTC exited in the TPMS ECU, a green “No DTC” message
appears in the DTC column.
Figure 6-13 Sample No DTC Screen
Retry
Tap Retry, the tablet will communication with ECU again to retrieve the
sensor IDs and the DTCs existed in the ECU.
