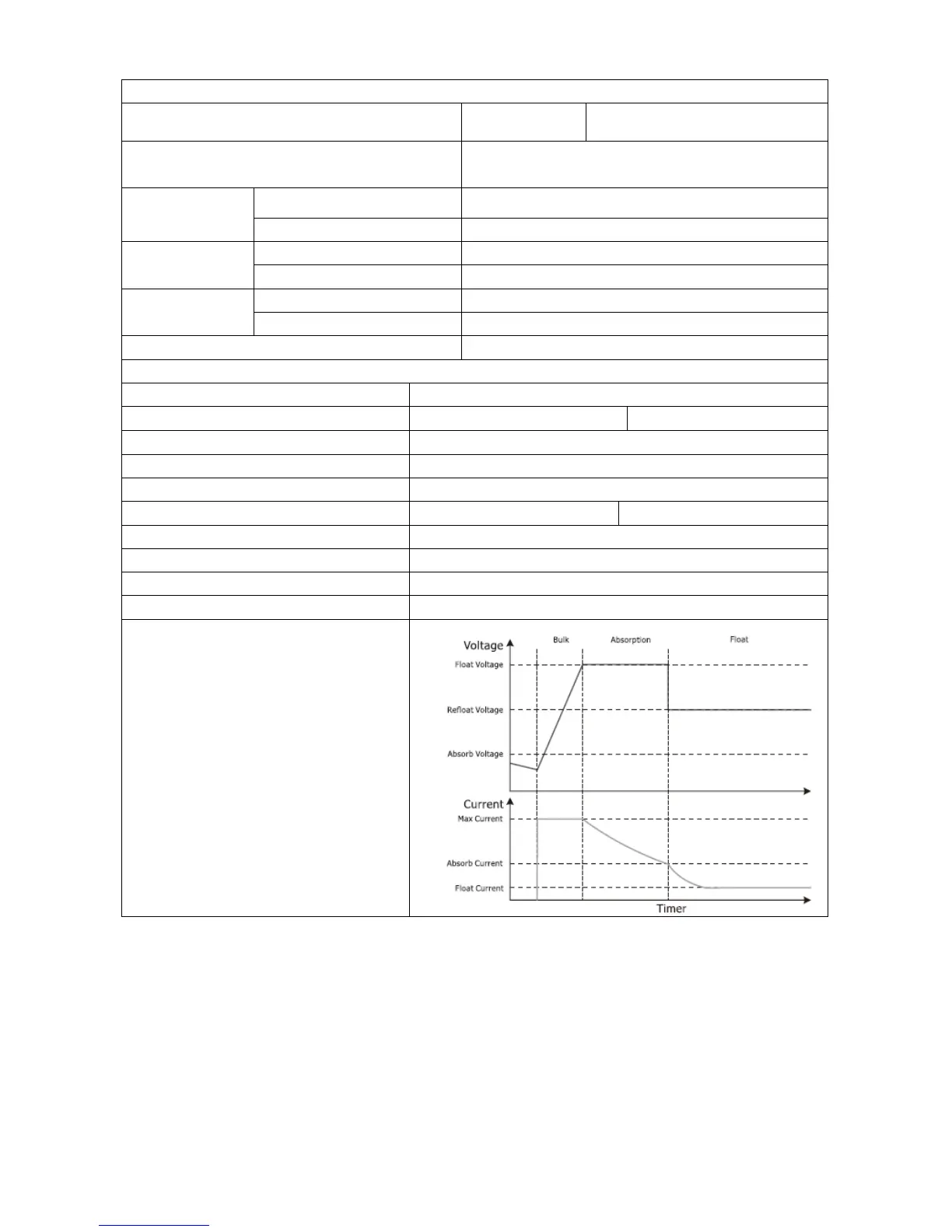

Table 3 Charge Mode Specifications
AC Charging Mode
INVERTER MODEL
2024
3024
Charging Current
@Nominal Input Voltage
20/30A
Absorption
Voltage
AGM / Gel/LEAD Battery
25Vdc
Flooded Battery
25Vdc
Refloat Voltage
AGM / Gel/LEAD Battery
27.4Vdc
Flooded Battery
27.4Vdc
Float Voltage
AGM / Gel/LEAD Battery
28.8Vdc
Flooded Battery
28.4Vdc
Charging Algorithm
3-Step(Flooded Battery, AGM/Gel Battery), 4-Step(LI)
Solar Charging Mode
INVERTER MODEL
2024/3024
Charging Current (MPPT)
40Amp
60Amp
System DC Voltage
24Vdc
Operating Voltage Range
30-130Vdc
Max. PV Array Open Circuit Voltage
145Vdc
Max PV Isc
40Amp
60Amp
Standby Power Consumption
2W
Battery Voltage Accuracy
+/-0.3%
PV Voltage Accuracy
+/-2V
Charging Algorithm
3-Step(Flooded Battery, AGM/Gel Battery),4-Step(LI)
Charging algorithm for
lead acid battery
