maxon motor EPOS4 Module 50/5 - EC Motor - Hall Sensors & Analog Incremental Encoder

Wiring
EC Motors (BLDC, brushless)
maxon motor control
EPOS4 Positioning Controller Document ID: rel8003
5-89
EPOS4 Module/Compact 50/5 Hardware Reference Edition: May 2018
© 2018 maxon motor. Subject to change without prior notice.
5.3.3 EC Motor – Hall Sensors & Analog Incremental Encoder

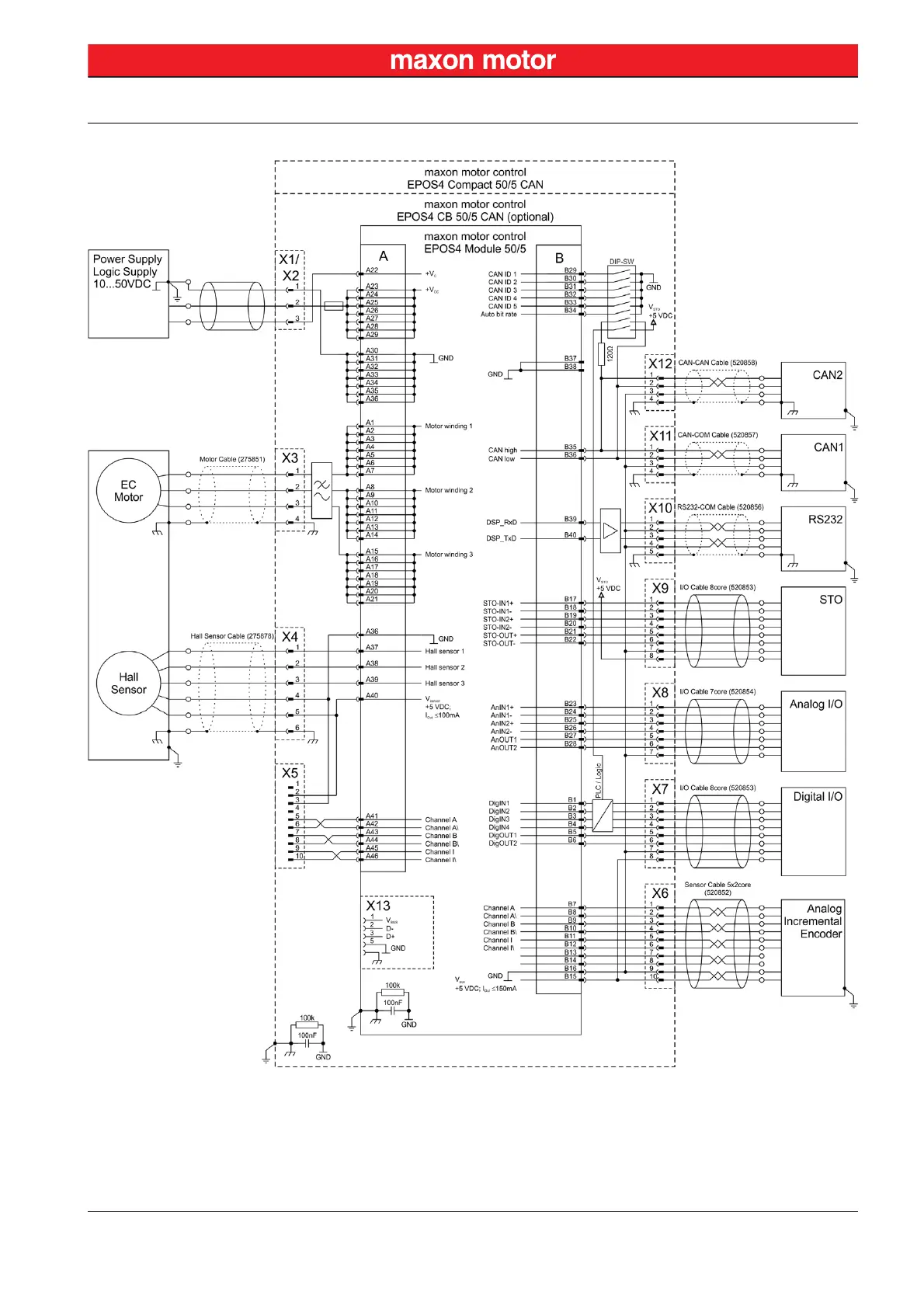

Figure 5-63 EC motor (Hall sensors & analog incremental encoder)
