Maxon BMR-55 - Raising & Unloading Platform

17
1. Fold ramp until it locks in retention
position (FIG. 17-1B).
3. Carefully move the load into
vehicle (FIG. 17-2).

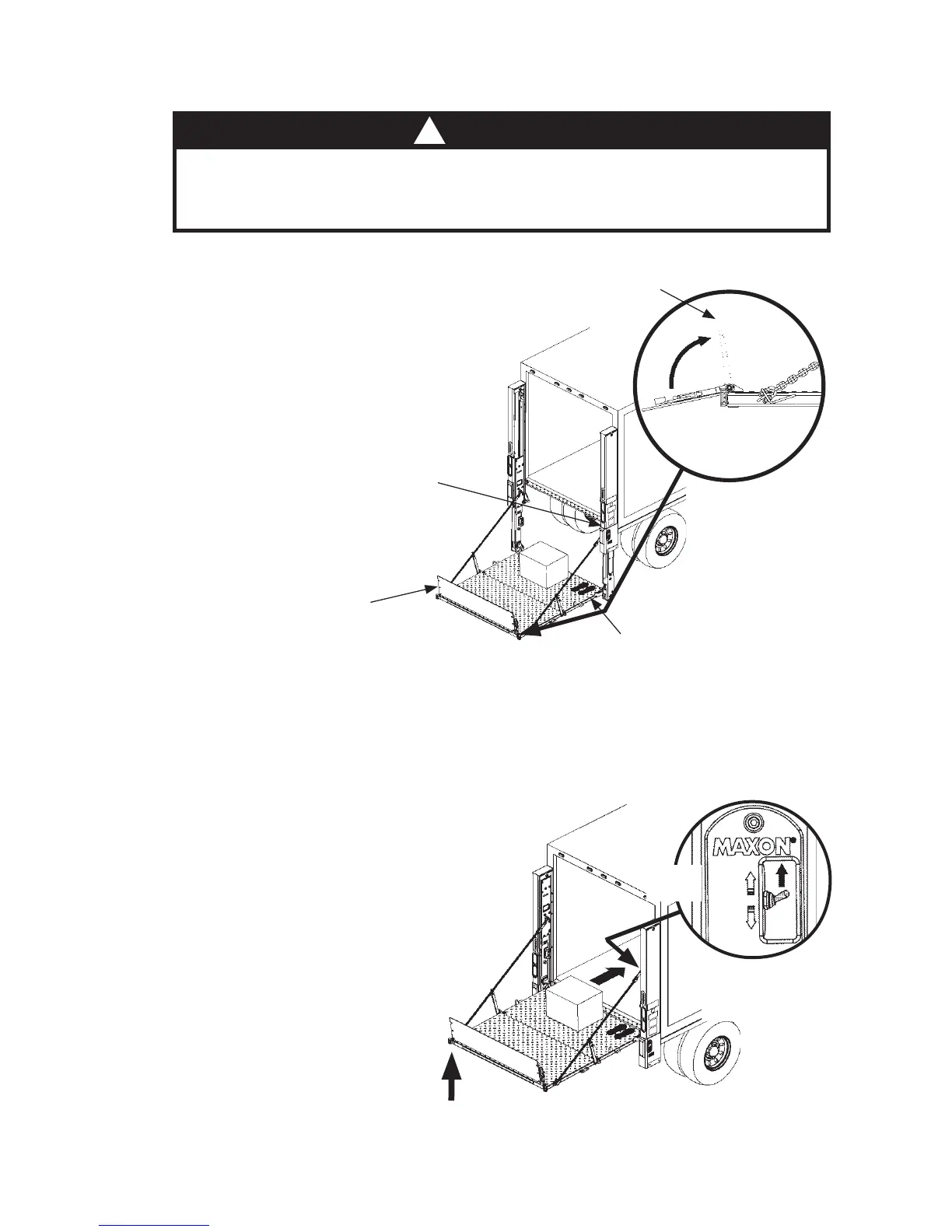

FIG. 17-1A
STAND CLEAR OF
PLATFORM
(REFER TO DECALS
& PLATES)
RAISING & UNLOADING PLATFORM
RAMP
A ramp in retention position can trip you when stepping over it.
To prevent possible injury, get on the platform before putting the
ramp in retention position.
CAUTION
!
PLATFORM
MOVING LOAD INTO VEHICLE
FIG. 17-2
FIG. 17-1B
RETENTION
POSITION
2. Use runner switch to raise (UP)
platform from ground level to bed
height (FIG. 17-2). Release
switch when platform reaches
bed height.
RUNNER
SWITCH
UP
