Platform can unfold suddenly with no tension on torsion bar. Stay out of the
path of unfolding platform when adjusting the torsion bar. Get second person
to help unlatch platform.
WARNING
!
1. On the LH runner hold torsion bar pin with
a large wrench or gripping pliers to prevent
pin from rotating while pin is being unbolted
(FIG. 18-1A). Next, remove cap
screw, lock washer and fl at washers from
torsion bar pin (FIG. 18-1). Keep fasteners
to reinstall. Rotate the torsion bar pin
counter-clockwise to apply tension to
torsion bar (FIG. 18-1A). Then, line up the
nearest holes on torsion bar pin and runner
to bolt pin in that position and keep tension
on the torsion bar. Bolt pin to LH runner
and tighten securely (FIG. 18-1).

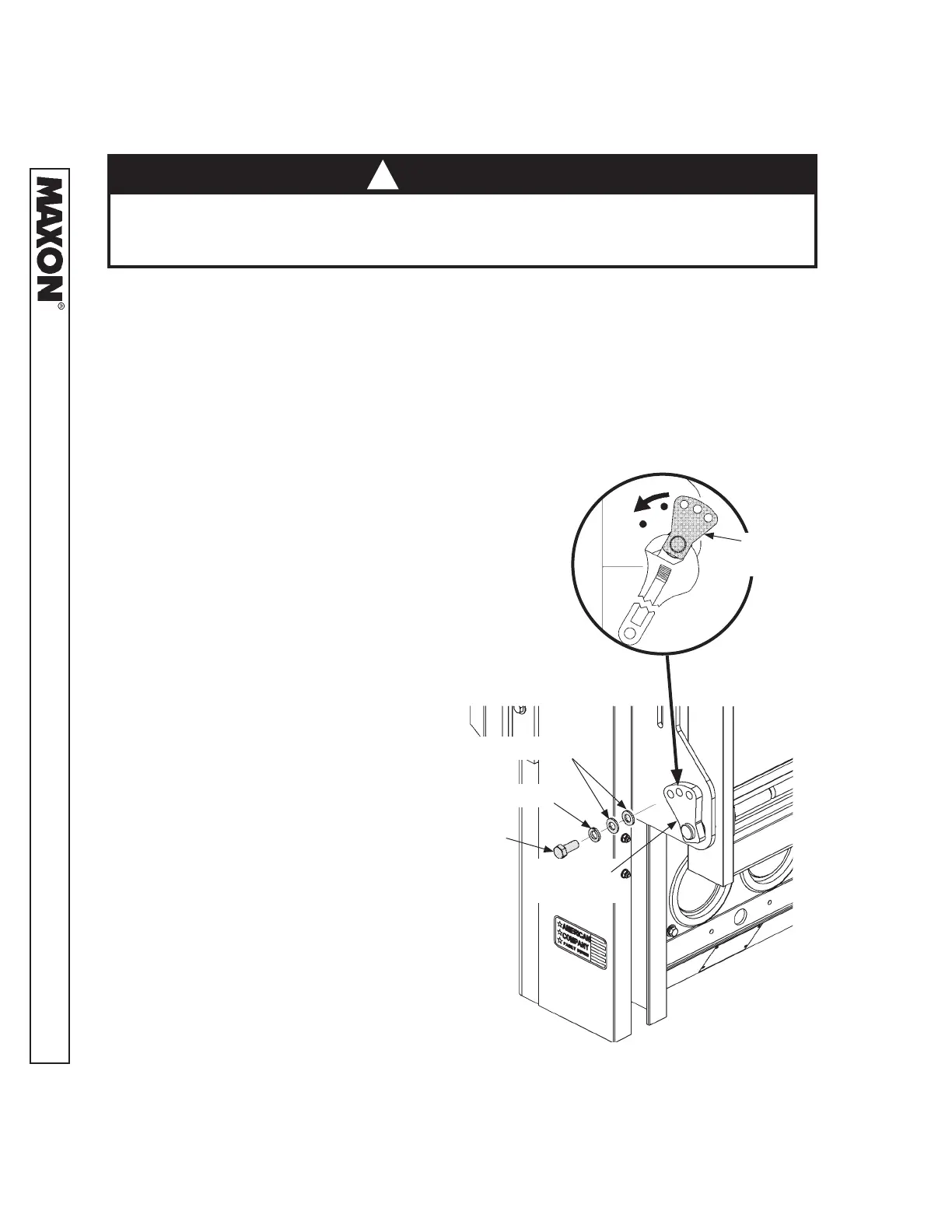

UNBOLTING PIN FOR LH TORSION BAR
FIG. 18-1
TORSION
BAR PIN
CAP SCREW
LOCK WASHER
FLAT WASHER
FIG. 18-1A
TORSION
BAR PIN
TORSION BAR ADJUSTMENT - Continued
PERIODIC MAINTENANCE
ADJUST LH TORSION BAR
(ALL PLATFORMS)
To Next Page
