11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
34
4. Remove plastic stop from
LH and/or RH runner
(FIGS. 34-1A and 34-1B).

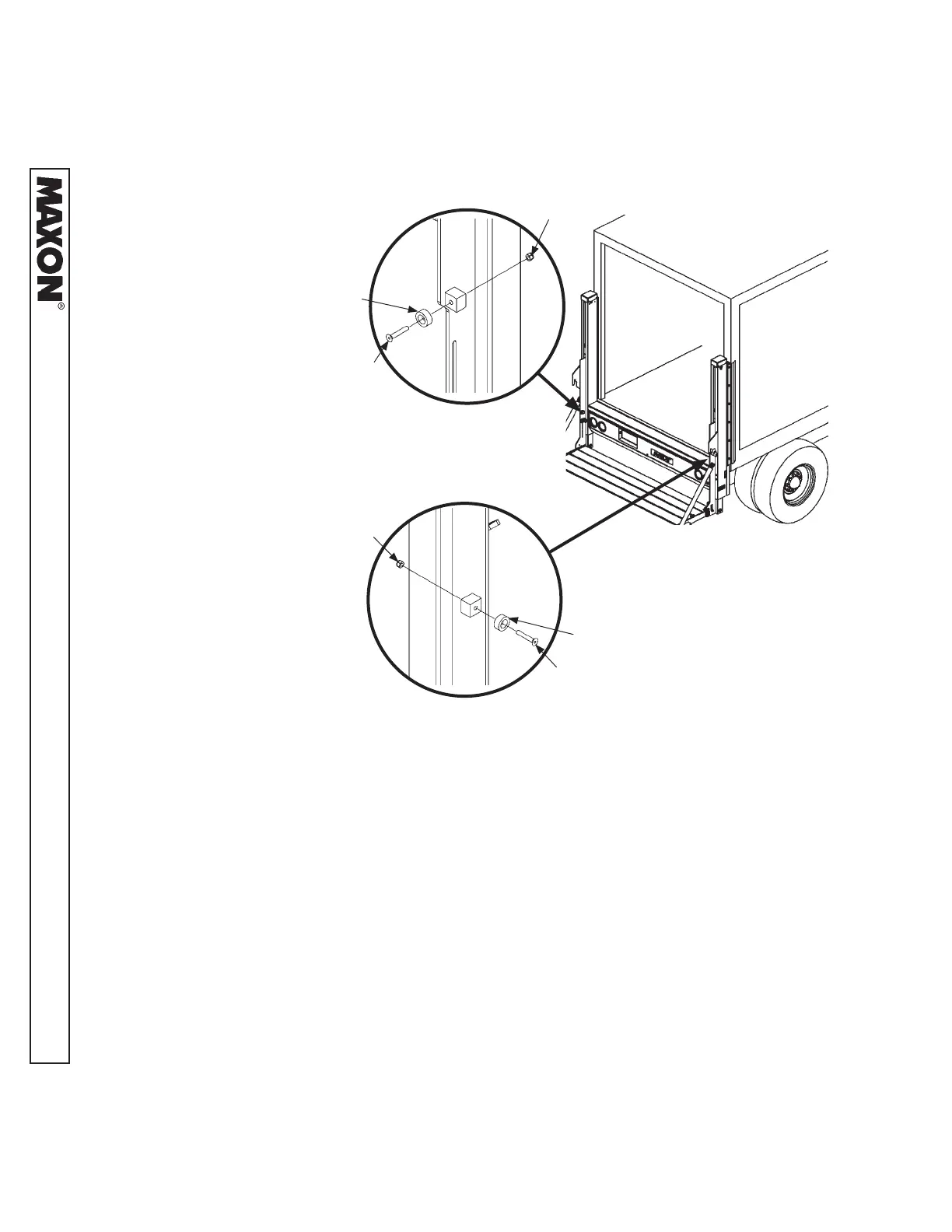

PLATFORM UNFOLDED TO
ACCESS STOP BUMPERS
FIG. 34-1
3. Unfold platform to gain
access to the plastic platform
stops on the LH and RH
runners (FIG. 34-1).
PLASTIC STOP
ON LH RUNNER
FIG. 34-1A
5. Calculate the minimum
thickness of shim washers
needed to increase
clearance to 11/16” +/- 1/4”
between main housing
and bottom of fl ipover.
For example, if minimum
clearance should be 7/16”
and the measured clearance
is only 3/8” (7/16”-6/16”=
1/16”), a 1/16” thick washer
will restore the minimum
clearance shown in step 2.
PLASTIC STOP
ON RH RUNNER
FIG. 34-1B
5/16”-18 SOCKET
HEAD SCREW
5/16”-18
LOCK NUT
5/16”-18 SOCKET
HEAD SCREW
5/16”-18
LOCK NUT
PLASTIC STOP
PLASTIC STOP
MEASURE & ADJUST CLEARANCE FOR PLATFORM
WITH FLIPOVER - Continued
To Next Page
