PERIODIC MAINTENANCE
CHANGING HYDRAULIC OIL - Continued
5. Bolt on the pump cover as shown
in FIG. 16-1. Torque the cap
screws to 10-14 lb-in.
PUMP COVER
FLAT WASHERS
(5 PLACES)
POWER UNIT
(REF)
CAP SCREWS
(5 PLACES)

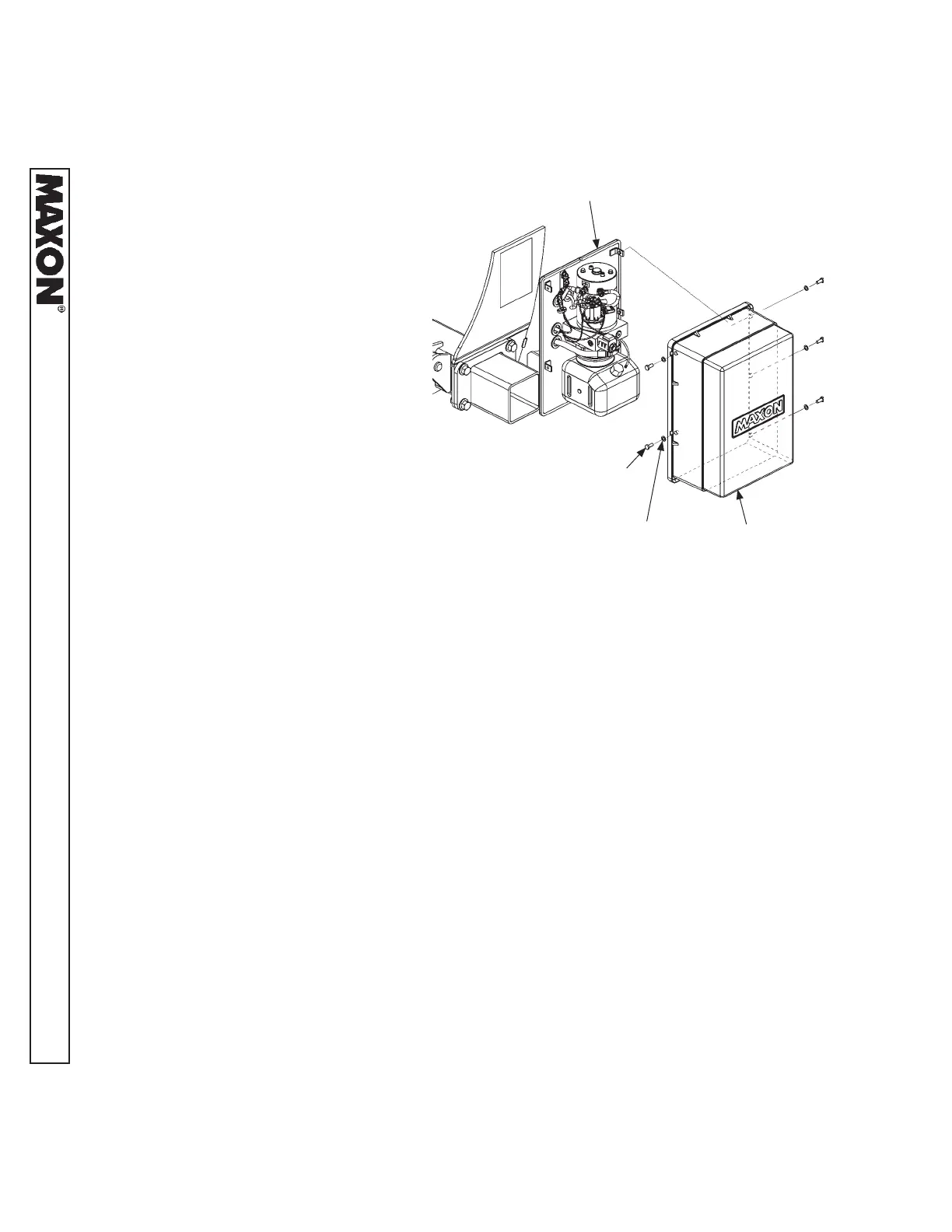

BOLTING PUMP COVER
FIG. 16-1
