Maxon TE-25 - Hydraulic Schematic (Power Down)

11921 Slauson Ave. Santa Fe Springs, CA. 90670 (800) 227-4116 FAX (888) 771-7713
29

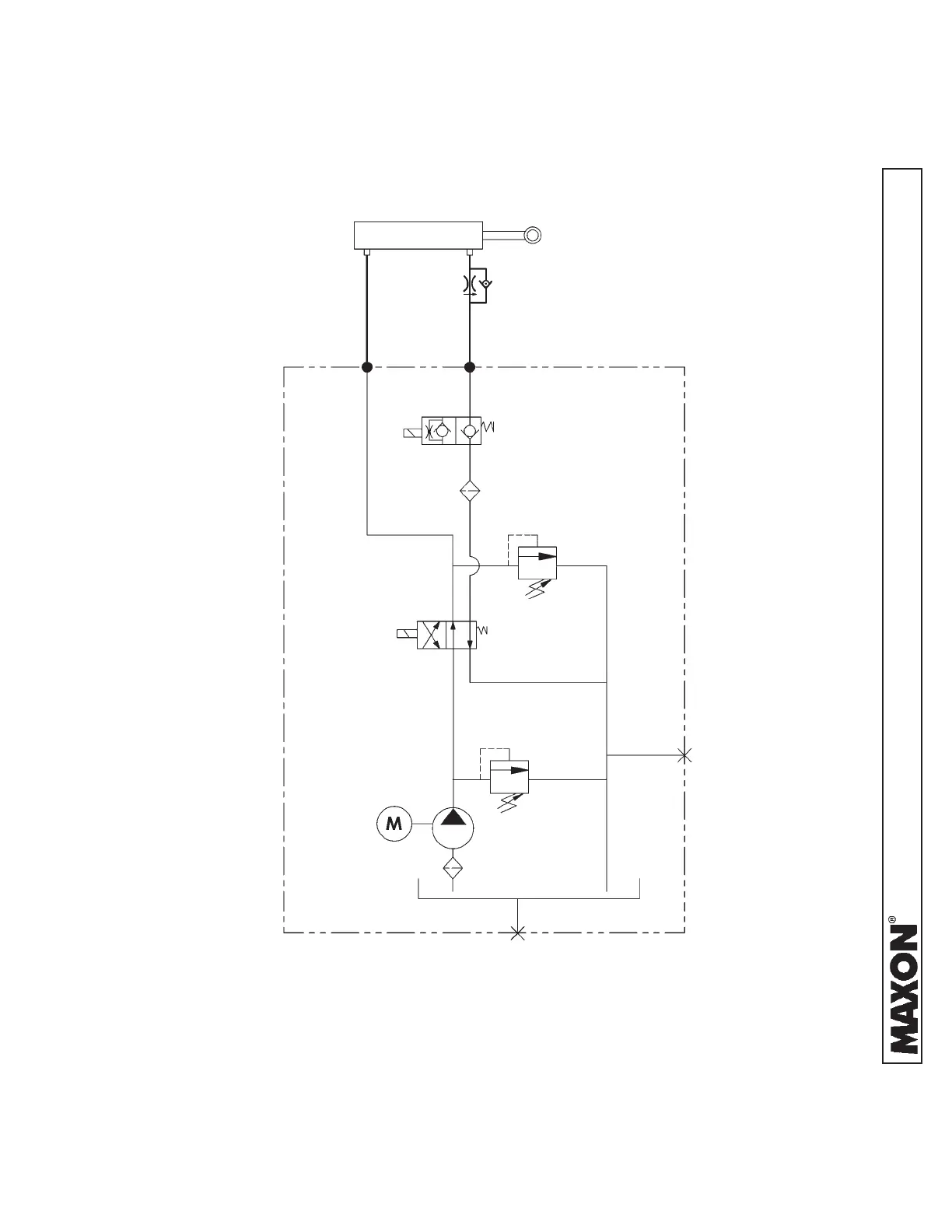

HYDRAULIC SCHEMATIC (POWER DOWN)
PORT B - LOWER
(POWER DOWN)
PORT A - RAISE
RELIEF VALVE 2
(SET AT 1100 PSI)
PUMP
AUX. HAND
PUMP PORT
(PLUGGED)
VALVE A
VALVE E
HYDRAULIC CYLINDER
2 GPM FLOW
CONTROL
VALVE
RESERVOIR
DRAIN HOLE
(PLUGGED)
FILTER
MOTOR
(REF)
RELIEF VALVE 1
(SET AT 3250 PSI)
FIG. 29-1
FIG. 29-1
