2.1.2. Wiring Diagrams

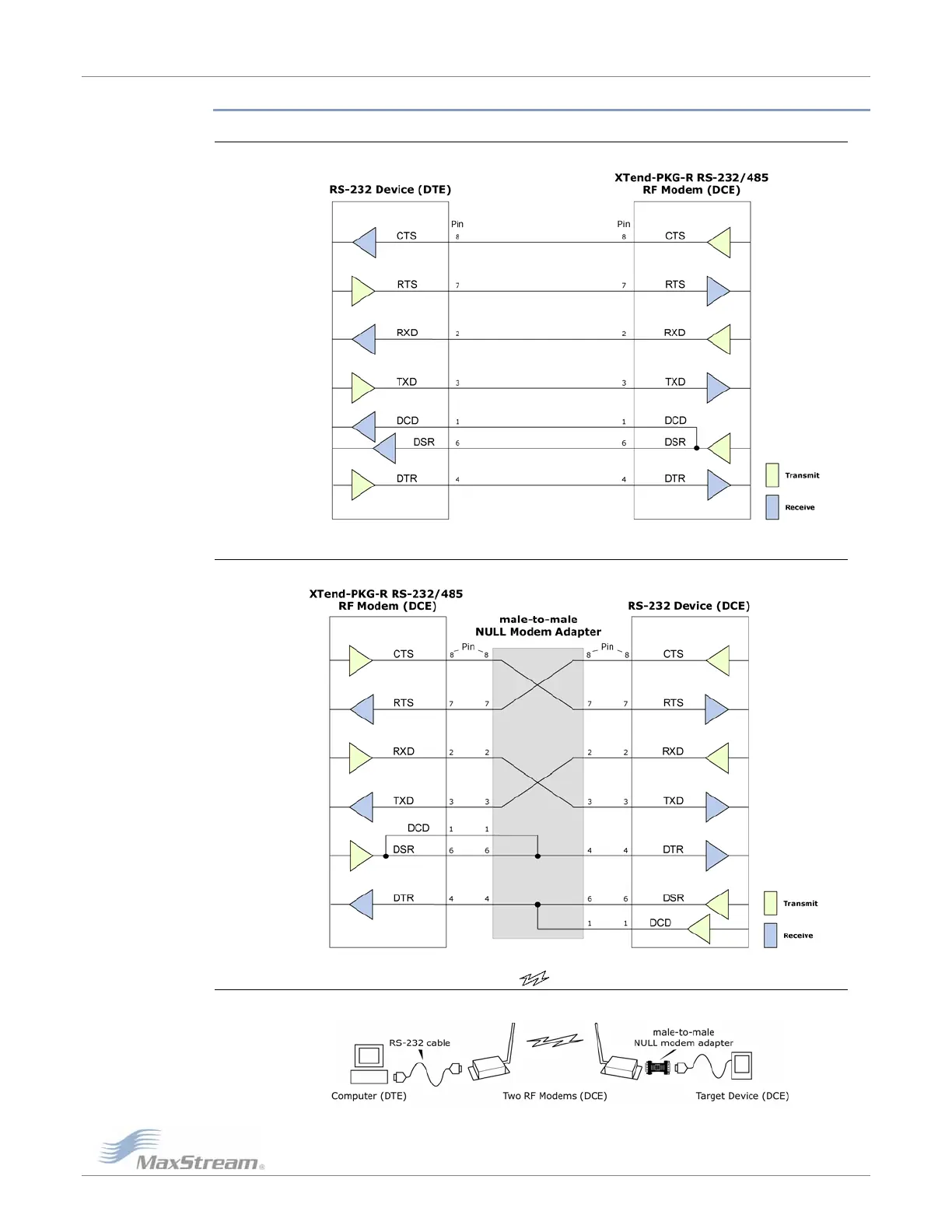

RS-232 DTE Device to a DCE RF Modem

Figure2‐03.RS‐232DTE(maleconnector)devicewiredtoanXTendRFModem(femaleconnector)

DCE RF Modem to an RS-232 DCE Device

Figure2‐04.XTendRFModem(femaleconnector)wiredtoanRS‐232DTE(maleconnector)device

Sample Wireless Connection: DTE Ù DCE DCE Ù DCE

Figure2‐05.Typicalwirelessconnectionusedfo rserialcommunicationsbetweenDTEandDCEdevices
