Chapter 6: Deck Equipment
35
Canvas
Convertible Top (If Equipped)

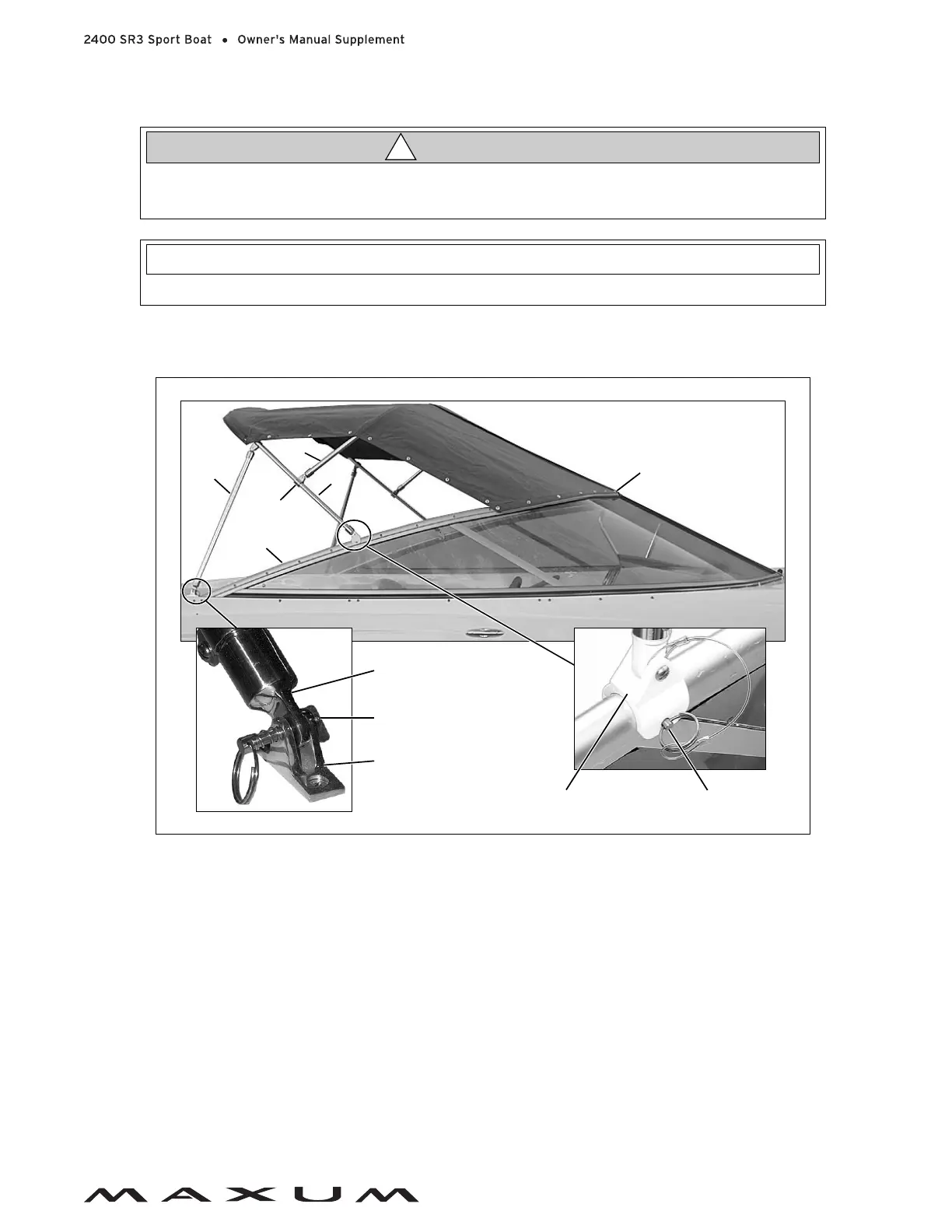

1. Unzip, remove, and stow the storage boot.
2. Slide the swivel ends (A) of the main bow (B) over the pre-drilled hole on each side windshield frame (C) and
secure with the pins (D).
3. Insert the end eyes (E) of the aft braces (F) into the deck hinges (G) and secure them with the pins (H).
4. Unfold the canvas top and snap the front edge of the top (I) to the windshield frame.
5. Align the secondary bow (J) with the center seam of the canvas by loosening or tightening the top straps.
6. No adjustments to the jawslides (K) should be needed as they are preset during manufacturing.
• Before attempting to adjust the jawslide positions, obtain the correct measurements from your selling dealer.
7. If additional canvas (i.e. side curtains or slant back cover) is installed, the canvas top may need re-adjustment to
align the snaps on the canvas with the snaps on the boat.
PRODUCT or PROPERTY DAMAGE HAZARD!
Take down and securely stow ALL canvas before transporting your boat by road.
CAUTION
!
NOTICE
Two people are needed to do the tasks listed below and on the following pages in this section.
F
K
C
(A) SWIVEL HINGE
J
B
I
(D) SECURING PIN (TYPICAL)
(E) END EYE (TYPICAL)
(G) HINGE (TYPICAL)
SPRING LOADED
SECURING PIN (TYPICAL)
(H)
