Bimini Top (If Equipped)

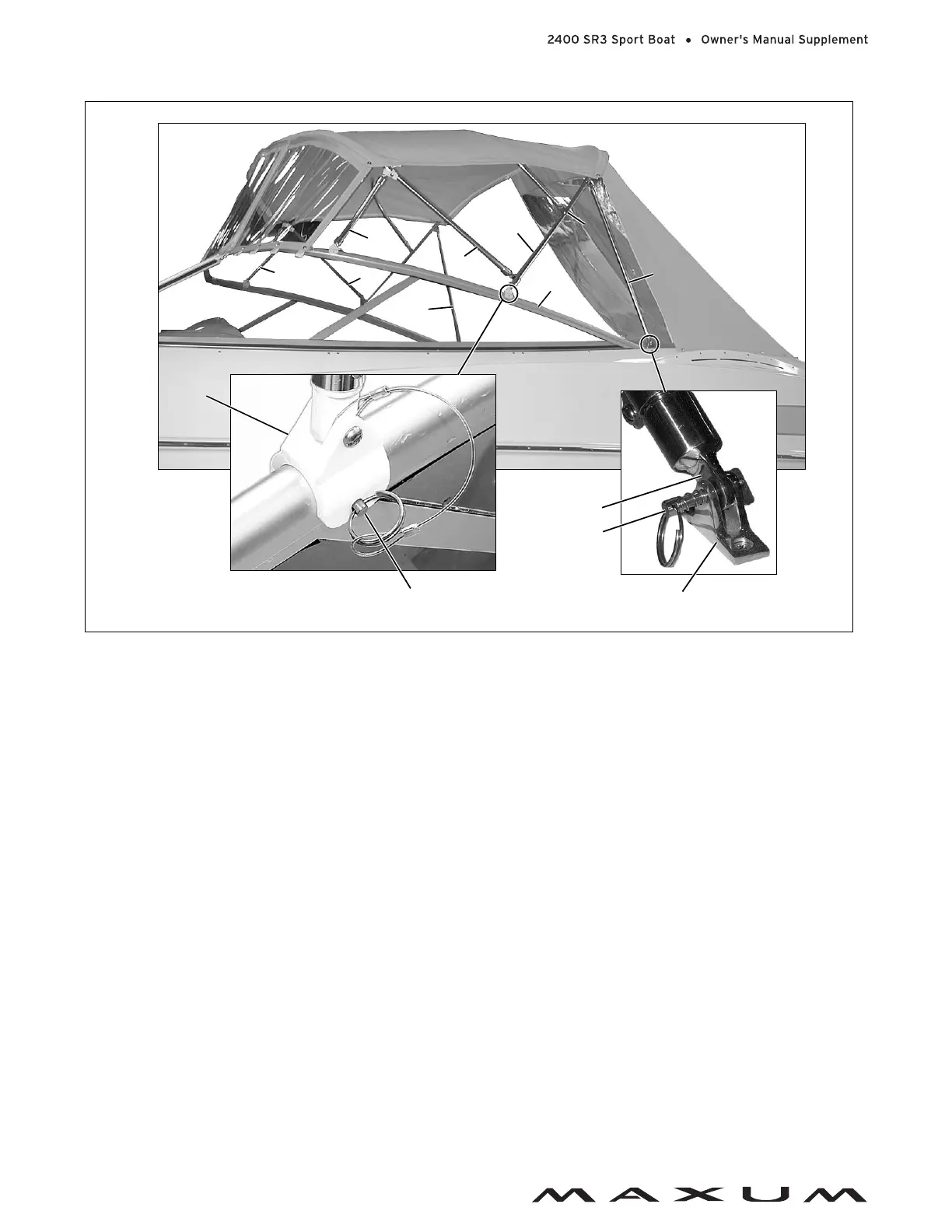

1. Slide the swivel ends (A) of the main bow (B) over the aft pre-drilled holes in the windshield frames (C) and
insert the pins (D).
2. Pull the secondary bow (E) forward and slide the swivel ends of the forward legs (F) over the forward
pre-drilled holes in the windshield frames and insert the pins.
3. Insert the end eyes (G) of the aft braces (H) into the deck hinges (I) and secure them with the pins (J).
4. No adjustments to the jawslides (K) should be needed as they are preset during manufacturing.
• Before attempting to adjust the jawslide positions, obtain correct measurements from your selling dealer.
