Chapter 10: Electrical System
48

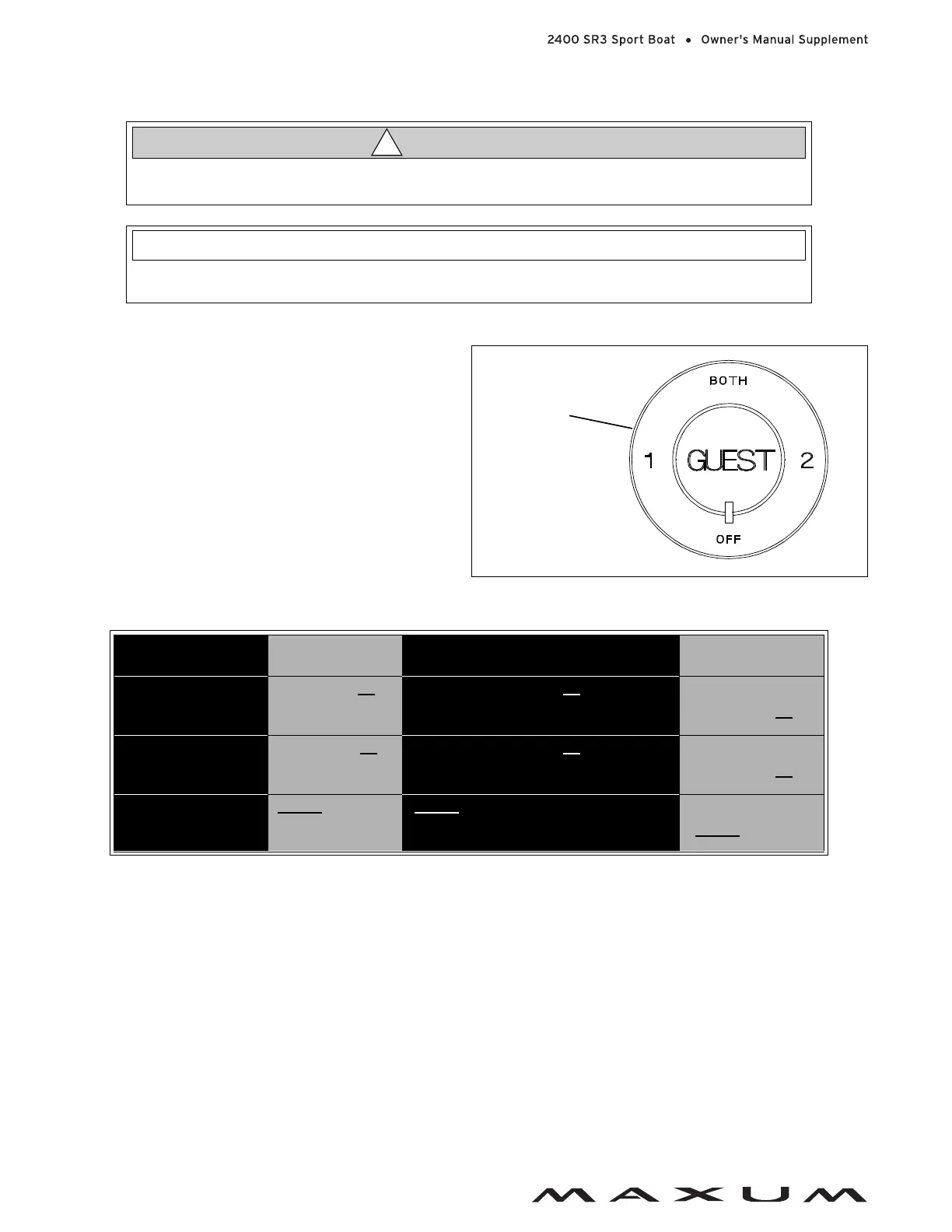

Battery Switch (If Equipped With Two Batteries)
• "Stand-by Loads", such as the the automatic bilge
pump, and the stereo memory, are not affected by the
battery switch. Stand-by loads bypass the battery
switch and are wired directly to the battery.
• Turn the battery switch to the Off position whenever
the boat will be unoccupied for long periods of time.
BATTERY SWITCH
POSITIONS
ENGINE
STARTING
ACCESSORIES & LIGHTS
ENGINE
ALTERNATOR
POSITION
"1"
Battery 1
Provides
Starting Power
Battery 1
Provides Power for
Accessories and Lights
Charges
Battery 1
POSITION
"2"
Battery 2
Provides
Starting Power
Battery 2
Provides Power for
Accessories and Lights
Charges
Battery 2
"BOTH"
POSITION
BOTH Batteries
Provide
Starting Power
BOTH Batteries Provide Power for
Accessories and Lights (not
advised unless engine is running)
Charges
BOTH Batteries
• Never disconnect the battery cables or turn Off the battery switch while the engine is run-
ning as this can cause damage to your boat’s electrical components
CAUTION
!
Since the batteries are dealer-installed. Make sure you get a full explanation of the battery
switch use from your selling dealer.
NOTICE
BATTERY
SWITCH
