Chapter 2: Components/Systems 13
4600 SCB Owner’s Manual Supplement

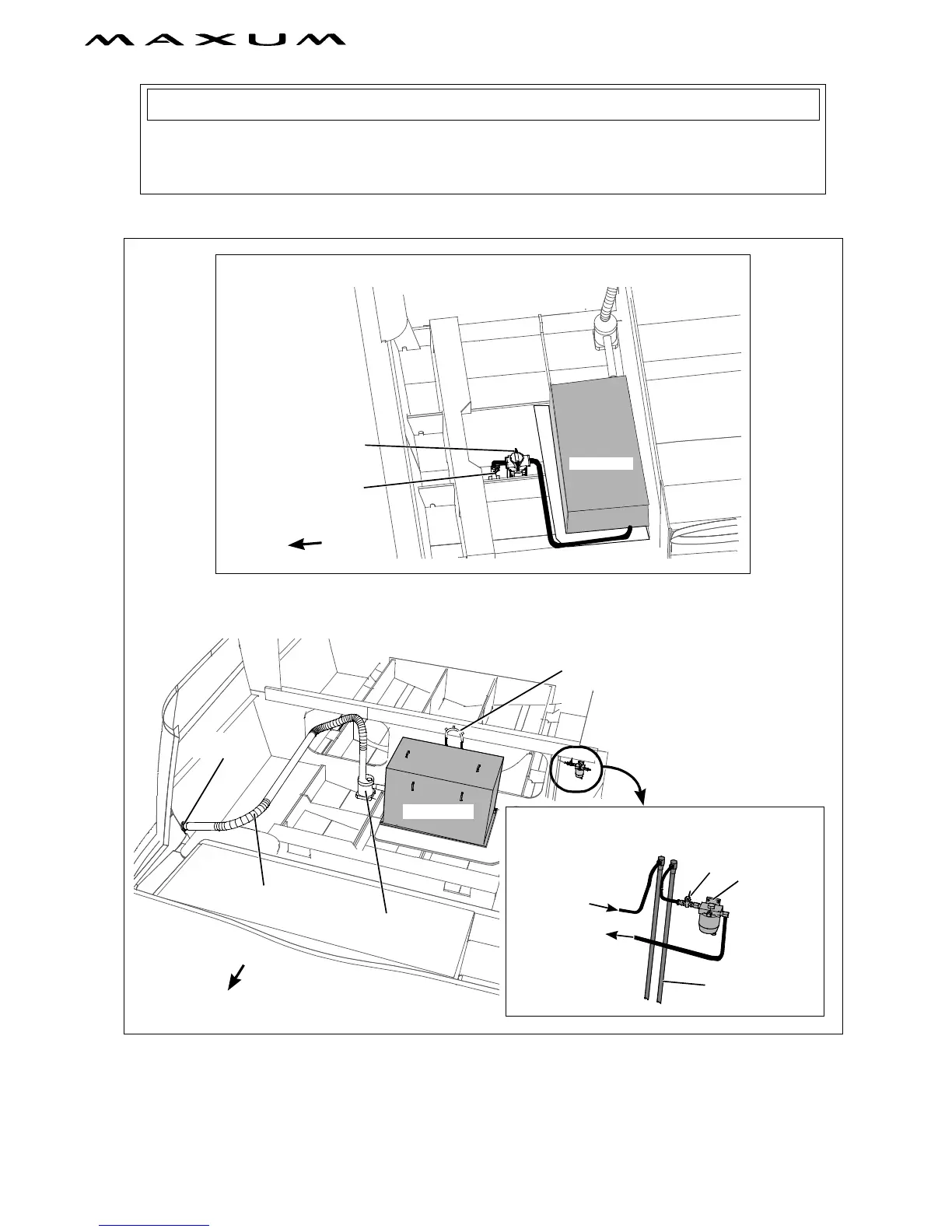

Generator Routing
If your yacht features a diesel fuel system and a fuel management board; the generator fuel
selector valves must be set so that return fuel is routed back to the SAME tank from which it
was drawn. Otherwise, generator fuel drawn from a partially full tank and returned to a full
tank may spill overboard through the tank venting system.
NOTICE
SIPHON BREAK
AFT
EXHAUST
HOSE
EXHAUST
MUFFLER
GENERATOR
TO GENERATOR
FUEL
RETURN
FUEL FILTER
FUEL
SHUT-OFF
VALVE
STARBOARD
TANK WITHDRAWAL
DETAILED VIEW OF FUEL FILTER ROUTING
SEACOCK
GENERATOR
AFT
RAW WATER STRAINER
WATER PICK-UP ROUTING
TO EXHAUST
THRU-HULL
FUEL FILTER & EXHAUST ROUTINGS
