24 Chapter 2: Components/Systems
4600 SCB Owner’s Manual Supplement

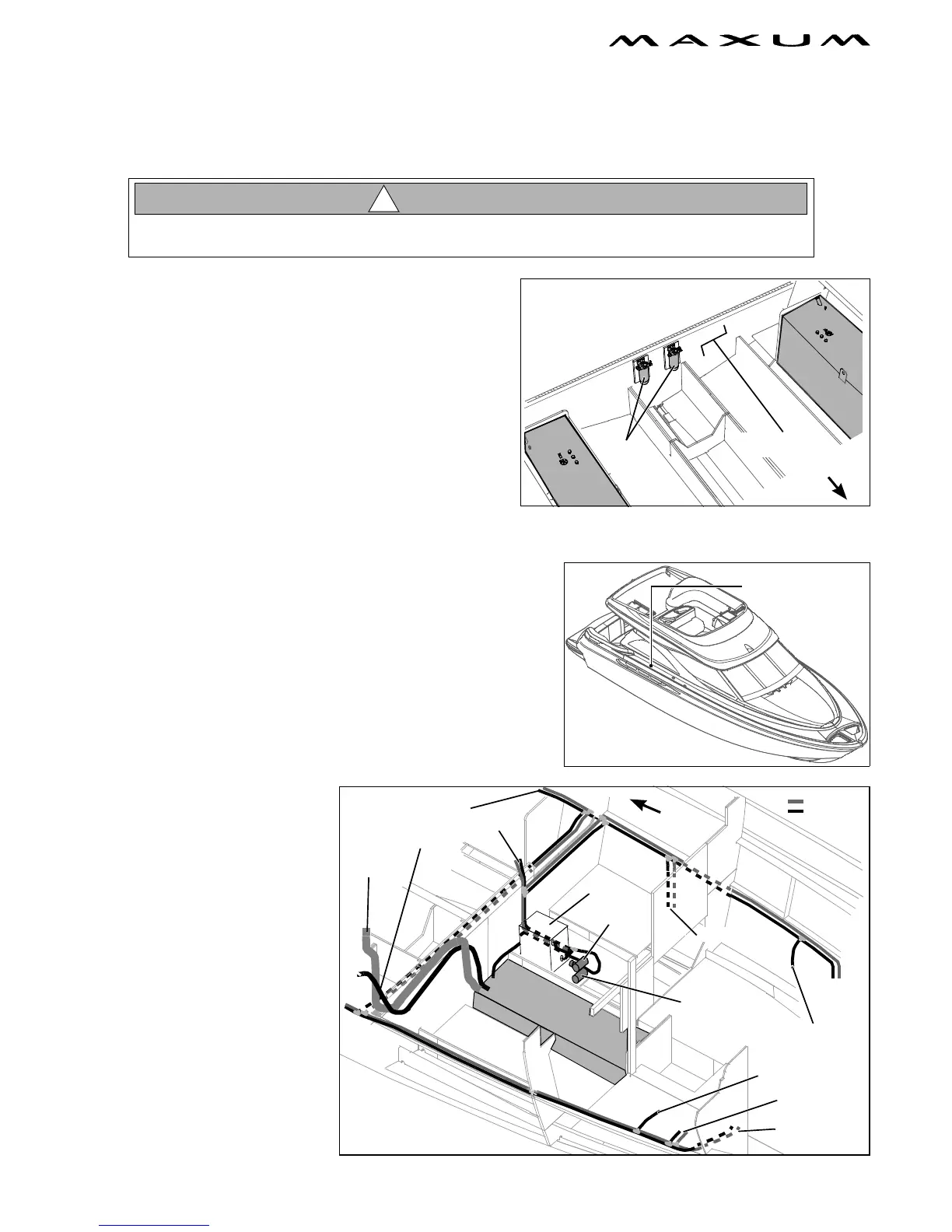

Fuel Transfer Pump (Diesel Only)
Yachts without a fuel management board are equipped with a fuel transfer pump. The fuel transfer pump is used to
transfer fuel from a full tank to a nearly empty tank. The pump is activated by the using the fuel transfer switch,
located at the upper helm station.
Fuel Filters & Water Separators
Fuel filters and water separators should be inspected periodi-
cally for debris and replaced according to the guidelines and
instructions detailed in your engine manual, generator manual
and in the filter literature.
Freshwater System
Your is equipped with a pressure-demand (potable) freshwater system.
• When not connected to a dockside water supply, the water pump’s
DC breaker must be turned ON to use freshwater.
• The water pump’s DC breaker should be turned OFF when any of
the following occurs:
3 When the boat is not in use.
3Whenever the water tank is empty.
3 When connected to a dockside water supply.
• The water tank fill fitting is located on the starboard side deck. The
city water inlet is located on the starboard side of the aft cockpit.
• The water tank is equipped with a
water level indicator located on the
AC panel. The indicator may not
be 100% accurate, so it is recom-
mended that the water tank be
topped off at every opportunity to
avoid the possibility of running
short of freshwater.
• A pressure accumulator tank is
installed in the freshwater system.
The pressure accumulator tank
assists the pressure pump by reduc-
ing on/off cycling and distributing
an even flow of water.
ENVIRONMENTAL HAZARD! NEVER transfer fuel into a full (or nearly full) fuel tank. Fuel
transferred into a full tank may spill overboard through the tank venting system.
CAUTION!
!
FUEL
FILTERS
TYPICAL FUEL
PORT
FUEL TANK
STARBOARD
FUEL TANK
PORT
FUEL TANK
STARBOARD
FUEL TANK
AFT
ENGINE ROOM
BULKHEAD
FILTER LOCATIONS
WATER TANK FILL,
DECK FITTING
WATER FILL LOCATION
GALLEY
TO ICE MAKER &
WATER
PRESSURE
STARBOARD TOILET
PORT TOILET
STARBOARD
STARBOARD
(VACUFLUSH OPTION)
HEAD SINK
HEAD SHOWER
WATER
HEATER
ACCUMULATOR
TANK
PUMP &
FILTER
FROM WATER
TANK TO VENT
= HOT
= COLD
SINK
(VACUFLUSH OPTION)
PORT HEAD TUB
SINK
AFT
WATER
FRESHWATER
TANK
PORT HEAD
FRESHWATER
TANK
FILL HOSE
TRANSOM SHOWER
FRESHWATER SYSTEM
ROUTING - FORWARD
