Chapter 2: Components/Systems 29
4600 SCB Owner’s Manual Supplement
Vacuflush Head System (Option)
•
The optional vacuflush head system uses freshwater (not raw water) to flush waste from the toilet to the holding
tank.
• If the system is equipped with a macerator pump, waste may be pumped from the holding tank into the water
through an underwater discharge seacock (where regulations permit). The macerator switches are located at the
helm station and must both be pressed simultaneously for pumping to occur.
• If your yacht does not include a macerator (macerator delete option), waste can only be pumped out of the holding
tank to the receptacle on the deck for dockside pump-out only.
Air Conditioning & Heating (Option)
Your yacht may be equipped with an optional air conditioning & heating system. Both heating and cooling are con-
trolled from the same panel. Please refer to the air conditioner/heater manual for detailed operating instructions.
• Before operating the air conditioning and heating system, make sure the breakers on the AC main distribution
panel are activated and verify the system’s raw water pickup seacock is OPEN. The seacock must remain OPEN
anytime the air conditioner/heater is in use.
• The raw water pickup strainer should be checked periodically for debris according to the directions given in the
Raw Water Strainer section of this supplement.
PORT VACUUM
GENERATOR
HEAD
WASTE
FROM PORT
WASTE FROM
STBD. HEAD
MACERATOR
UNDERWATER
DISCHARGE
SEACOCK
REDUCING
ADAPTER
DECK FITTING
TO DOCKSIDE PUMP-OUT
VACUUM
GENERATOR
FROM WATER
TANK TO HEAD
THRU-HULL
VENT TO
TANK
HOLDING TANK FILTER
FRESHWATER
TO HEAD
AFT
HOLDING
TANK
Y-FITTING
VACUUM
GENERATOR
VACUUM GENERATOR
WASTE FROM
STARBOARD HEAD
HOLDING
FROM WATER
TANK TO HEAD
HOLDING
TANK FILTER
FRESHWATER
TO HEAD
TO THRU-HULL
VENT TO
HOLDING TANK
WASTE FROM
PORT HEAD
AFT
TANK
Y-FITTING
TO DOCKSIDE PUMP-OUT

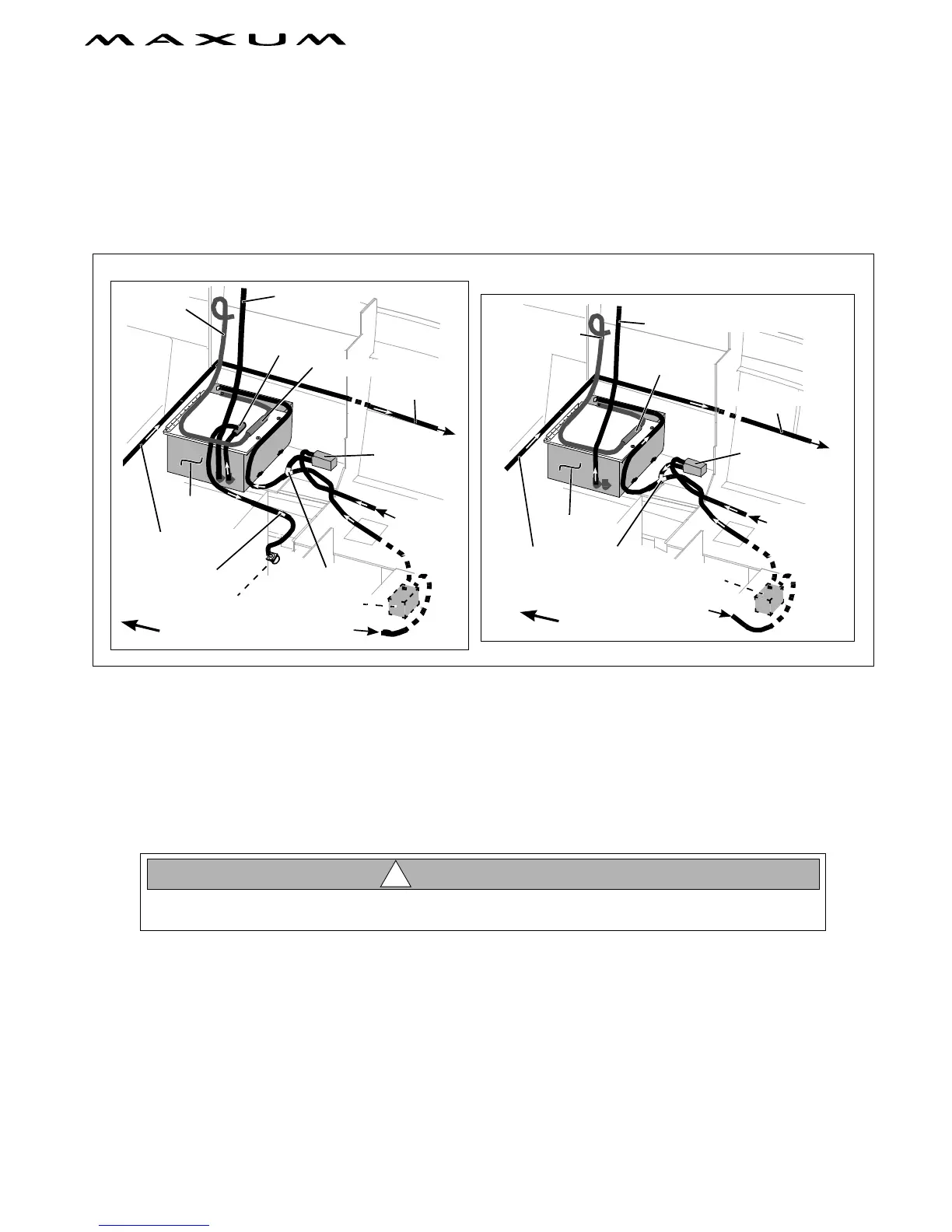

OPTIONAL VACUFLUSH ROUTING VACUFLUSH OPTION & MACERATOR
DELETE OPTION ROUTING
SYSTEM DAMAGE HAZARD! The air conditioning system’s seacock must be OPENED
before turning on an air conditioning unit and must remain open during operation.
CAUTION!
!
