Chapter 3: Electrical Routings
AC Wiring

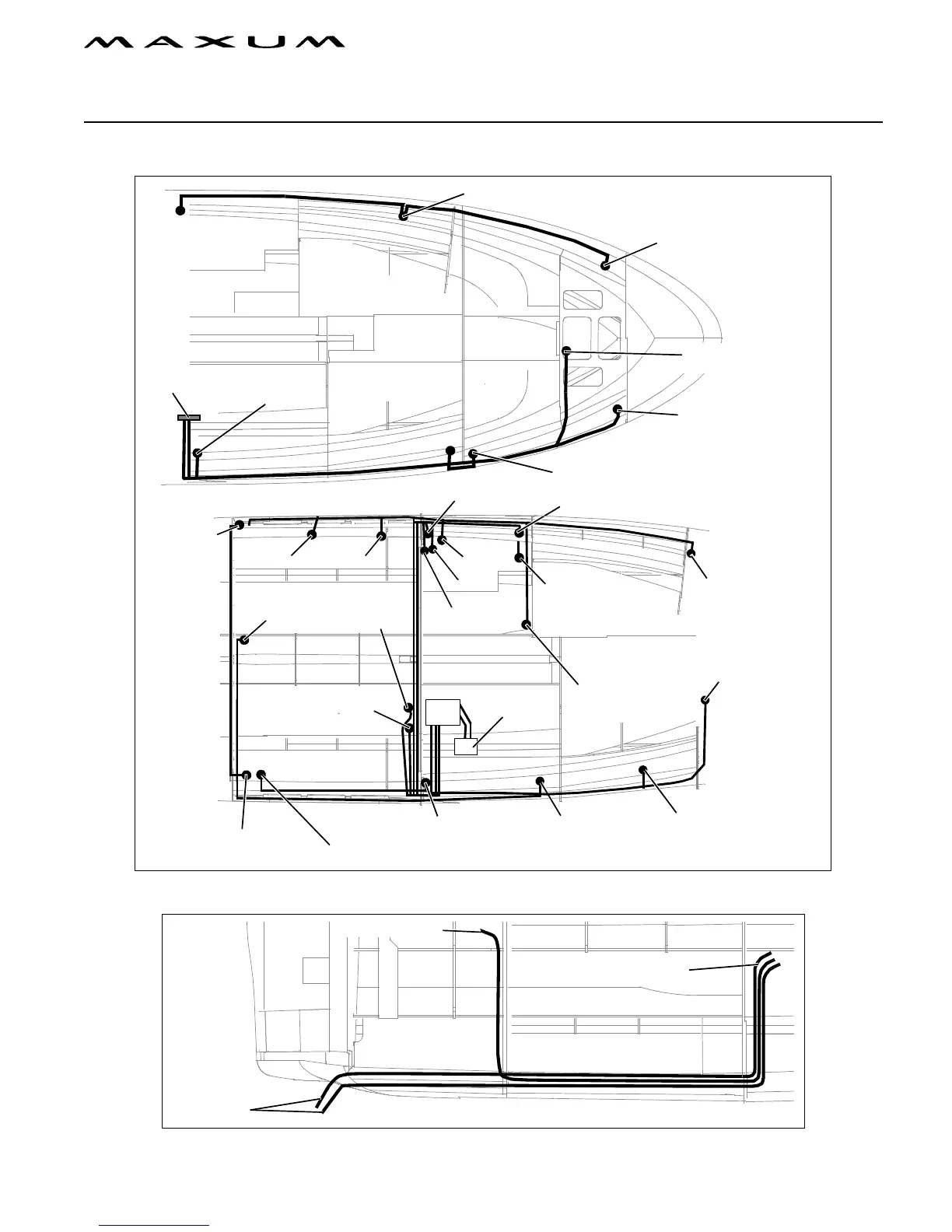

Shore Power/Generator Harnesses
TO MID
BERTH GFCI
FROM AFT V/BERTH
RECEPTACLE TO FORWARD
FROM GALLEY GFCI TO PORT HEAD
V-BERTH RECEPTACLE
FROM PORT HEAD
TO PORT FORWARD
RECEPTACLE
AC PANEL
FROM STARBOARD HEAD
TO AFT V-BERTH RECEPTACLE
FROM AC PANEL TO AFT
AIR CONDITIONING UNIT
FROM STEREO TO
SUB WOOFER
MID BERTH GFCI
TO STARBOARD HEAD
DINETTE GFCI
BATTERY
VACUUM UNIT
RELAY TO
RELAY FROM FORWARD
SALON TV
ICE MAKER
COFFEE MAKER
GALLEY GFCI
BLENDER
FORWARD
STOVE
CHARGER
TV (OPTION)
REFRIGERATOR
SALON
STEREO
AC
PANEL
INVERTER
(OPTION)
PUMP
& AFT AIR CONDITION
UNIT AND PANEL (OPTION)
CONVECTION
OVEN
FROM AC PANEL
AIR CONDITION
(OPTION)
(OPTION)
FROM AC PANEL TO
FORWARD AIR CONDITIONING
UNIT (OPTION)
(OPTION)
FROM DINETTE GFCI TO
AFT SALON RECEPTACLE
TO FORWARD
UNIT (OPTION)
(OPTION)
FROM SHORE
POWER INLETS
TO AC PANEL
FROM GENERATOR
