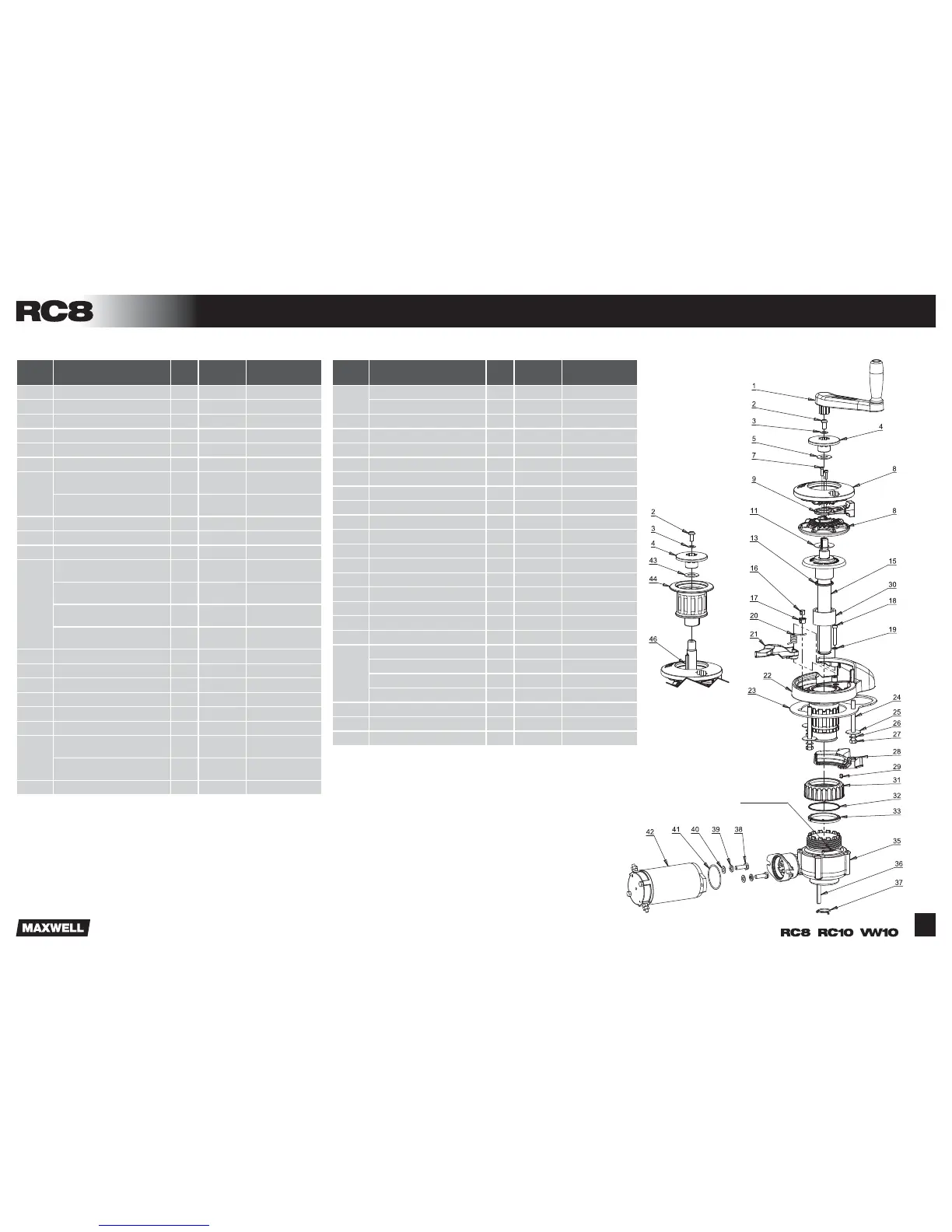

Maxwell RC8 - RC8; 7.4 Windlass Parts RC8 Model

32
User’s Manual • Benutzerhandbuch • Manuel d’Utilisation du Treuil • Manual del Usuario • Gebruikershandleiding • Manuale Utente
Drainage Slot
Capstan Parts
Item
no
Component Description Qty
Part
no
Kit
1 Handle 1 P103864
2 Cap Screw - M8 x 16 1 SP4505
3 Washer 1 SP0428
4 Clutch Nut 1 4376C
5 Tab Washer 1 4220
7 Cap Screw 2 SP0178
8
Chainwheel - 6-7mm-1/4" 1 P103310
Pre-Assembled
Kit
Chainwheel - 8mm-5/16" 1 P103311
Pre-Assembled
Kit
9 Stripper 1 7010
11 Belleville Washer 1 SP0484
13 Quad Ring 1 SP2758
15
Shaft – 65 TDC 1 P100016
Pre-Assembled
Kit
Shaft – 65 TDC - Capstan 1 P100017
Pre-Assembled
Kit
Shaft – 165 TDC 1 P100047
Pre-Assembled
Kit
Shaft – 165 TDC - Capstan 1 P100048
Pre-Assembled
Kit
16 Plug 1 SP3519
17 Bush 1 SP3518
18 Cap Screw - M6 x 40 1 SP0159 P104711
19 Spring Washer – M6 1 SP0474 P104711
20 Pressure Arm Spring 1 7037 P104711
21 Pressure Arm 1 7009 P104711
22
Deckplate Assembly -
65 TDC
1 P104714
Pre-Assembled
Kit
Deckplate Assembly -
165 TDC
1 P104715
Pre-Assembled
Kit
23 Gasket 1 7076
Item
no
Component Description Qty
Part
no
Kit
24
Stud – M8 – 65 TDC 3 4281
Stud – M8 – 165 TDC 3 4359
25 Flat Washer 3 3597 P101660
26 Spring Washer – M8 3 SP0467 P101660
27 Hx. Hd. Nut – M8 3 SP0366 P101660
28 Deck Insert 1 7008
29 Nylon Rivet 1 SP0536
30 Bearing 1 4218
31 Locknut 1 4257 P100088
32 O-Ring 1 SP2751 P100088
33 Collar 1 4258 P100088
35 Gearbox 1 P100900
36 Key 1 6340 P101660
37 Quick Release Clip 1 4547 P101660
38 Bolt - M8 x 25 2 SP0288 P12487
39 Spring Washer – 5/16" 2 SP0467 P12487
40 Flat Washer 2 SP0413 P12487
41 O-Ring 1 SP2787 P12487
42
Motor - 12V - 600W 1 P10068
Motor - 24V - 600W 1 P10069
Motor - 12V - 1000W 1 P12072
Motor - 24V - 1000W 1 P12074
43 Flat Washer 1 SP0421
44 Capstan 1 4170
46 Key 1 3462
7.4 Windlass Parts RC8 Model • Ankerwinde-Teile Modell RC8 • Composants du Treuil Modèle RC8
Piezas del Molinete, Modelo RC8 • Ankerlieronderdelen Model RC8 • Parti dell’rgano Salpancora Modello RC8
