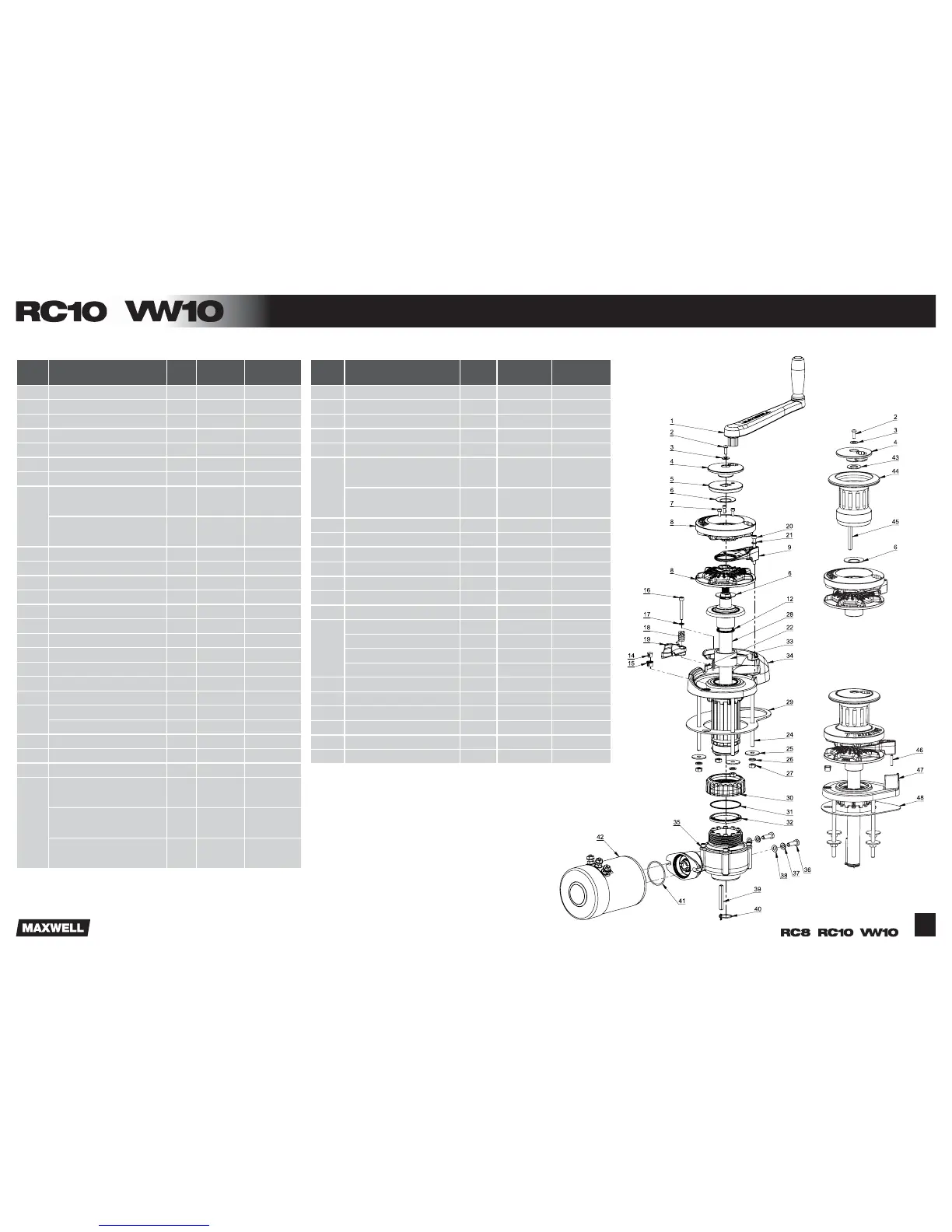

Maxwell RC8 - RC10 W10; 7.6 Windlass Parts RC10;VW10 Model

35
User’s Manual • Benutzerhandbuch • Manuel d’Utilisation du Treuil • Manual del Usuario • Gebruikershandleiding • Manuale Utente
Item
no
Component Description Qty
Part
no
Kit
1 Handle 1 P103864
2 Cap Screw - M8 x 16 1 SP4505
3 Washer 1 SP0428
4 Clutch Nut 1 6914
5 Clutch Cone - Upper 1 6090
6 Belleville Washer 2 SP0488
7 Cap Screw 3 SP4503
8
Chainwheel - 8mm-5/16" 1 P103308
Pre-
Assembled
Kit
Chainwheel - 10mm-3/8” 1 P103309
Pre-
Assembled
Kit
9 Stripper 1 6915
12 Quad Ring 1 SP2758
14 Plug 1 SP3519
15 Bush 1 SP3518
16 Cap Screw - M6 x 45 1 SP4501 P104711
17 Spring Washer 1 SP0474 P104711
18 Spring 1 7037 P104711
19 Pressure Arm 1 7009 P104711
20 Cap Screw - M6 x 60 1 SP4502
21 Spring Washer 1 SP0474
22 Pin 1 SP0545 P104733
24
Stud - 50TDC 4 4281
Stud - 100TDC 4 5256
25 Flat Washer 4 3597 P101668
26 Spring Washer 4 SP0467 P101668
27 Nut M8 4 SP0366 P101668
28
Shaft Assembly-
50TDC - Capstan
1 P104703
Pre-
Assembled
Kit
Shaft Assembly -
100TDC
1 P104700
Pre-
Assembled
Kit
Shaft Assembly -
100TDC - Capstan
1 P104701
Pre-
Assembled
Kit
Item
no
Component Description Qty
Part
no
Kit
29 Deckplate Gasket 1 7040
30 Locknut 1 4257 P100088
31 O-Ring 1 SP2751 P100088
32 Collar 1 4258 P100088
33 Bearing 1 4218
34
Deckplate Assembly –
50 TDC
1 P104721
Pre-
Assembled
Kit
Deckplate Assembly -
100TDC
1 P104722
Pre-
Assembled
Kit
35 Gearbox - 56:1 1 P102730
36 Bolt M8x25 2 SP0288 P12487
37 Spring Washer 2 SP0467 P12487
38 Flat Washer 2 SP0413 P12487
39 Key 1 6340 P101668
40 Quick Release Clip 1 4547 P101668
41 O-Ring 1 SP2787 P12487
42
Motor - 12V - 1000W 1 P12072
Motor - 24V - 1000W 1 P12074
Motor - 12V - 1200W 1 P12073
Motor - 24V - 1200W 1 P12074
43 Flat Washer 1 SP0421
44 Capstan 1 7074
45 Key - Capstan 1 6340
46 Tension Pin 1 SP0551
47 Deckplate 10 VW 1 7416
48 Gasket 10 VW 1 7624
Capstan
Arrangement
VW10
Arrangement
7.6 Windlass Parts RC10/VW10 Model • Ankerwinde-Teile Modell RC10/VW10 • Components du Treuil Modèle RC10/VW10
Piezas del Molinete, Modelo RC10/VW10 • Ankerlieronderdelen Model RC10/VW10 • Parti dell’argano Salpancora Modello RC10/VW10
